Detailed commissioning steps
21

Delete the device on Person Machine Interface

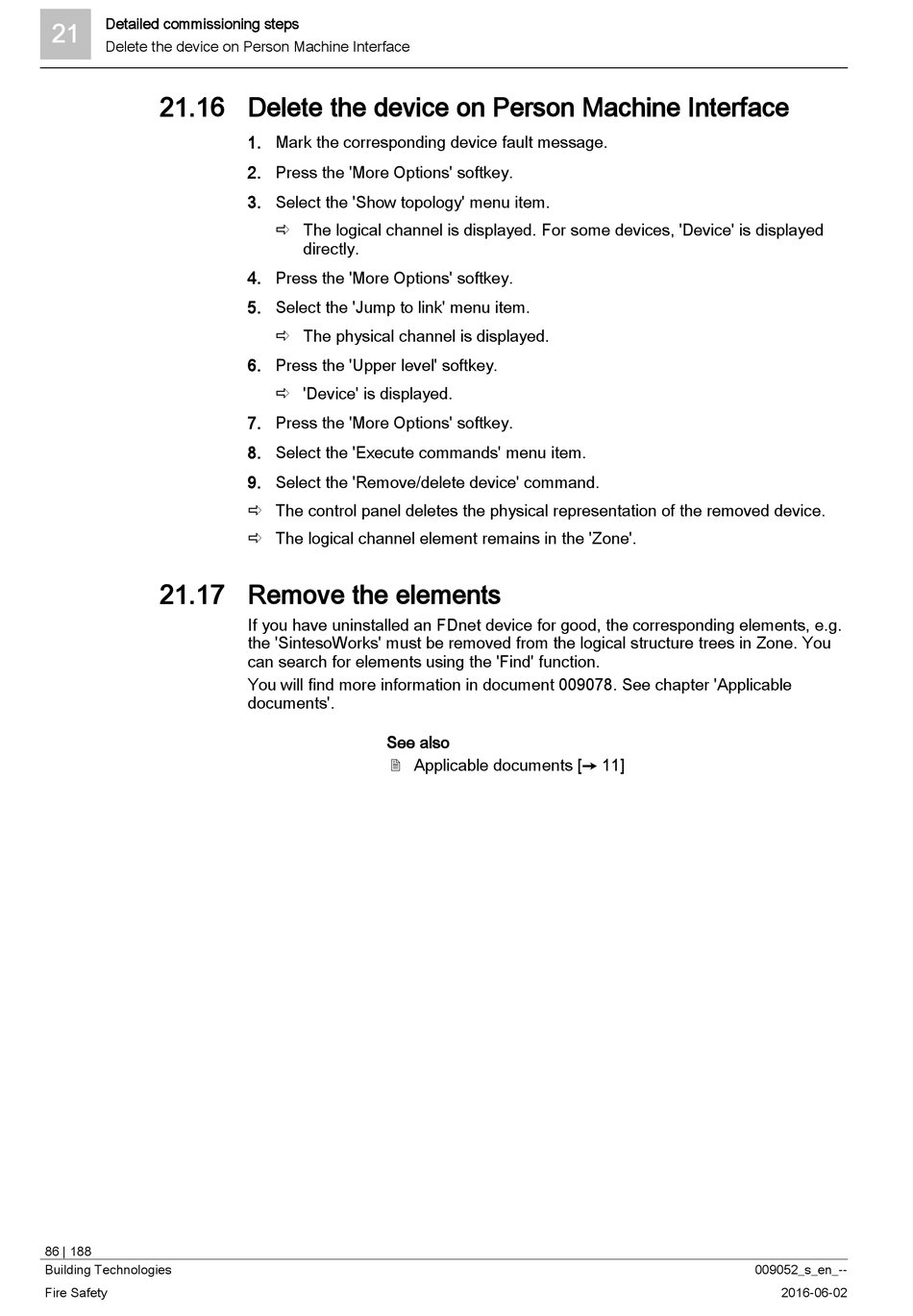

21.16 Delete the device on Person Machine Interface

21.17 Remove the elements

86 | 188
Building Technologies
Fire Safety
1. Mark the corresponding device fault message.
2. Press the 'More Options' softkey.
3. Select the 'Show topology' menu item.
 The logical channel is displayed. For some devices, 'Device' is displayed
directly.
4. Press the 'More Options' softkey.
5. Select the 'Jump to link' menu item.
 The physical channel is displayed.
6. Press the 'Upper level' softkey.
 'Device' is displayed.
7. Press the 'More Options' softkey.
8. Select the 'Execute commands' menu item.
9. Select the 'Remove/delete device' command.
 The control panel deletes the physical representation of the removed device.
 The logical channel element remains in the 'Zone'.
If you have uninstalled an FDnet device for good, the corresponding elements, e.g.
the 'SintesoWorks' must be removed from the logical structure trees in Zone. You
can search for elements using the 'Find' function.
You will find more information in document 009078. See chapter 'Applicable
documents'.
See also
1 Applicable documents [➙ 11]
