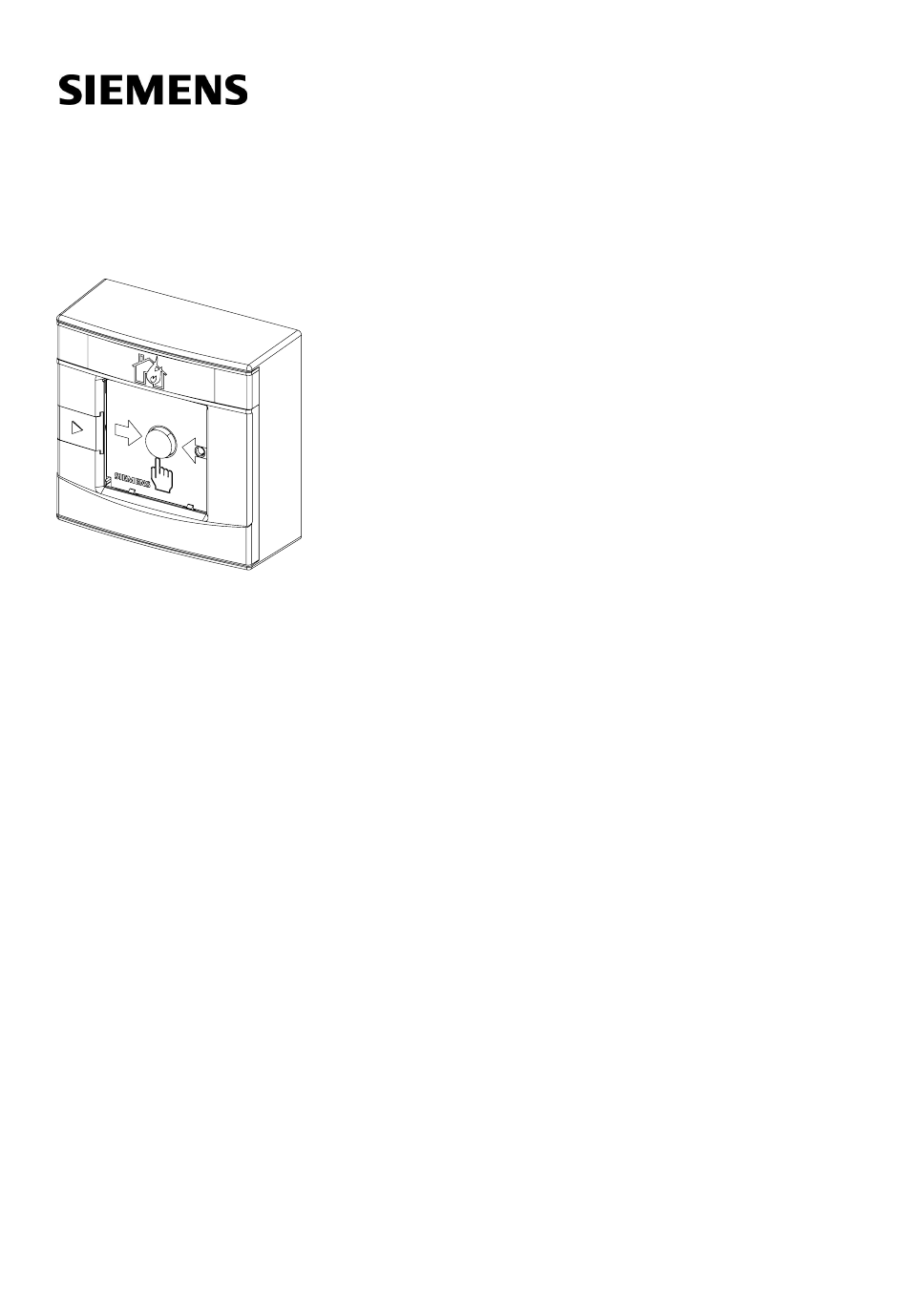

  • Page 1 FDM273 Radio manual call point Mounting Building Technologies A6V10347888_a_en_-- 2013-09-01 Control Products and Systems...
  • Page 2: Legal Notice

    Legal notice Technical specifications and availability subject to change without notice. © 2013 Copyright by Siemens Switzerland Ltd Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited.
  • Page 3: Table Of Contents

    Table of contents About this document ..................5 Mounting and installation ................6 Preparation .......................6 Installing the housing ..................7 Installation ......................8 2.3.1 Internal alarm indicator..............10 Installing the protective cover ................12 Inserting the label ................... 13 Details for ordering ..................14 Switching unit FDME273 .................
  • Page 4 About this document Building Technologies A6V10347888_a_en_-- Fire Safety 2013-09-01...
  • Page 5: About This Document

    1 About this document Overview The FDM273 radio manual call point is intended for use in areas of a house where a fire can be detected by people who can manually trigger an alarm. The FDM273 radio manual call point consists of a housing, a switching unit, and a battery pack.
  • Page 6: Mounting And Installation

    Mounting and installation Preparation 2 Mounting and installation 2.1 Preparation Secure the housing at a height of 1.3…1.6 m on an even surface. Observe the country-specific regulations for the exact installation height! 180° Opening the housing and identifying the screw holes 1 Screw opening 3 Break-out points 2 Label...
  • Page 7: Installing The Housing

    Mounting and installation Installing the housing 2.2 Installing the housing 2,5 ... 3 mm >8 mm Example of securing onto the substructure using two screws The Housing FDMH273-R is ready for installation. See the chapter 'Preparation'. Screw the housing securely onto the substructure using two screws. The housing has been installed.
  • Page 8: Installation

    2. Remove the adhesive label with the serial number from the type plate on the switching unit. Use the adhesive label to mark the position of the radio manual call point FDM273 on the device location plan. 3. Turn over the window sign if necessary, or use a different one.
  • Page 9 Mounting and installation Installation 5. Lay the connection cable according to the diagram and connect the battery connector (3). When the battery connector is connected, the internal alarm indicator (9) lights up red for five seconds (see flashing pattern number 0 Internal alarm indicator).
  • Page 10: Internal Alarm Indicator

    Mounting and installation Installation 2.3.1 Internal alarm indicator The internal alarm indicator LED has two colors and shows the operating condition of the radio manual call point. Internal alarm indicator The operating conditions are indicated by flashing patterns, as outlined in the figure below: 2 sec 1 sec...
  • Page 11 Mounting and installation Installation Several operating conditions may be indicated at the same time. This may lead to the flashing patterns overlapping one another. The red LED indicator has priority over the green LED indicator. Flashing patterns with a higher frequency will overlap those with a lower frequency, which means that the latter may no longer be discernible.
  • Page 12: Installing The Protective Cover

    Mounting and installation Installing the protective cover 2.4 Installing the protective cover If a protective cover (accessories) is used, proceed as follows: A compatible protective cover is available. See the chapter 'Accessories'. 1. Open the door of the manual call point. 2.
  • Page 13: Inserting The Label

    Mounting and installation Inserting the label 2.5 Inserting the label Only use the label if local regulations require the manual call point to be labeled in this way. The appropriate label (printed on both sides) is available. 1. Open the door and lift the transparent cover to the side. 2.
  • Page 14: Details For Ordering

    Battery connector with protection against polarity reversal Inscription field for commissioning date Compatible with: – Radio gateway FDCW241 – Radio manual call point FDM273 – Radio manual call point FDM275 – Radio fire detector FDOOT271 Order no.: S54370-Z11-A1 Building Technologies...
  • Page 15: Key Dmz1195

    For opening doors on manual call points Compatible with: – Manual call point FDM223 – Manual call point FDM224 – Radio manual call point FDM273 Order no.: BPZ:4851910001 3.5 Glass insert DMZ1196-AC For alarm activation and protection against soiling Compatible with: – Manual call point FDM223 –...
  • Page 16: Specifications

    -10…+55 °C Storage temperature -30…+75 °C Air humidity 95 % rel. Protection categories according to EN 60529 / IEC 60529: IP44 FDM273 housing FDMH273-R without seal DMZ1197-AD Electromagnetic compatibility: 10 kHz…100 kHz 160 V/m 100 kHz…2.5 GHz 30 V/m Building Technologies...
  • Page 17: Dimensions

    European standards EN 54-11 EN 54-25 EN 300220-2 EN 301489-3 EN 60950 Siemens standards SN 36350 4.2 Dimensions Radio manual call point FDM273 4.3 Master gauge for recesses Radio manual call point FDM273 61.5 37.5 37.4 61.8 27.8 Building Technologies...
  • Page 18: Environmental Compatibility And Disposal

    Specifications Environmental compatibility and disposal 4.4 Environmental compatibility and disposal This device is manufactured using materials and procedures which comply with current environmental protection standards as best as possible. More specifically, the following measures have been undertaken: Use of reusable materials Use of halogen-free plastics Electronic parts and synthetic materials can be separated Larger plastic parts are labeled according to ISO 11469 and ISO 1043.
  • Page 19 Specifications Environmental compatibility and disposal Building Technologies A6V10347888_a_en_-- Fire Safety 2013-09-01...
