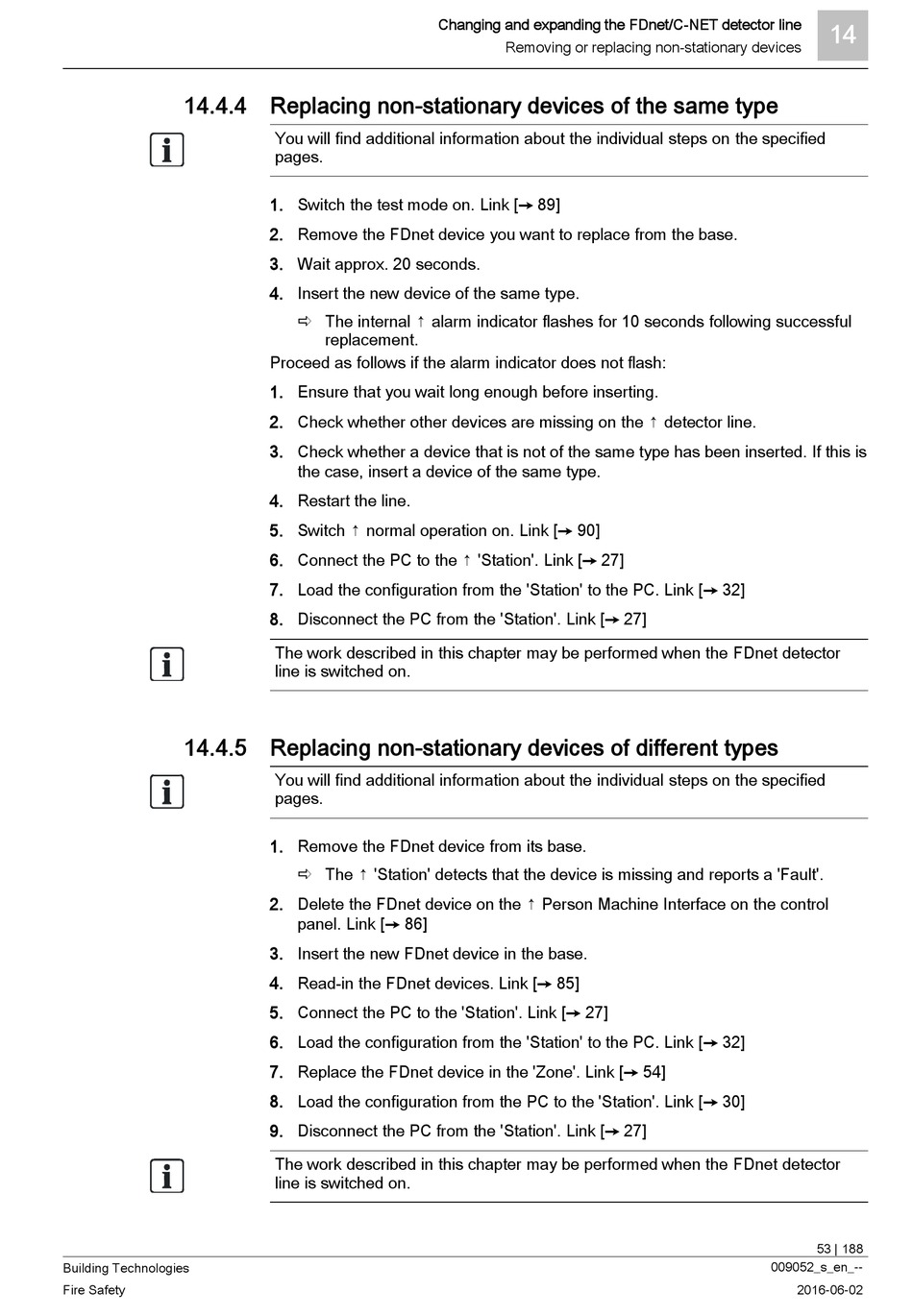

14.4.4 Replacing non-stationary devices of the same type

14.4.5 Replacing non-stationary devices of different types

Building Technologies
Fire Safety
Changing and expanding the FDnet/C-NET detector line
You will find additional information about the individual steps on the specified
pages.
1. Switch the test mode on. Link [➙ 89]
2. Remove the FDnet device you want to replace from the base.
3. Wait approx. 20 seconds.
4. Insert the new device of the same type.
 The internal ↑ alarm indicator flashes for 10 seconds following successful
replacement.
Proceed as follows if the alarm indicator does not flash:
1. Ensure that you wait long enough before inserting.
2. Check whether other devices are missing on the ↑ detector line.
3. Check whether a device that is not of the same type has been inserted. If this is
the case, insert a device of the same type.
4. Restart the line.
5. Switch ↑ normal operation on. Link [➙ 90]
6. Connect the PC to the ↑ 'Station'. Link [➙ 27]
7. Load the configuration from the 'Station' to the PC. Link [➙ 32]
8. Disconnect the PC from the 'Station'. Link [➙ 27]
The work described in this chapter may be performed when the FDnet detector
line is switched on.
You will find additional information about the individual steps on the specified
pages.
1. Remove the FDnet device from its base.
 The ↑ 'Station' detects that the device is missing and reports a 'Fault'.
2. Delete the FDnet device on the ↑ Person Machine Interface on the control
panel. Link [➙ 86]
3. Insert the new FDnet device in the base.
4. Read-in the FDnet devices. Link [➙ 85]
5. Connect the PC to the 'Station'. Link [➙ 27]
6. Load the configuration from the 'Station' to the PC. Link [➙ 32]
7. Replace the FDnet device in the 'Zone'. Link [➙ 54]
8. Load the configuration from the PC to the 'Station'. Link [➙ 30]
9. Disconnect the PC from the 'Station'. Link [➙ 27]
The work described in this chapter may be performed when the FDnet detector
line is switched on.
