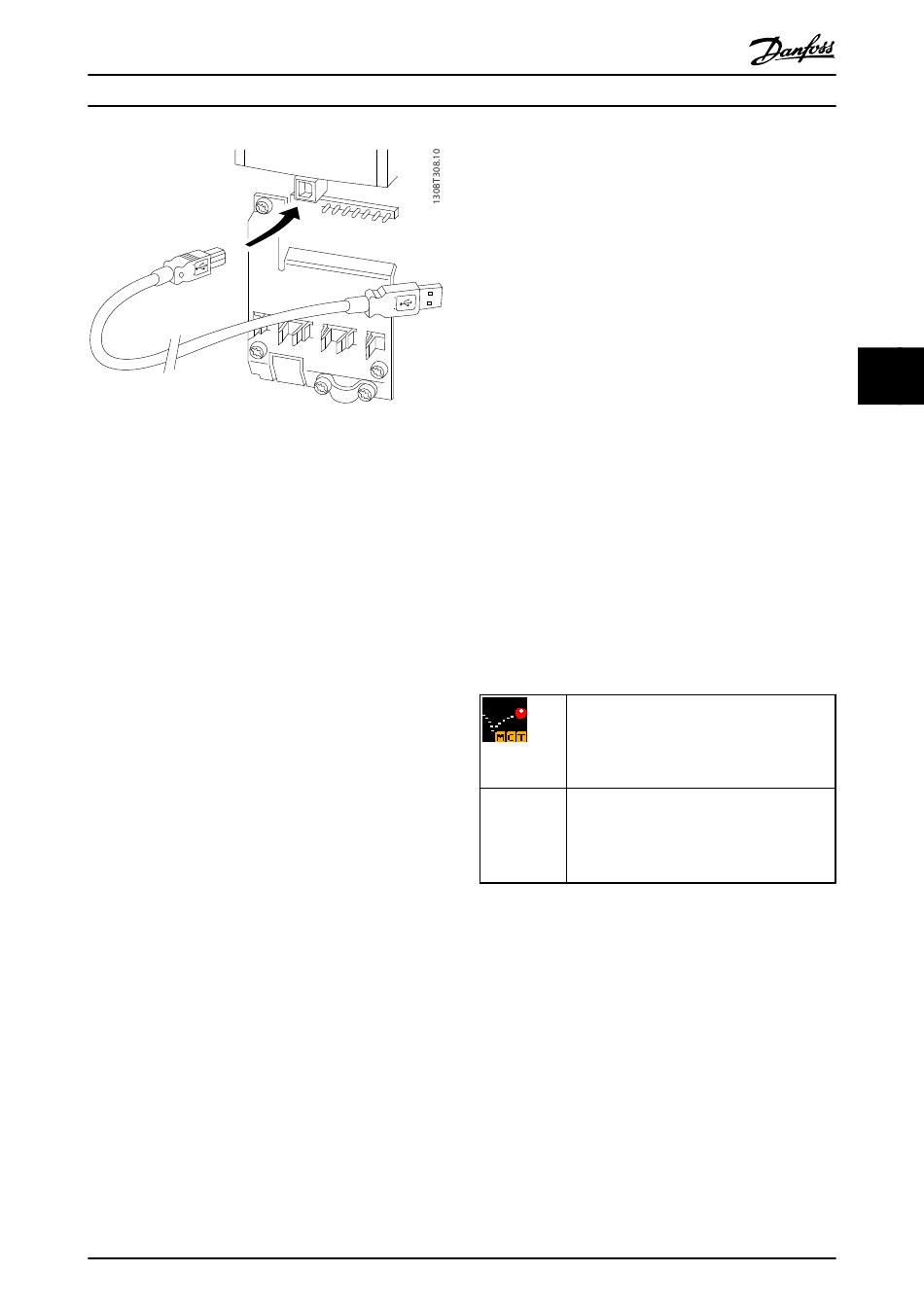

Illustration 5.19 USB Connection to Frequency Converter

5.1.13 PC Software Tools

PC-based MCT 10 Set-up Software
All frequency converters are equipped with a serial
communication port. Danfoss provides a PC tool for
communication between PC and frequency converter.
Check the section on for detailed information on this tool.
MCT 10 Set-up Software
MCT 10 Set-up Software has been designed as an easy to
use interactive tool for setting parameters in our frequency
converters.
The MCT 10 Set-up Software is useful for:
•
Planning a communication network off-line. MCT
10 Set-up Software contains a complete
frequency converter database.
•
Commissioning frequency converters on line.
•
Saving settings for all frequency converters.
•
Replacing a frequency converter in a network.
•
Simple and accurate documentation of frequency
converter settings after commissioning.
•
Expanding an existing network.
•
Future developed frequency converters are
supported.
MCT 10 Set-up Software supports Profibus DP-V1 via a
master class 2 connection. It enables online reading/
writing of parameters in a frequency converter via the
Profibus network. This network eliminates the need for an
extra communication network.
Save frequency converter settings:
1. Connect a PC to the unit via USB com port.
(NOTE: Use a PC, which is isolated from the
MG20Y202
Operating Instructions
2.
3.
4.
All parameters are now stored in the PC.
Load frequency converter settings:
1.
2.
3.
4.
5.
All parameter settings are now transferred to the
frequency converter.
A separate manual for MCT 10 Set-up Software is available
from www.Danfoss.com/BusinessAreas/DrivesSolutions/
Softwaredownload/DDPC+Software+Program.htm.
The MCT 10 Set-up software modules
The following modules are included in the software
package.
Table 5.2
Ordering number:
Order the CD containing MCT 10 Set-up Software using
code number 130B1000.
The software can be downloaded from the Danfoss
internet site www.Danfoss.com/BusinessAreas/DrivesSo-
lutions/Softwaredownload/DDPC+Software+Program.htm
Danfoss A/S © Rev. 06/2014 All rights reserved.
mains, with the USB port. Failure to do so may
damage equipment.).
Open MCT 10 Set-up Software.
Select Read from drive.
Select Save as.
Connect a PC to the frequency converter via USB
com port.
Open MCT 10 Set-up Software.
Select Open – stored files are shown.
Open the appropriate file.
Select Write to drive.
MCT Set-up 10 Software
Setting parameters
Copy to and from frequency converters
Documentation and print of parameter settings
incl. diagrams
Ext. user interface
Preventive Maintenance Schedule
Clock settings
Timed Action Programming
Smart Logic Controller Set-up
5 5
