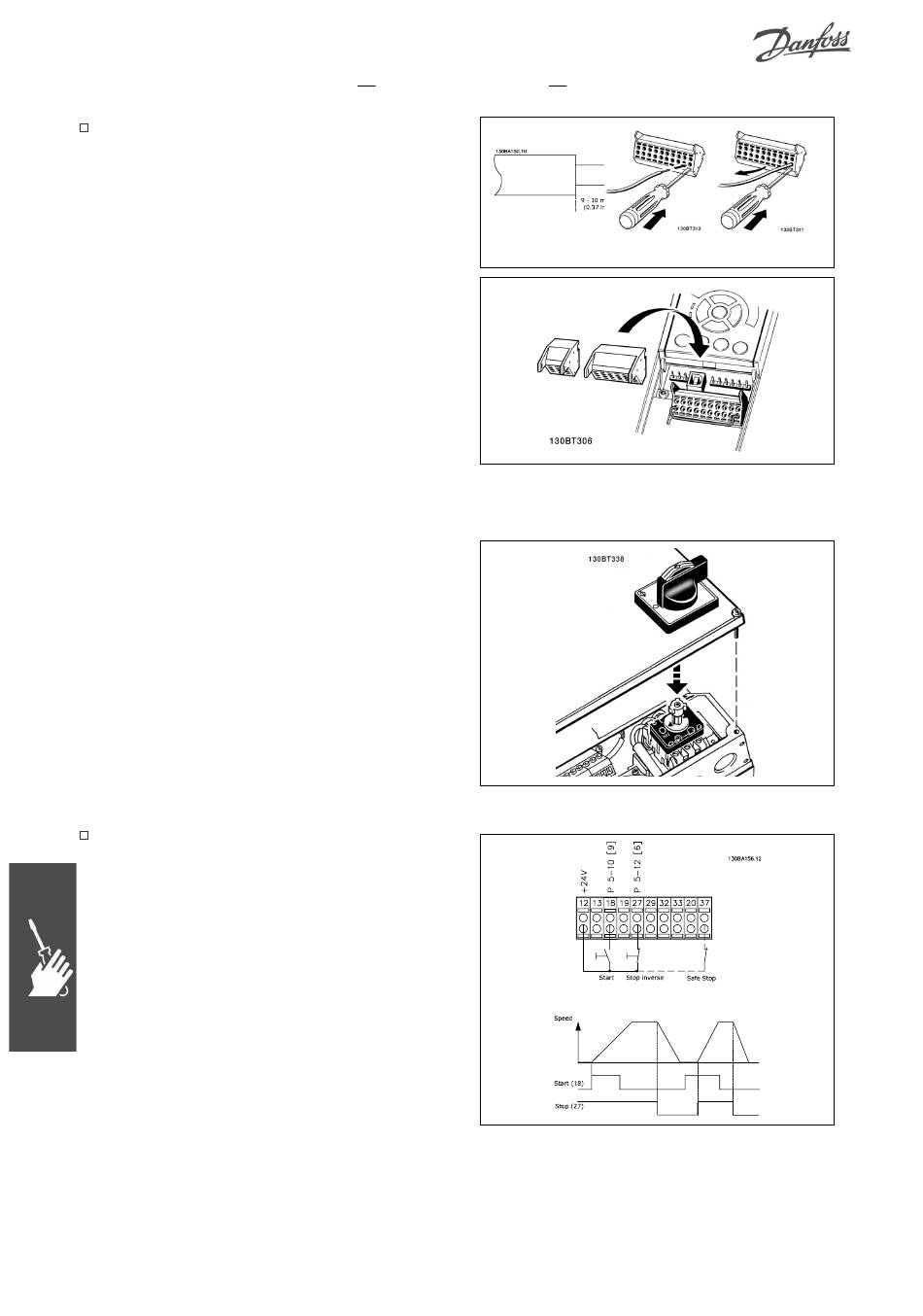

Electrical Installation, Control Terminals

To mount the cable to the terminal:
1. Strip isolation of 9-10 mm
2.
Insert a screw driver
3. Insert the cable in the adjacent circular
hole.
4. Remove the screw driver. The cable is
now mounted to the terminal.
To remove the cable from the terminal:
1.
Insert a screw driver
2. Pull out the cable.
1) Max. 0.4 x 2.5 mm
Assembling of IP55 / NEMA Type 12 (A5 housing) with mains disconnector
Mains switch is placed on left side on B1, B2, C1
and C2 enclosures. Mains switch on A5 enclosure
is placed on right side

Basic Wiring Example

1. Mount terminals from the accessory bag
to the front of the FC 300.
2. Connect terminals 18, 27 and 37 (FC 302
only) to +24 V (terminal 12/13)
Default settings:
18 = Start, Par 5-10 [9]
27 = Stop inverse, Par 5-12 [6]
37 = safe stop inverse
92
How to Install
1)
in the square hole.
1) in the square hole.
