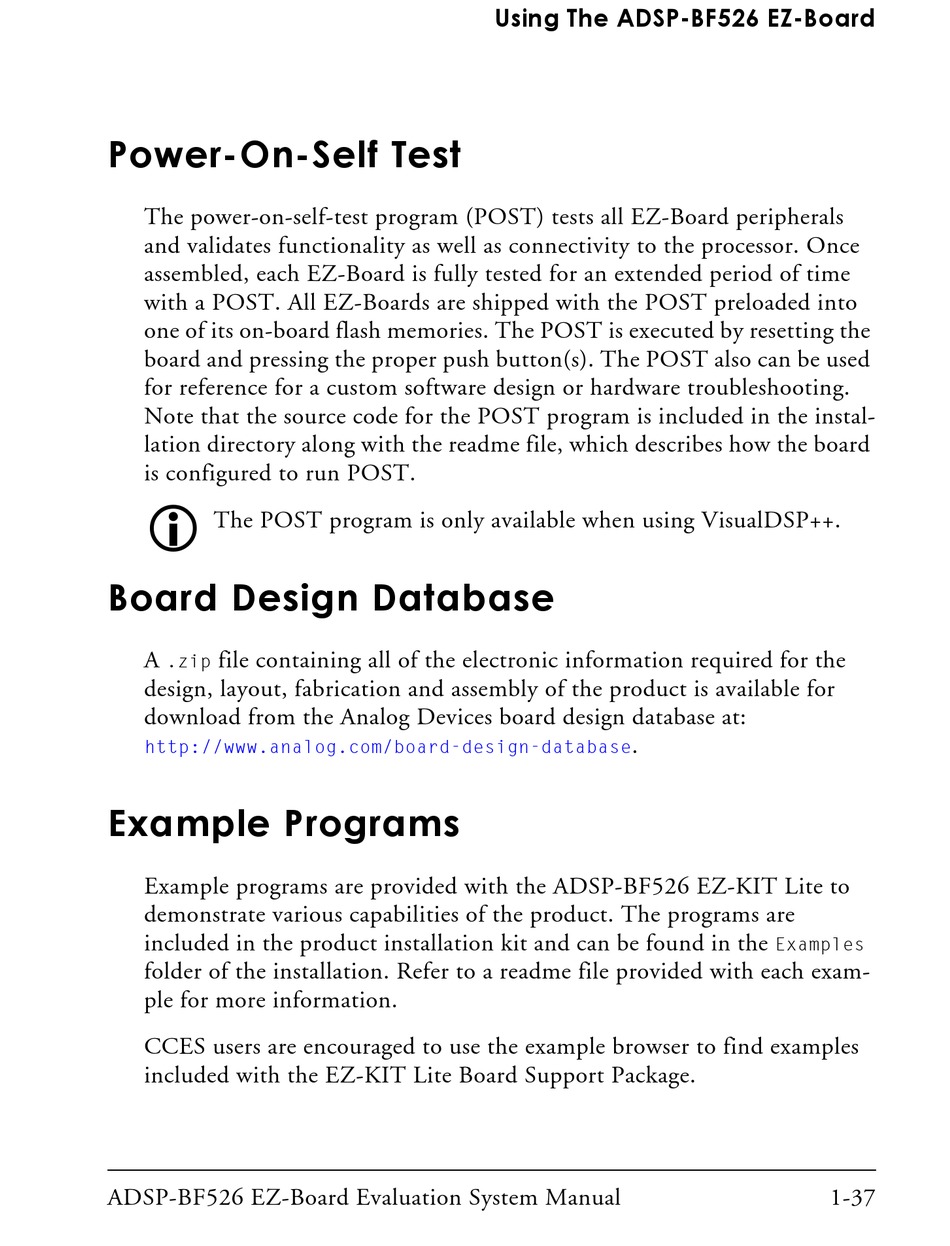

Power-On-Self Test

The power-on-self-test program (POST) tests all EZ-Board peripherals
and validates functionality as well as connectivity to the processor. Once
assembled, each EZ-Board is fully tested for an extended period of time
with a POST. All EZ-Boards are shipped with the POST preloaded into
one of its on-board flash memories. The POST is executed by resetting the
board and pressing the proper push button(s). The POST also can be used
for reference for a custom software design or hardware troubleshooting.
Note that the source code for the POST program is included in the instal-
lation directory along with the readme file, which describes how the board
is configured to run POST.
The POST program is only available when using VisualDSP++.

Board Design Database

A
file containing all of the electronic information required for the
.zip
design, layout, fabrication and assembly of the product is available for
download from the Analog Devices board design database at:
http://www.analog.com/board-design-database

Example Programs

Example programs are provided with the ADSP-BF526 EZ-KIT Lite to
demonstrate various capabilities of the product. The programs are
included in the product installation kit and can be found in the
folder of the installation. Refer to a readme file provided with each exam-
ple for more information.
CCES users are encouraged to use the example browser to find examples
included with the EZ-KIT Lite Board Support Package.
ADSP-BF526 EZ-Board Evaluation System Manual
Using The ADSP-BF526 EZ-Board
.
Examples
1-37
