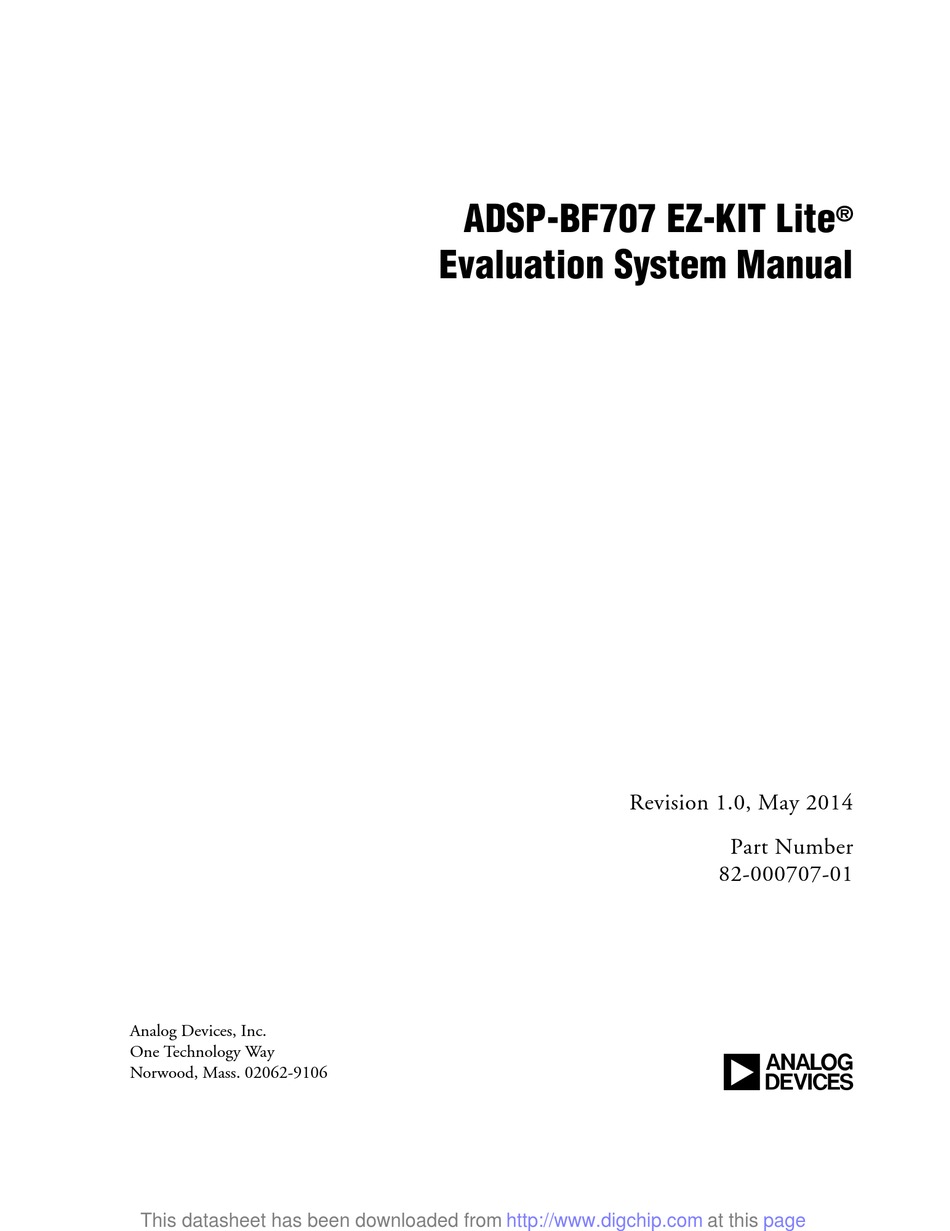

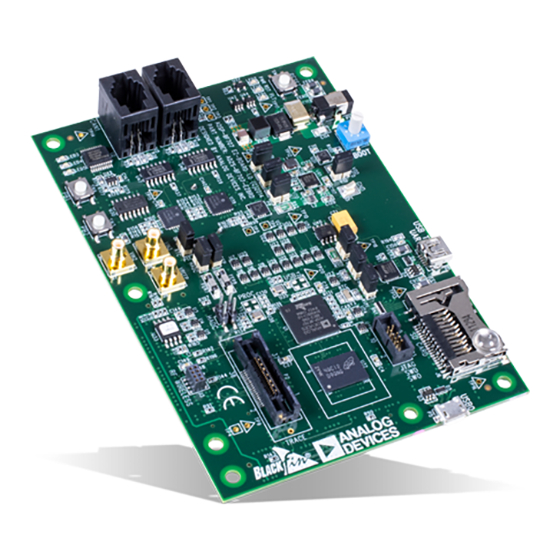

ADSP-BF707 EZ-KIT Lite
®
Evaluation System Manual
Revision 1.0, May 2014
Part Number
82-000707-01
Analog Devices, Inc.
One Technology Way
a
Norwood, Mass. 02062-9106
This datasheet has been downloaded from
http://www.digchip.com
at this
page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ-KIT Lite ADSP-BF707 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices EZ-KIT Lite ADSP-BF707

Summary of Contents for Analog Devices EZ-KIT Lite ADSP-BF707

  • Page 1 ADSP-BF707 EZ-KIT Lite ® Evaluation System Manual Revision 1.0, May 2014 Part Number 82-000707-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106 This datasheet has been downloaded from http://www.digchip.com at this page...
  • Page 2 Analog Devices, Inc. Printed in the USA. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
  • Page 3 Regulatory Compliance The ADSP-BF707 EZ-KIT Lite is designed to be used solely in a labora- tory environment. The board is not intended for use as a consumer end product or as a portion of a consumer end product. The board is an open system design which does not include a shielded enclosure and therefore may cause interference to other electrical devices in close proximity.

  • Page 5: Table Of Contents

    What’s New in This Manual ............xiv Technical Support ................xv Supported Processors ............... xv Supported Tools ................xvi Product Information ..............xvi Analog Devices Web Site ............xvi EngineerZone ................xvii Notation Conventions ..............xvii ADSP-BF707 EZ-KIT Lite Evaluation System Manual...
  • Page 6 Contents USING ADSP-BF707 EZ-KIT LITE Package Contents ................. 1-2 ADSP-BF707 EZ-Board ............... 1-3 Default Configuration ..............1-3 EZ-KIT Lite Installation ............... 1-5 EZ-KIT Lite Session Startup ............1-6 Evaluation License ................ 1-8 DDR2 Memory ................1-8 SPI Flash ..................1-9 Housekeeping ADC ..............
  • Page 7 Contents ADSP-BF707 EZ-KIT LITE HARDWARE REFERENCE System Architecture ..............2-2 Software-Controlled Switches (SoftConfig) ........2-3 Overview of SoftConfig ............2-3 SoftConfig on the ADSP-BF707 EZ-KIT LITE ...... 2-7 Programming SoftConfig Switches ........... 2-8 Push Buttons and Switches ............2-16 Boot Mode Select Switch (SW1) ..........2-17 Reset Push Button (SW2) ............
  • Page 8 Contents HADC Connector (JP1) ............2-24 SD Connector (J6) ..............2-24 CAN0 Connector (J4) ............2-24 CAN1 Connector (J5) ............2-25 JTAG/SWD/SWO Connector (P3) ........2-25 TRACE and JTAG/SWD/SWO Connector (P2) ....2-25 ADSP-BF707 EZ-KIT LITE BILL OF MATERIALS ADSP-BF707 EZ-KIT LITE SCHEMATIC INDEX viii ADSP-BF707 EZ-KIT Lite Evaluation System Manual...
  • Page 9 PREFACE ® Thank you for purchasing the ADSP-BF707 EZ-KIT Lite , Analog Devices, Inc. low-cost evaluation system for the ADSP-BF70x Blackfin® processors. The ADSP-BF707 processor is a member of the Blackfin family of prod- ucts. Blackfin processors combine a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like micro- processor instruction set, and single-instruction, multiple-data (SIMD) multimedia capabilities into a single instruction-set architecture.

  • Page 10: Product Overview

    • Read and write data and program memory • Read and write core and peripheral registers Product Overview The board features: • Analog Devices ADSP-BF707 processor • 184-ball BGA package • 25 MHz CLKIN core oscillator • DDR2 memory (DMC0) chip •...
  • Page 11 Preface • RF Wireless • 4 x 2 connector • 0.05” socket • Universal Asynchronous Receiver/Transmitter (UART0) • FTDI FT232RQ USB to UART converter • USB Mini B connector • Controller Area Network (CAN) interfaces • CAN0—NXP TJA1041 transceiver and RJ11 connector •...
  • Page 12 Product Overview • RESET controller • Analog Devices ADM6315 microprocessor supervisory circuits • Debug (JTAG/SWD/TRACE) interface • JTAG/SWD/SWO 10-pin 0.05” header for use with ADI emulators • TRACE/JTAG/SWD 38-pin Mictor header • Power measurement • INA3221 to measure 3V, VDD_INT and VDD_EXT •...

  • Page 13: Purpose Of This Manual

    Lite. Finally, a schematic and a bill of materials are provided for reference. Intended Audience The primary audience for this manual is a programmer who is familiar with Analog Devices processors. This manual assumes that the audience has a working knowledge of the appropriate processor architecture, instruction set, and C/C++ programming languages.

  • Page 14: Manual Contents

    Manual Contents Programmers who are unfamiliar with Analog Devices processors can use this manual, but should supplement it with other texts (such as the ADSP-BF70x Blackfin+ Processor Hardware Reference and the ADSP-BF70x Blackfin+ Processor Programming Reference) that describe your target architecture.

  • Page 15: Technical Support

    Preface Technical Support You can reach Analog Devices processors and DSP technical support in the following ways: • Post your questions in the processors and DSP support community ® at EngineerZone http://ez.analog.com/community/dsp • Submit your questions to technical support directly at: http://www.analog.com/support...

  • Page 16: Supported Tools

    Information on supported tools for the ADSP-BF707 EZ-KIT Lite and the ADSP-BF70x family of Blackfin processors is available at: http://www.analog.com/BF707EZKit Product Information Product information can be obtained from the Analog Devices Web site and the online help system. Analog Devices Web Site The Analog Devices Web site, , provides information www.analog.com...

  • Page 17: Engineerzone

    If you are a registered user, just log on. Your user name is your e-mail address. EngineerZone EngineerZone is a technical support forum from Analog Devices. It allows you direct access to ADI technical support engineers. You can search FAQs and technical information to get quick answers to your embedded processing and DSP design questions.
  • Page 18 Notation Conventions Example Description Commands, directives, keywords, and feature names are in text with SECTION font. letter gothic Non-keyword placeholders appear in text with italic style format. filename Note: For correct operation, ...  A Note provides supplementary information on a related topic. In the online version of this book, the word Note appears instead of this symbol.

  • Page 19: Using Adsp-Bf707 Ez-Kit Lite

    1 USING ADSP-BF707 EZ-KIT LITE This chapter provides information to assist you with development of pro- grams for the ADSP-BF707 EZ-KIT Lite evaluation system. The following topics are covered. • Package Contents • ADSP-BF707 EZ-Board • Default Configuration • EZ-KIT Lite Installation •...

  • Page 20: Package Contents

    • ICE-1000 (only in the EZ-LIT Lite version) • Standoffs and screws in a bag • Release note • 2GB SD card Contact the vendor where you purchased your EZ-KIT Lite or contact Analog Devices, Inc. if any item is missing. ADSP-BF707 EZ-KIT Lite Evaluation System Manual...

  • Page 21: Adsp-Bf707 Ez-Board

    Using ADSP-BF707 EZ-KIT Lite ADSP-BF707 EZ-Board The ADSP-BF707 EZ-KIT Lite is shipped with an ICE-1000 emulator. When the product is not shipped with the emulator, it is referred to as the ADSP-BF707 EZ-Board.  The EZ-Board requires an ICE-1000 or ICE-2000 emulator. Default Configuration The ADSP-BF707 EZ-KIT Lite board is designed to run as a standalone unit.
  • Page 22 Default Configuration Figure 1-1 shows the default jumper settings and boot mode switch used in installation. Confirm that your board is in the default configuration before using the board. Figure 1-1. Default EZ-KIT Lite Hardware Setup ADSP-BF707 EZ-KIT Lite Evaluation System Manual...

  • Page 23: Ez-Kit Lite Installation

    Using ADSP-BF707 EZ-KIT Lite EZ-KIT Lite Installation It is assumed that the CrossCore Embedded Studio software is installed and running on your PC. Follow these instructions to ensure correct operation of the product soft- ware and hardware. Step 1: Connecting an emulator to the EZ-KIT Lite. 1.

  • Page 24: Ez-Kit Lite Session Startup

    EZ-KIT Lite Session Startup EZ-KIT Lite Session Startup It is assumed that the CrossCore Embedded Studio software is installed and running on your PC.  Note: If you connect the board or emulator first (before installing CCES) to the PC, the Windows driver wizard may not find the board drivers.
  • Page 25 Using ADSP-BF707 EZ-KIT Lite 5. Select Emulator and click Next. The Select Platform page of the Session Wizard appears. 6. Choose the type of emulator that is connected to the EZ-KIT Lite. 7. Click Finish to close the wizard. The new debug configuration is created and added to the Debug Configurations list.

  • Page 26: Evaluation License

    • Analog Devices directly. Call (800) 262-5645 or 781-937-2384 or go to: http://www.analog.com/buyonline • Analog Devices, Inc. local sales office or authorized distributor. To locate one, go to: www.analog.com/adi-sales  The EZ-KIT Lite hardware must be connected and powered up to use CCES with a valid evaluation or full license.

  • Page 27: Spi Flash

    Using ADSP-BF707 EZ-KIT Lite With a CCES session running and connected to the EZ-KIT Lite via an emulator, the DDR2 registers are configured automatically each time the processor is reset through a soft reset using CCES. The values are used whenever DDR2 is accessed through the debugger (for example, when viewing memory or loading a program).

  • Page 28: Housekeeping Adc

    Housekeeping ADC Housekeeping ADC The ADSP-BF707 processor provides four housekeeping ADC inputs: through . The EZ-KIT Lite connects HADC0_VIN0 HADC_VIN3 HADC0_VIN0 pin 2 of a four position 0.1” header ( voltage domain VDD_RTC on pin 1, allowing a jumper to connect the voltage back to the processor. Pin 4 of connects through an RC timer to HADC0_VIN1...

  • Page 29: Can1 Interface

    Using ADSP-BF707 EZ-KIT Lite For more information, refer to the CAN0 example in the POST, which is included in the ADSP-BF707 Board Support Package. CAN1 Interface The Controller Area Network 1 ( ) interface of the EZ-KIT Lite is CAN1 connected to the NXP TJA1041 CAN transceiver ( ).

  • Page 30: Sd Interface

    SD Interface SD Interface The ADSP-BF707 processor has a secure digital (SD) interface that con- sists of a clock pin, command pin, card detect pin, and an 8-bit data bus. SoftConfig controls the connection of the card detect pin ( ) and a PA_08 GPIO pin used for write protect (...

  • Page 31: Expansion Interface

     Analog Devices does not support and is not responsible for the effects of additional circuitry. Power Architecture The ADSP-BF707 EZ-KIT Lite has three primary voltage domains: 3.3V, 1.1V, and 1.8V.

  • Page 32: Power Measurements

    Power Measurements removed. See Power Measurements for more information. The voltage level of can be measured by using the INA230 IC ( ) and the VDD_DMC0 current consumption of the domain, if the jumper is removed. See Power Measurements section for more information A FET switch ( ) controls the 5V to the USB devices over the signal.

  • Page 33: Reference Design Information

    Using ADSP-BF707 EZ-KIT Lite Reference Design Information A reference design info package is available for download on the Analog Devices Web site. The package provides information on the design, lay- out, fabrication, and assembly of the EZ-KIT Lite. The information can be found at: http://www.analog.com/BF707EZKit ADSP-BF707 EZ-KIT Lite Evaluation System Manual 1-15...
  • Page 34 Reference Design Information 1-16 ADSP-BF707 EZ-KIT Lite Evaluation System Manual...

  • Page 35: Adsp-Bf707 Ez-Kit Lite Hardware Reference

    2 ADSP-BF707 EZ-KIT LITE HARDWARE REFERENCE This chapter describes the hardware design of the ADSP-BF707 EZ-KIT Lite board. The following topics are covered. • System Architecture Describes the board’s configuration and explains how the board components interface with the processor. •...

  • Page 36: System Architecture

    System Architecture System Architecture This section describes the processor’s configuration on the EZ-KIT Lite board (Figure 2-1). RJ11 RJ11 USB otg 32 Mbit Quad FTDI SPI Flash FT232RQ TJA1041 TJA1041 24 MHz Oscillator UART0 25 MHz USB0 CAN0 CAN1 SPI2 PBs (2) Oscillator ADSP-BF707...

  • Page 37: Software-Controlled Switches (Softconfig)

    ADSP-BF707 EZ-KIT Lite Hardware Reference User I/O to the processor is provided in the form of two user push buttons and three LEDs. The software-controlled switches (SoftConfig) facilitate the switch multi-functionality by disconnecting the push buttons from their associated processor pins and reusing the pins elsewhere on the board.
  • Page 38 Software-Controlled Switches (SoftConfig) Figure 2-2 shows two individual FET switches (Pericom PI3A125CEX) with reference designators UA and UB. Net names ENABLE_A ENABLE_B control UA and UB. The default FET switch enable settings in this exam- ple are controlled by resistors which pull the enable pin 1 of UA and UB to ground (low).
  • Page 39 ADSP-BF707 EZ-KIT Lite Hardware Reference Figure 2-3 shows the equivalent circuit to Figure 2-2 but utilizes mechan- ical switches that are in the same package. Notice the default is shown by black boxes located closer to the label of the switches. In order to dis- connect these switches, physically move the switch to the position.
  • Page 40 Software-Controlled Switches (SoftConfig) Figure 2-4. Example of Bus Switch ADSP-BF707 EZ-KIT Lite Evaluation System Manual...

  • Page 41: Softconfig On The Adsp-Bf707 Ez-Kit Lite

    ADSP-BF707 EZ-KIT Lite Hardware Reference Figure 2-5. Example of Mechanical Switch Equivalent to Figure 2-4 SoftConfig on the ADSP-BF707 EZ-KIT LITE Two Microchip MCP23017 GPIO expanders provide control for individ- ual electronic switches. The TWI0 interface of the processor communicates with the Microchip devices.There are individual switches with default settings that enable basic board functionality.

  • Page 42: Programming Softconfig Switches

    Software-Controlled Switches (SoftConfig) Table 2-1. Default ADSP-BF707 Processor Interface Availability Interface Availability by Default UART0 USB to UART conversion through U45 (FTDI FT232RQ) with flow control CAN0 Transmit/receive disabled CAN1 Enabled Push buttons Enabled LEDs Enabled Programming SoftConfig Switches On the ADSP-BF707 EZ-KIT Lite, two Microchip MCP23017 devices exist.
  • Page 43 ADSP-BF707 EZ-KIT Lite Hardware Reference Table 2-2. IODIR for Hardware Address 0x41 IODIR Register IODIR Register Address Value to be Written to Program Signals as Outputs IODIRA 0x00 0x40 IODIRB 0x01 0x03 Table 2-3. IODIR for Hardware Address 0x42 IODIR Register IODIR Register Address Value to be Written to Program Signals as Outputs IODIRA 0x00...
  • Page 44 Software-Controlled Switches (SoftConfig) Table 2-5. I C Hardware Address 0x42 GPIO MCP23017 Register Address Default Value GPIOA 0x12 0x85 GPIOB 0x13 0x83 ADSP-BF707 EZ-KIT Lite Schematic shows how the two Microchip GPIO expanders are connected to the board’s ICs. Table 2-6 Table 2-7 show the output signals of the Microchip GPIO expander (...
  • Page 45 ADSP-BF707 EZ-KIT Lite Hardware Reference Table 2-6. Output Signals of Microchip GPIO Expander (U39 Port A) (Cont’d) Bit Signal Name Description FET Processor Signal Component Default (if applicable) Connected MSIO card detect High SD_CD_EN U26 PA_08/EPPI0_D11/ MSI0_CD/SPT1_ACLK/ SMC0_A01 GPIO SD card write High SD_WP_EN U27 PB_07/EPPI0_D00/...
  • Page 46 Software-Controlled Switches (SoftConfig) Table 2-7. Output Signals of Microchip GPIO Expander (U39 Port B) (Cont’d) Bit Signal Name Description Processor Signal Component Default (if applicable) Connected Connects error sig- High CAN0_ERR_EN PB_02/ nal to processor EPPI0_D05/ SPT1_BD0/ SPI0_MOSI/ SMC0_D05 Connects error sig- High CAN1_ERR_EN...
  • Page 47 ADSP-BF707 EZ-KIT Lite Hardware Reference Table 2-8. Output Signals of Microchip GPIO Expander (U38 Port A) Bit Signal Name Description FET/ Processor Signal Component Default SWITCH (if applicable) Connected Enables High CAN0_TX_EN CAN0 TX PC_03/UART0_CTS/ CAN0_TX/ EPPI0_D12/ SMC0_A11/TM0_ACI0 Enables CAN1_TX_EN CAN1 TX PA_13/EPPI0_FS2/ CAN1_TX/SMC0_ARE/...
  • Page 48 Software-Controlled Switches (SoftConfig) Table 2-8. Output Signals of Microchip GPIO Expander (U38 Port A) (Cont’d) Bit Signal Name Description FET/ Processor Signal Component Default SWITCH (if applicable) Connected Enables UART0CTS_EN UART0 CTS PC_03/UART0_CTS/ CAN0_TX/ EPPI0_D12/ SMC0_A11/TM0_ACI0 Not Used Table 2-9. Output Signals of Microchip GPIO Expander (U38 Port B) Bit Signal Name Description...
  • Page 49 ADSP-BF707 EZ-KIT Lite Hardware Reference Table 2-9. Output Signals of Microchip GPIO Expander (U38 Port B) (Cont’d) Bit Signal Name Description FET/ Processor Signal Component Default SWITCH (if applicable) Connected Enables push button 2 PUSHBUTTON2_EN PB_07/ EPPI0_D00/ SPT0_BD1/ SPI0_D3/ SMC0_D00/ SYS_WAKE0 Not Used ADSP-BF707 EZ-KIT Lite Evaluation System Manual...

  • Page 50: Push Buttons And Switches

    Push Buttons and Switches Push Buttons and Switches This section describes operation of the push buttons and switches. The push button and switch locations are shown in Figure 2-6. Figure 2-6. Push Button and Boot Mode Switch Locations 2-16 ADSP-BF707 EZ-KIT Lite Evaluation System Manual...

  • Page 51: Boot Mode Select Switch (Sw1)

    ADSP-BF707 EZ-KIT Lite Hardware Reference Boot Mode Select Switch (SW1) The rotary switch ( ) determines the boot mode of the processor. Table 2-10 shows the available boot mode settings. By default, the ADSP-BF707 processor boots from the internal SPI flash memory. Table 2-10.

  • Page 52: Jumpers

    Jumpers Jumpers This section describes functionality of the configuration jumpers. Figure 2-7 shows the jumper locations. Figure 2-7. Jumper Locations Power Jumpers (P8-12, P14-18) Remove jumpers listed in Table 2-11 to measure the respective voltage across the adjacent sense resistor. Table 2-11.

  • Page 53: Leds

    ADSP-BF707 EZ-KIT Lite Hardware Reference Table 2-11. Power Jumpers (Cont’d) Power Jumper Resistor VDD_DMC0 VDD_HADC VDD_OTP VDD_USB VDD_RTC (no sense resistor, remove to supply HADC_VREFP through HADC_VREFP LEDs This section describes the on-board LEDs. Figure 2-8 shows the LED locations. Figure 2-8.

  • Page 54: Gpio Leds (Led3-5)

    Reset LED (LED6) When (red), it indicates that the master reset of all the major LED6 ICs is active. The reset LED is controlled by the Analog Devices ADM6315 supervisory reset circuit. is a signal driven from TARGET_RESET an emulator. EI3 extender cards can also drive a reset as an input to this reset circuit.

  • Page 55: Connectors

    ADSP-BF707 EZ-KIT Lite Hardware Reference Connectors This section describes connector functionality and provides information about mating connectors. The connector locations are shown in Figure 2-9. Figure 2-9. Connector Locations  Connectors on the back of the board are noted with dotted lines. ADSP-BF707 EZ-KIT Lite Evaluation System Manual 2-21...

  • Page 56: Expansion Interface Iii Connectors (P1A-C)

    Connectors Expansion Interface III Connectors (P1A-C) Three board-to-board connectors ( ) provide signals from the SPI, TWI, UART, SPORT, and GPIO interfaces of the processor. The connectors are located on the bottom side of the board. For more information, see Expansion Interface.

  • Page 57: Usb Connector (P5)

    ADSP-BF707 EZ-KIT Lite Hardware Reference USB Connector (P5) Part Description Manufacturer Part Number USB Micro-AB Hirose ZX62D-AB-5P8 Mating Cable USB Micro-B to Standard-A or Micro-A to Standard-A receptacle cable RF Wireless Connector (J3) Part Description Manufacturer Part Number 4x2 0.05” pitch socket SAMTEC SFMC-104-T2-S-D Mating Connector...
  • Page 58 Connectors HADC Connector (JP1) allows the signal to be connected to with the VDD_RTC HADC0_VIN0 installation of a jumper across pins 1 and 2. Pin 3 is not connected. Pin 4 allows the user to probe which is connected to an RC timer HADC0_VIN1 driven by TM0_TMR3...
  • Page 59 ADSP-BF707 EZ-KIT Lite Hardware Reference CAN1 Connector (J5) Part Description Manufacturer Part Number RJ11 vertical DIGIKEY A31431-ND Mating Cable RJ11 cable JTAG/SWD/SWO Connector (P3) The JTAG/SWD/SWO header ( ) provides debug connectivity for the processor. This is a 0.05” shrouded through-hole connector from SAM- TEC (SHF-105-01-L-D-TH).
  • Page 60 Connectors 2-26 ADSP-BF707 EZ-KIT Lite Evaluation System Manual...
  • Page 61 A ADSP-BF707 EZ-KIT LITE BILL OF MATERIALS The bill of materials corresponds to ADSP-BF707 EZ-KIT Lite Schematic. Reference Ref. Qty. Description Designator Manufacturer Part Number SMC THREADED J7-J9 AMPHENOL 152119 AMPHE- CONN NOL_152119 ADP5024 ADP5024ACPZ-R2 QFN50P400X400-25 ADM6315 SOT143 ADM6315-29D2ARTZR7 ADSP-BF707 ADSP-BF707BBCZ-ENG BGA184C80P14X14_ 1200X1200_SCKT...
  • Page 62 Reference Ref. Qty. Description Designator Manufacturer Part Number 0.01UF 16V 10% C3,C6-C19,C23,C33- 0402YC103KAT2A 0402 X7R C37,C43-C46,C51-C5 3,C56-C58,C60,C61,C 65,C69,C73,C77,C97- C99,C102-C104,C106 -C111,C123,C129,C13 9-C141,C147,C150 4.7UF 25V 20% 0805 C24,C121,C122 0805ZD475KAT2A 4.7UF 6.3V 20% 0603 C145 06036D475MAT2A 100PF 50V 5% 0603 C62,C63,C70,C71 06035A101JAT2A 27PF 50V 5% 0402 C134 04025A270JAT2A 10UF 16V 10% 1210...
  • Page 63 ADSP-BF707 EZ-KIT Lite Bill Of Materials Reference Ref. Qty. Description Designator Manufacturer Part Number FT232RQ DIGI-KEY 768-1008-1-ND QFN50P500X500-33 24MHZ OSC- DIGI-KEY 478-4778-1-ND CC200X250 USB-MICRO 5PIN DIGI-KEY H11494CT-ND HIROSE_ZX- 62D-AB-5P8 30A GSOT05 DIGI-KEY GSOT05-E3-08TR-ND SOT23-3 RED LED_0603 LED1,LED6 DIGI-KEY 475-2512-2-ND YELLOW LED_0603 LED3-LED5 DIGI-KEY 475-2558-1-ND 15KV ESDA5V3SC6...
  • Page 64 Reference Ref. Qty. Description Designator Manufacturer Part Number 750.0K 1/10W 1% R179 DIGI-KEY 311-750KHRTR-ND 0603 100 1/16W 5% 0402 R73,R74 DIGI-KEY 311-100JRTR-ND 12.0K 1/16W 1% R116 DIGI-KEY 311-12.0KLRCT-ND 0402 330.0 1/16W 1% R4,R62,R80-R83 DIGI-KEY 541-330LCT-ND 0402 10.0K 1/16W 1% R113,R118 DIGI-KEY 541-10.0KLCT-ND 0402...
  • Page 65 ADSP-BF707 EZ-KIT Lite Bill Of Materials Reference Ref. Qty. Description Designator Manufacturer Part Number LTC6993-1 LINEAR LTC6993CS6-1#TRMPBF SOT95P280-6N TECHNOLOGY VARISTOR V5.5MLA LITTLEFUSE V5.5MLA0603 30A 0603 PTC 0.5A 1206 R161 LITTLEFUSE 1206L050-C BATT_HOLDER MEMORY BH600 16MM BATT_- PROTECTION COIN16MM DEVICES MT47H128M16 MICRON MT47H128M16RT-25E FBGA84...
  • Page 66 Reference Ref. Qty. Description Designator Manufacturer Part Number 0.1 1/10W 1% 0603 R169-R172 PANASONIC ERJ-3RSFR10V 1.0K 1/16W 1% 0402 R19,R20 PANASONIC ERJ-2RKF1001X 33 1/16W 5% PANASONIC EXB-2HV330JV RNS003 2.2K 1/10W 5% 0402 R8,R9 PANASONIC ERJ-2GEJ222X 60.4 1/10W 1% 0603 R26,R32,R34,R40 PANASONIC ERJ-3EKF60R4V 39.0K 1/10W 1%...
  • Page 67 ADSP-BF707 EZ-KIT Lite Bill Of Materials Reference Ref. Qty. Description Designator Manufacturer Part Number 10K 1/16W 5% 0402 R12,R28,R36,R44,R93 VISHAY CRCW040210K0FKED ,R94,R97,R107-R109, R151,R153,R154,R156 ,R158,R159,R168,R17 10K 1/16W 5% 0402 R5-R7,R11,R14,R16-R VISHAY CRCW040210K0FKED 18,R29,R31,R33,R37, R39,R41-R43,R45-R52 ,R63-R65,R67,R70-R7 2,R77-R79,R84-R91,R 95,R96,R98-R100,R10 3,R110,R122-R129,R1 34,R137-R139,R142-R 144,R148-R150,R152, R155,R157,R160,R163 -R167,R173,R174,R19 6,R197 33 1/16W 5% 0402...
  • Page 68 ADSP-BF707 EZ-KIT Lite Evaluation System Manual...
  • Page 69 ADSP-BF707 EZ-Board SCHEMATIC ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD Title ADSP-BF707 EZ-BOARD Title Size Board No. A0450-2013 Date Sheet 04/04/2014...
  • Page 70 PA_00/SPI1_CLK/TRACE0_D07/SMC0_ABE0 PA_00/SPI1_CLK/TRACE0_D07/SMC0_ABE0 PC_00/UART1_TX/SPT0_AD1/EPPI0_D15 PC_00/UART1_TX/SPT0_AD1/EPPI0_D15 PA_01/SPI1_MISO/TRACE0_D06/SMC0_ABE1 PA_01/SPI1_MISO/TRACE0_D06/SMC0_ABE1 PC_01/UART1_RX/SPT0_BD1/EPPI0_D14/SMC0_A09/TM0_ACI4 PC_01/UART1_RX/SPT0_BD1/EPPI0_D14/SMC0_A09/TM0_ACI4 PA_02/SPI1_MOSI/TRACE0_D05/SMC0_AMS1 PA_02/SPI1_MOSI/TRACE0_D05/SMC0_AMS1 PC_02/UART0_RTS/CAN0_RX/EPPI0_D13/SMC0_A10/TM0_ACI5/SYS_WAKE3 PC_02/UART0_RTS/CAN0_RX/EPPI0_D13/SMC0_A10/TM0_ACI5/SYS_WAKE3 PA_03/SPI1_SEL2/SPI1_RDY/SMC0_ARDY PA_03/SPI1_SEL2/SPI1_RDY/SMC0_ARDY PC_03/UART0_CTS/CAN0_TX/EPPI0_D12/SMC0_A11/TM0_ACI0 PC_03/UART0_CTS/CAN0_TX/EPPI0_D12/SMC0_A11/TM0_ACI0 PA_04/SPI1_SEL1/TM0_TMR7/SPI2_RDY/SMC0_A08/SPI1_SS PA_04/SPI1_SEL1/TM0_TMR7/SPI2_RDY/SMC0_A08/SPI1_SS PC_04/SPT0_BCLK/SPI0_CLK/MSI0_D1/SMC0_A12/TM0_ACLK0 PC_04/SPT0_BCLK/SPI0_CLK/MSI0_D1/SMC0_A12/TM0_ACLK0 PA_05/TM0_TMR0/SPI0_SEL1/SMC0_A07/SPI0_SS PA_05/TM0_TMR0/SPI0_SEL1/SMC0_A07/SPI0_SS PC_05/SPT0_AFS/TM0_TMR3/MSI0_CMD PC_05/SPT0_AFS/TM0_TMR3/MSI0_CMD PA_06/TM0_TMR1/SPI0_SEL2/SPI0_RDY/SMC0_A06 PA_06/TM0_TMR1/SPI0_SEL2/SPI0_RDY/SMC0_A06 PC_06/SPT0_BD0/SPI0_MISO/MSI0_D3 PC_06/SPT0_BD0/SPI0_MISO/MSI0_D3 PA_07/TM0_TMR2/SPT1_BTDV/SPT1_ATDV/SMC0_A05/CNT0_DG PA_07/TM0_TMR2/SPT1_BTDV/SPT1_ATDV/SMC0_A05/CNT0_DG PC_07/SPT0_BFS/SPI0_MOSI/MSI0_D2/TM0_ACI2 PC_07/SPT0_BFS/SPI0_MOSI/MSI0_D2/TM0_ACI2 PA_08/EPPI0_D11/MSI0_CD/SPT1_ACLK/SMC0_A01 PA_08/EPPI0_D11/MSI0_CD/SPT1_ACLK/SMC0_A01 PC_08/SPT0_AD0/SPI0_D2/MSI0_D0 PC_08/SPT0_AD0/SPI0_D2/MSI0_D0 PA_09/EPPI0_D10/TM0_TMR4/SPT1_AFS/SMC0_A02 PA_09/EPPI0_D10/TM0_TMR4/SPT1_AFS/SMC0_A02 PC_09/SPT0_ACLK/SPI0_D3/MSI0_CLK/TM0_ACLK2 PC_09/SPT0_ACLK/SPI0_D3/MSI0_CLK/TM0_ACLK2 PC_10/SPT1_BCLK/MSI0_D4/SPI1_SEL3/TM0_ACLK1 PC_10/SPT1_BCLK/MSI0_D4/SPI1_SEL3/TM0_ACLK1 PA_10/EPPI0_D09/TM0_TMR5/SPT1_AD0/SMC0_A03...
  • Page 71 3.3V 3.3V PROC OSC 3.3V 3.3V 3.3V 3.3V R134 USB OSC 0402 R148 R189 R133 0402 0402 0402 C129 R188 R147 0.01UF SYS_EXTWAKE STANDBY SYS_CLKIN 0402 0402 0402 C139 0.01UF SYS_EXTWAKE STANDBY USB0_CLKIN 25MHZ 0402 OSCCC200X250 24MHZ OSCCC200X250 TP20 OPTIONAL USB CRYSTAL OPTIONAL PROC CRYSTAL R146 R145...
  • Page 72 DDR2 - 2Gb 16M x 16 x 8 banks VDD_DMC0 DMC0_A00 DMC0_A00 DMC0_DQ00 DMC0_DQ00 DMC0_A01 DMC0_A01 DMC0_DQ01 DMC0_DQ01 DMC0_A02 DMC0_A02 DMC0_DQ02 DMC0_DQ02 DMC0_A03 DMC0_A03 DMC0_DQ03 DMC0_DQ03 DMC0_A00 DMC0_DQ00 DMC0_A04 DMC0_A04 DMC0_DQ04 DMC0_DQ04 DMC0_A01 DMC0_DQ01 DMC0_A05 DMC0_A05 DMC0_DQ05 DMC0_DQ05 DMC0_A02 DMC0_DQ02 DMC0_A06 DMC0_A06 DMC0_DQ06...
  • Page 73 VDD_DMC0 VDD_DMC1 GND1 VDD_DMC2 GND2 VDD_DMC3 GND3 VDD_DMC4 GND4 VDD_DMC5 GND5 VDD_DMC6 GND6 VDD_DMC7 GND7 0805 VDD_DMC8 GND8 GND0 VDD_DMC9 GND9 USB0_VBUS VDD_DMC10 GND10 3.3V VDD_DMC11 GND11 VDD_EXT GND1 VDD_DMC12 GND12 4.7UF GND13 0805 GND14 R161 VDD_EXT1 GND15 THERM VDD_EXT2 GND16 ESDA5V3SC6 VDD_EXT3...
  • Page 74 SD CARD 3.3V 3.3V 3.3V 3.3V R180 R181 R182 R183 R187 R184 R185 R186 100K 100K 100K 100K 100K 100K 100K 100K 0402 0402 0402 0402 R124 R122 R123 0402 0402 0402 0402 RF Wireless 0402 0402 0402 3.3V PC_08/SPT0_AD0/SPI0_D2/MSI0_D0 DAT0 PC_04/SPT0_BCLK/SPI0_CLK/MSI0_D1/SMC0_A12/TM0_ACLK0 DAT1...
  • Page 75 3.3V R173 3.3V 0402 0402 0402 3.3V CAN0_ERR_EN PB_02/EPPI0_D05/SPT1_BD0/SPI0_MOSI/SMC0_D05 PI3A125 SC70_5 0402 0402 "CAN0" 100PF 60.4 0402 CAN0_TX_EN 0603 0603 0603 CAN0_EN PC_03/UART0_CTS/CAN0_TX/EPPI0_D12/SMC0_A11/TM0_ACI0 CAN0_STB WAKE PI3A125 SC70_5 CAN0_ERR CAN0_TX CAN0_RX_EN CANH CAN0_RX PC_02/UART0_RTS/CAN0_RX/EPPI0_D13/SMC0_A10/TM0_ACI5/SYS_WAKE3 SPLIT PI3A125 CANL SC70_5 CON039 RJ11 60.4 TJA1041 4700PF 0603...
  • Page 76 3.3V 0402 0402 UART0_TX is pulled up on the EI3 page with WAKE pullups GND0 GND0 GND1 GND1 UART0_EN PB_09/UART0_RX/EPPI0_D17/SPI2_SEL3/SMC0_D09/TM0_ACI3 PI3A125 "USB to UART" ESDA5V3SC6 SC70_5 ESD7004 VCCIO DFN50P250X100-10N PB_08/UART0_TX/EPPI0_D16/SPI2_SEL2/SMC0_D08/SYS_WAKE1 FER3 PI3A125 1206 SC70_5 USB_UART_DM USBM UART0CTS_EN USB_UART_DP USBP PC_03/UART0_CTS/CAN0_TX/EPPI0_D12/SMC0_A11/TM0_ACI0 PI3A125 SC70_5 SHGND1...
  • Page 77 TWI address 0100 001x TWI address 0100 010x where x is the R/W bit. Read - 1, Write - 0 3.3V 3.3V where x is the R/W bit. Read - 1, Write - 0 GPA0 SPIFLASH_CS_EN GPA0 CAN0_TX_EN GPA1 SPIFLASH_D2_EN GPA1 CAN1_TX_EN TWI0_SCL...
  • Page 78 PA_14/EPPI0_CLK/SPI1_SEL4/SMC0_AWE/TM0_ACLK5 PA_12/EPPI0_FS1/CAN1_RX/SMC0_AOE/TM0_ACI6/SYS_WAKE4 PPI0_CLK PPI0_FS1 PA_13/EPPI0_FS2/CAN1_TX/SMC0_ARE/CNT0_ZM PA_15/EPPI0_FS3/SPT0_ATDV/SPT0_BTDV/SMC0_AMS0/CNT0_UD PPI0_FS2 PPI0_FS3 PB_07/EPPI0_D00/SPT0_BD1/SPI0_D3/SMC0_D00/SYS_WAKE0 PPI0_D0 PPI0_D1 PB_06/EPPI0_D01/SPT0_BFS/SPI0_SEL6/SMC0_D01/TM0_CLK PB_05/EPPI0_D02/SPT0_BD0/SPI0_SEL5/SMC0_D02 PB_04/EPPI0_D03/SPT0_BCLK/SPI0_SEL4/SMC0_D03/TM0_ACLK6 PPI0_D2 PPI0_D3 PB_03/EPPI0_D04/SPT1_BD1/SPI0_D2/SMC0_D04 PPI0_D4 PPI0_D5 PB_02/EPPI0_D05/SPT1_BD0/SPI0_MOSI/SMC0_D05 PB_01/EPPI0_D06/SPT1_BFS/SPI0_MISO/SMC0_D06/TM0_ACI1 PPI0_D6 PPI0_D7 PB_00/EPPI0_D07/SPT1_BCLK/SPI0_CLK/SMC0_D07/TM0_ACLK3 PA_11/EPPI0_D08/TM0_TMR6/SPT1_AD1/SMC0_A04 PPI0_D8 PPI0_D9 PA_10/EPPI0_D09/TM0_TMR5/SPT1_AD0/SMC0_A03 PA_09/EPPI0_D10/TM0_TMR4/SPT1_AFS/SMC0_A02 PPI0_D10 PPI0_D11 PA_08/EPPI0_D11/MSI0_CD/SPT1_ACLK/SMC0_A01 PC_03/UART0_CTS/CAN0_TX/EPPI0_D12/SMC0_A11/TM0_ACI0 PC_02/UART0_RTS/CAN0_RX/EPPI0_D13/SMC0_A10/TM0_ACI5/SYS_WAKE3 PPI0_D12 PPI0_D13 PC_01/UART1_RX/SPT0_BD1/EPPI0_D14/SMC0_A09/TM0_ACI4 PC_00/UART1_TX/SPT0_AD1/EPPI0_D15 PPI0_D14 PPI0_D15 PB_08/UART0_TX/EPPI0_D16/SPI2_SEL2/SMC0_D08/SYS_WAKE1 PPI0_D16 PPI0_D17...
  • Page 79 PA_15/EPPI0_FS3/SPT0_ATDV/SPT0_BTDV/SMC0_AMS0/CNT0_UD ASYNC_AMS0 ASYNC_AMS2 PA_13/EPPI0_FS2/CAN1_TX/SMC0_ARE/CNT0_ZM PA_14/EPPI0_CLK/SPI1_SEL4/SMC0_AWE/TM0_ACLK5 ASYNC_RD ASYNC_WR PA_12/EPPI0_FS1/CAN1_RX/SMC0_AOE/TM0_ACI6/SYS_WAKE4 ASYNC_AMS3 ASYNC_AOE PA_02/SPI1_MOSI/TRACE0_D05/SMC0_AMS1 ASYNC_AMS1 ASYNC_INT PA_03/SPI1_SEL2/SPI1_RDY/SMC0_ARDY ASYNC_ARDY ASYNC_BGH PA_08/EPPI0_D11/MSI0_CD/SPT1_ACLK/SMC0_A01 ASYNC_A0 ASYNC_A1 ASYNC_BR ASYNC_BG PA_09/EPPI0_D10/TM0_TMR4/SPT1_AFS/SMC0_A02 ASYNC_A2 ASYNC_A3 PA_10/EPPI0_D09/TM0_TMR5/SPT1_AD0/SMC0_A03 PA_11/EPPI0_D08/TM0_TMR6/SPT1_AD1/SMC0_A04 ASYNC_A4 ASYNC_A5 PA_07/TM0_TMR2/SPT1_BTDV/SPT1_ATDV/SMC0_A05/CNT0_DG PB_06/EPPI0_D01/SPT0_BFS/SPI0_SEL6/SMC0_D01/TM0_CLK PB_07/EPPI0_D00/SPT0_BD1/SPI0_D3/SMC0_D00/SYS_WAKE0 ASYNC_D0 ASYNC_D1 PA_06/TM0_TMR1/SPI0_SEL2/SPI0_RDY/SMC0_A06 PA_05/TM0_TMR0/SPI0_SEL1/SMC0_A07/SPI0_SS ASYNC_A6 ASYNC_A7 PB_05/EPPI0_D02/SPT0_BD0/SPI0_SEL5/SMC0_D02 PB_04/EPPI0_D03/SPT0_BCLK/SPI0_SEL4/SMC0_D03/TM0_ACLK6 ASYNC_D2 ASYNC_D3 PA_04/SPI1_SEL1/TM0_TMR7/SPI2_RDY/SMC0_A08/SPI1_SS PC_01/UART1_RX/SPT0_BD1/EPPI0_D14/SMC0_A09/TM0_ACI4...
  • Page 80 LED1_GPIO1_EN PA_00/SPI1_CLK/TRACE0_D07/SMC0_ABE0 PI3A125 SC70_5 3.3V LED2_GPIO2_EN PA_01/SPI1_MISO/TRACE0_D06/SMC0_ABE1 PI3A125 SC70_5 POWER LED5 LED4 LED3 LED2 LED3_GPIO3_EN YELLOW YELLOW YELLOW GREEN LED_0603 LED_0603 LED_0603 LED_0603 PB_01/EPPI0_D06/SPT1_BFS/SPI0_MISO/SMC0_D06/TM0_ACI1 PI3A125 SC70_5 3.3V 0402 0402 0402 0402 0402 0402 330.0 330.0 330.0 330.0 0402 0402 0402 0402 IDT74FCT3244APY SSOP20...
  • Page 81 3.3V Remove P11 when measuring USB_VBUS FER6 FUS004 FER002 SHORTING JUMPER USB0_VBC DEFAULT=INSTALLED GND Test Points are scattered on PCB for Test Measurement Purposes. R111 R108 C113 C114 10UF 0402 0402 GSOT05 USB0_VBUS 1000PF 1210 USB0_VBUS_EN MBRS540T3G 1206 LABEL "GND" ON ALL TPs SOT23-3 IDC2X1 USB0_VBUS_EN...
  • Page 82 INDEX connectors (continued) P5 (USB), 2-23 ADSP-BF707 processor, P6 (USB to UART), 2-22 architecture, of this EZ-KIT Lite, contents, of this EZ-KIT Lite package, bill of materials, DDR2 memory, board schematic (ADSP-BF707), debug interface, 1-12 boot mode select switch (SW1), 2-17 default configuration, of this EZ-KIT Lite, bus switch,...
  • Page 83 Index HADC, 1-10 package contents, HADC connector (JP1), 2-24 power HADC SMC connectors (J7, J8, J9), 2-23 architecture, 1-13 housekeeping ADC, 1-10 LED (LED2), 2-20 measurements, 1-14 power connector (P13), 2-22 power jumpers, listing, 2-18 installation, of this EZ-KIT Lite, 1-4, power jumpers (P8-12, P14-18), 2-18 interface...
  • Page 84 Index technical support, TRACE and JTAG/SWD/SWO connector (P2), 2-25 UART0 interface, 1-10 USB connector (P5), 2-23 USB interface, 1-11 USB to UART connector (P6), 2-22 ADSP-BF707 EZ-KIT Lite Evaluation System Manual...
  • Page 85 Index ADSP-BF707 EZ-KIT Lite Evaluation System Manual...
