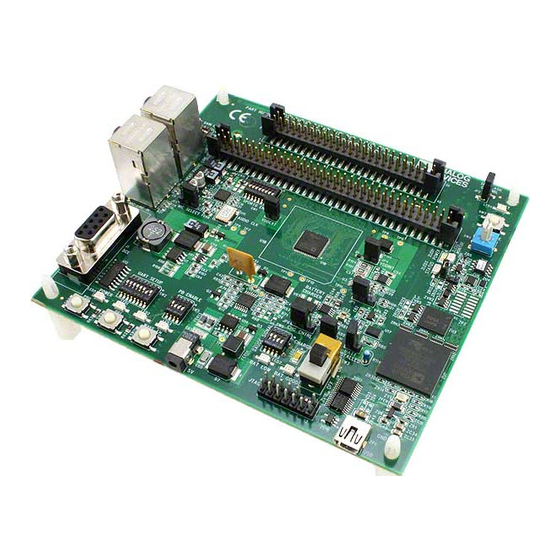

Summary of Contents for Analog Devices ADSP-BF592 EZ-KIT Lite
Page 1

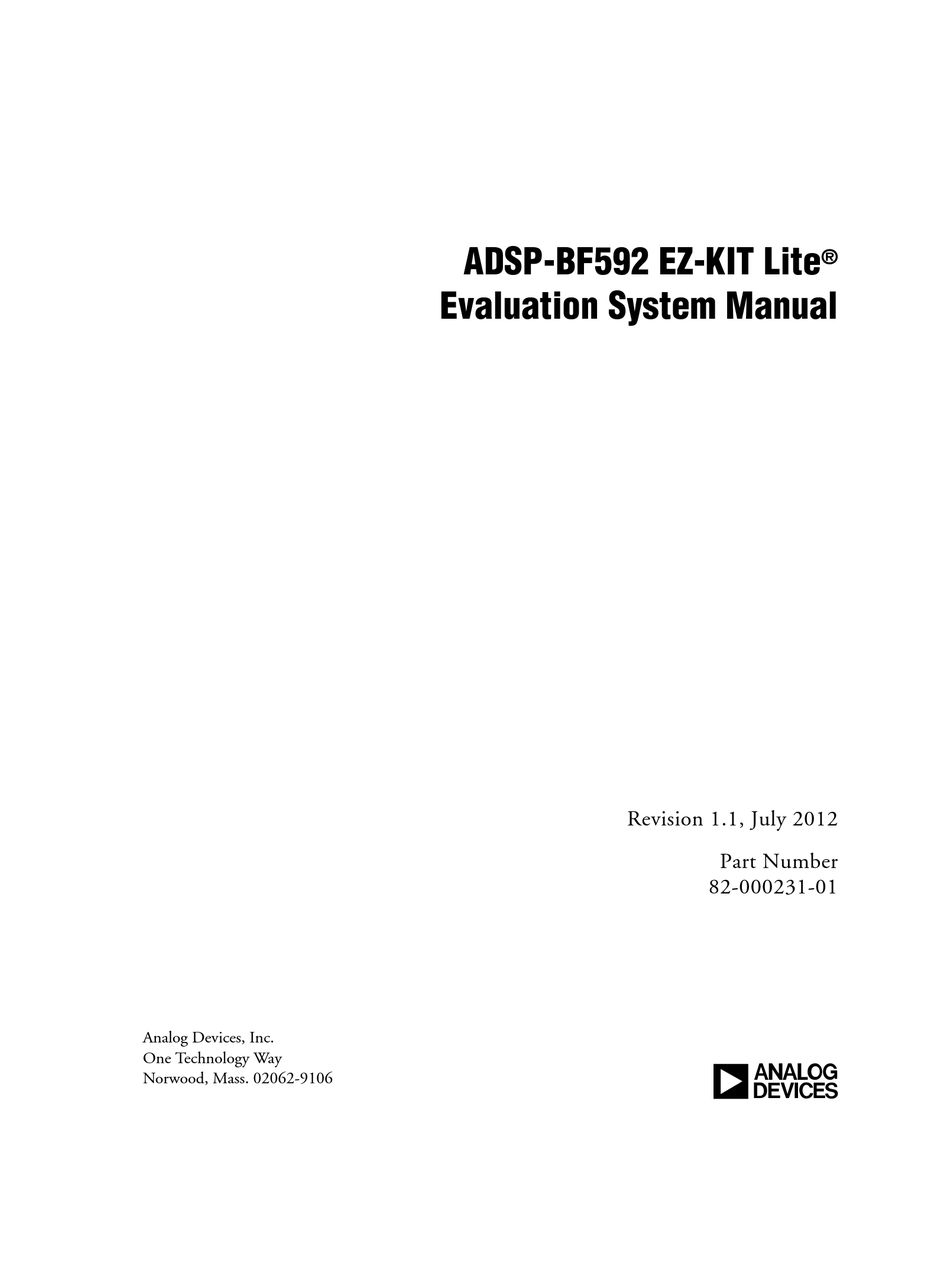

ADSP-BF592 EZ-KIT Lite ® Evaluation System Manual Revision 1.1, July 2012 Part Number 82-000231-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106...
Page 2
Analog Devices, Inc. Printed in the USA. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
Page 3
Regulatory Compliance The ADSP-BF592 EZ-KIT Lite is designed to be used solely in a labora- tory environment. The board is not intended for use as a consumer end product or as a portion of a consumer end product. The board is an open system design which does not include a shielded enclosure and therefore may cause interference to other electrical devices in close proximity.
EngineerZone ................xvi Related Documents ............... xvii Notation Conventions ..............xvii USING ADSP-BF592 EZ-KIT LITE Package Contents ................1-2 Default Configuration ..............1-2 CCES Install and Session Startup ..........1-4 Session Startup ................ 1-5 ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Page 7
Reset LED (LED4) ..............2-16 Power LED (LED5) ............... 2-16 Battery Charging LED (LED6) ..........2-16 Battery Low LED (LED7) ............. 2-17 BATT GOOD LED (LED8) ..........2-17 DA PWR LED (ZLED1) ............2-17 ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Page 8
Expansion Interface II Connectors (P4–5) ......2-21 Expansion Interface II Connector (P6) ........2-21 Power Connector (P9) ............2-22 USB Connector (ZP1) ............2-22 ADSP-BF592 EZ-KIT LITE BILL OF MATERIALS ADSP-BF592 EZ-KIT LITE SCHEMATIC Title Page ..................B-1 Processor and SPI Flash ..............B-2 Audio Codec ................
Page 9
PREFACE ® Thank you for purchasing the ADSP-BF592 EZ-KIT Lite , Analog Devices, Inc. low-cost, low-power consumption evaluation system for the ® ADSP-BF592 Blackfin processors. Blackfin processors embody a type of embedded processor designed specif- ically to meet the computational demands and power constraints of today’s embedded audio, video, and communications applications.
Page 10
ADSP-BF592 processor and evaluation board peripherals. Analog Devices JTAG emulators offer faster communi- cation between the host PC and target hardware. Analog Devices carries a wide range of in-circuit emulation products. To learn more about Analog Devices emulators and processor development tools, go to http://www.analog.com/dsp/tools...
“ADSP-BF592 EZ-KIT Lite Hardware Reference” on page 2-1. Purpose of This Manual The ADSP-BF592 EZ-KIT Lite Evaluation System Manual provides instructions for installing the product hardware (board). The text describes operation and configuration of the board components and pro- vides guidelines for running your own code on the ADSP-BF592 EZ-KIT Lite.
Preface Intended Audience The primary audience for this manual is a programmer who is familiar with Analog Devices processors. This manual assumes that the audience has a working knowledge of the appropriate processor architecture and instruction set. Programmers who are unfamiliar with Analog Devices processors can use this manual but should supplement it with other texts that describe your target architecture.
Manual. The manual has been updated to include CCES information. In addition, modifications and corrections based on errata reports against the previous manual revision have been made. For the latest version of this manual, please refer to the Analog Devices Web site. Technical Support...
• E-mail your questions about processors and processor applications processor.support@analog.com (Greater China support) processor.china@analog.com • In the USA only, call 1-800-ANALOGD (1-800-262-5643) • Contact your Analog Devices sales office or authorized distributor. Locate one at: www.analog.com/adi-sales • Send questions by mail to: Processors and DSP Technical Support Analog Devices, Inc.
Product Information Product Information Product information can be obtained from the Analog Devices Web site and the online help system. Analog Devices Web Site The Analog Devices Web site, , provides information www.analog.com about a broad range of products—analog integrated circuits, amplifiers, converters, and digital signal processors.
File menu). Alternative required items in syntax descriptions appear within curly {this | that} brackets and separated by vertical bars; read the example as this . One or the other is required. that ADSP-BF592 EZ-KIT Lite Evaluation System Manual xvii...
Page 18
A Warning identifies conditions or inappropriate usage of the product that could lead to conditions that are potentially hazardous for the devices users. In the online version of this book, the word Warning appears instead of this symbol. xviii ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
1 USING ADSP-BF592 EZ-KIT LITE This chapter provides specific information to assist you with development of programs for the ADSP-BF592 EZ-KIT Lite evaluation system. The following topics are covered. • “Package Contents” on page 1-2 • “Default Configuration” on page 1-2 •...
Store unused EZ-KIT Lite boards in the protective shipping package. The ADSP-BF592 EZ-KIT Lite board is designed to run outside your per- sonal computer as a standalone unit. You do not have to open your computer case.
Page 21
Figure 1-1 shows the default jumper and switch settings used in installation. Confirm that your board is in the default configuration before using the board. Figure 1-1. EZ-KIT Lite Hardware Setup ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Follow these instructions to ensure correct operation of the product soft- ware and hardware. Step 1: Connect the EZ-KIT Lite board to a personal computer (PC) run- ning CCES using one of two options: an Analog Devices emulator or via the debug agent. Using an Emulator: 1.
CCES) to the PC, the Windows driver wizard may not find the board drivers. 1. Navigate to the CCES environment via the Start menu. Note that CCES is not connected to the target board. ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Page 24
5. Select one of the following: • For standalone debug agent connections, EZ-KIT Lite and click Next. • For emulator connections, Emulator and click Next. The Select Platform page of the Session Wizard appears. ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Page 25
Using ADSP-BF592 EZ-KIT Lite 6. Do one of the following: • For standalone debug agent connections, ensure that the selected platform is ADSP-BF592 EZ-KIT Lite via Debug Agent. • For emulator connections, choose the type of emulator that is connected to the board.
There are two options to connect the EZ-KIT Lite hardware to a personal computer (PC) running VisualDSP++: via an Analog Devices emulator or via the onboard debug agent. To connect the EZ-KIT Lite to a PC via an emulator: 1.
Page 27
5. The Select Platform page of the wizard appears on the screen. For standalone debug agent connections, ensure that the selected platform is ADSP-BF592 EZ-KIT Lite via Debug Agent. For emulator connections, choose the type of emulator that is con- nected.
Delete. Click OK. CCES Evaluation License The ADSP-BF592 EZ-KIT Lite software is part of the Board Support Package (BSP) for the Blackfin ADSP-BF59x family. The EZ-KIT Lite is a licensed product that offers an unrestricted evaluation license for 90 days after activation.
• Analog Devices directly. Call (800) 262-5645 or 781-937-2384 or go to: http://www.analog.com/buyonline • Analog Devices, Inc. local sales office or authorized distributor. To locate one, go to: http://www.analog.com/salesdir/continent.asp The EZ-KIT Lite hardware must be connected and powered up to use CCES with a valid evaluation or full license.
Using ADSP-BF592 EZ-KIT Lite SPI Flash Memory Interface SPI flash memory of the ADSP-BF592 EZ-KIT Lite is a 16 Mb Numonyx M25P16 device. The device is selected via the signal. SPI0_SEL1 SPI flash memory is pre-loaded with boot code for the power-on-self test (POST) program.
The POST program is only available when using VisualDSP++. Expansion Interface II ® The expansion interface II allows an Analog Devices EZ-Extender or a custom-design daughter board to be tested across various hardware plat- forms that have the same expansion interface.
Analog Devices does not support and is not responsible for the effects of additional circuitry. Power Architecture The ADSP-BF592 EZ-KIT Lite has three primary voltage sources: a lith- ium ion battery (not included), a 5V wall adaptor, and supplied over VBUS a USB cable.
POST example. For more information on the acceptable voltage/fre- quency values, refer to the ADSP-BF592 Blackfin Embedded Processor data sheet and ADSP-BF59x Blackfin Processor Hardware Reference Manual. For more information about the digital potentiometer, refer to the AD5258 data sheet. 1-16 ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
For more information, refer to “VDDEXT Power Jumper (JP3)” on page 2-12 “VDDINT Power Jumper (JP4)” on page 2-12. ADSP-BF592 EZ-KIT Lite Evaluation System Manual 1-17...
Analog Devices board design database at: http://www.analog.com/board-design-database Example Programs Example programs are provided with the ADSP-BF592 EZ-KIT Lite to demonstrate various capabilities of the product. The programs are included in the product installation kit and can be found in the Examples folder of the installation.
Shows the locations and describes the LEDs. • “Connectors” on page 2-18 Shows the locations and provides part numbers for the on-board connectors. In addition, the manufacturer and part number infor- mation is provided for the mating parts. ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
The EZ-KIT Lite is designed to demonstrate the ADSP-BF592 Blackfin processor capabilities. The processor has an I/O voltage of 3.3V. The core voltage of the processor is controlled by an Analog Devices ADP1715 low dropout regulator (LDO) and an Analog Devices AD5258 digipot, which is configurable over the 2-wire interface (TWI) signals.
RFS1/PPI11 Land grid array, expansion interface II Default: DTSEC1/PPI12 Land grid array, expansion interface II Default: DTPRI1/PPI13 CHARGE_OFF Land grid array, expansion interface II Default: Not used. TSCLK1/PPI14 Land grid array, expansion interface II ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Page 40
Land grid array, expansion interface II Default: RSCLK0/SPI0SSEL5 RSCLK0 Land grid array, expansion interface II Default: RFS0/PPI_FS3 RFS0 Land grid array, expansion interface II Default: Not used. HWAIT/DTSEC0/SPI0SSEL6 Land grid array, expansion interface II ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Page 41
Land grid array, expansion interface II Default: Not used. PG13 SPI1SSEL1/SPI1SS/PPI5 Land grid array, expansion interface II Default: Not used. PG14 SPI1SSEL4/PPI6/TACLK1 Land grid array, expansion interface II Default: Not used. PG15 SPI1SSEL6/PPI7/TACLK2 Land grid array, expansion interface II ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Push Buttons and Switches Push Buttons and Switches This section describes operation of the push buttons and switches. The push button and switch locations are shown in Figure 2-2. Figure 2-2. Push Button and Switch Locations ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
The battery switch ( ) connects and disconnects the lithium ion battery from the EZ-KIT Lite power. When the switch is , the board can run from the battery. Jumper must be removed when . By default, ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
100 kHz. If the TWI bus interfaces with devices operating at above 100 kHz frequency, turn to prevent the bus from hanging. By default, is all ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
The push buttons are connected to the GPIO pins of the processor, respectively. The push buttons are active high and, when pressed, send a high (1) to the processor. The push button enable ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
) disconnects all of the push buttons from their corresponding GPIO pins of the processor and makes available the I/O signals to the expansion interface. Refer to “Push Button Enable Switch (SW5)” on page 2-8 for more information. 2-10 ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
ADSP-BF592 EZ-KIT Lite Hardware Reference Jumpers This section describes functionality of the configuration jumpers. Figure 2-3 shows the jumper locations. Figure 2-3. Configuration Jumper Locations ADSP-BF592 EZ-KIT Lite Evaluation System Manual 2-11...
, and the current flows through the two-pin IDC header. To measure power, remove the jumper on and measure the voltage across the precision resistor and resistance value. For more information, refer to “Power Measurements” on page 1-17. 2-12 ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
) provides a means to short out a R89 set resis- tor in the charge rate circuit of the single cell lithium ion battery. bypasses R89 when installed and effectively makes a zero ohm connection. ADSP-BF592 EZ-KIT Lite Evaluation System Manual 2-13...
When the jumper is not installed, the debug agent is configured for Windows. When the jumper is installed, the debug agent is configured for Linux. By default, is not installed (Windows mode). ZJP2 2-14 ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
ADSP-BF592 EZ-KIT Lite Hardware Reference LEDs This section describes the on-board LEDs. Figure 2-3 shows the LED locations. Figure 2-4. LED Locations ADSP-BF592 EZ-KIT Lite Evaluation System Manual 2-15...
Reset LED (LED4) When is lit (red), it indicates that the master reset of the processor is LED4 active. The reset signal is controlled by the Analog Devices ADM13305 supervisory reset circuit. Power LED (LED5) When is lit solid (green), it indicates that power is being supplied to LED5 the board properly.
(amber), it indicates that the debug agent is configured ZLED2 via USB. DA STAT LED (ZLED3) When is lit (amber), it indicates that the debug agent is ignoring the ZLED3 signal. ADSP-BF592 EZ-KIT Lite Evaluation System Manual 2-17...
This section describes connector functionality and provides information about mating connectors. The connector locations are shown in Figure 2-5. Components with a dotted outline are on the back of the board Figure 2-5. Connector Locations 2-18 ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
For more information about the land grid array, consult the Tektronix web site. Part Description Manufacturer Part Number Primary retention Tektronix 020290800 Alternate retention Tektronix 020291000 ADSP-BF592 EZ-KIT Lite Evaluation System Manual 2-19...
The battery is not connected until the switch is SW22 Part Description Manufacturer Part Number Wire to board, push-in, 16-28 WEIDMULLER 281-2020-ND Mating Battery 3.7V lithium ion battery, MOUSER 5169-UBP563450 950mAh 2-20 ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
GPIO signals of the processor. The connector is located on the upper edge of the board. For more information, see “Expansion Interface II” on page 1-14. Part Description Manufacturer Part Number 70-position 0.1”, TH header SAMTEC TSSH-135-01-L-D Mating Connector 70-position 0.1”, SMT socket SAMTEC SSW-135-22-F-D-VS ADSP-BF592 EZ-KIT Lite Evaluation System Manual 2-21...
Part Number 0.65 mm power jack 045-0883R Mating Connector 5.0VDC@3.6A power supply GLOBETEK GS-1750(R) USB Connector (ZP1) Part Description Manufacturer Part Number USB mini-b MOLEX 54819-0519 Mating Cable 6’ mini USB cable ASSMANN AK672M/2-3 2-22 ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Page 68
TP11 DSP_EMU 3.3V 0402 DSP_TRST TRST DSP_TCK DSP_TMS DSP_TDI 0.01UF DSP_TDO 0402 0402 ADSP-BF592 LFCSP64_E All USB interface circuitry is considered proprietary and has 0402 been omitted from this schematic. When designing your JTAG interface please refer to the Engineer to Engineer Note EE-68 which can be found at http://www.analog.com Default 3.3V...
P4 (expansion), 2-21 P5 (expansion), 2-21 general-purpose IO pins (GPIO), 2-8, 2-16 P6 (expansion), 2-21 P9 (power), 1-8, 2-22 ZP1 (USB), 2-22 contents, of this EZ-KIT Lite package, installation, of this EZ-KIT Lite, CCES, ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Page 75
SW5 (push button enable) DIP switch, SW6 (fuel gauge enable) switch, SW7 (reset) push button, notation conventions, xvii switches, diagram of locations, system architecture, of this EZ-KIT Lite, package contents, PF0-2 (IO) signals, 2-3, 2-16 technical support, PF3-15 signals, ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Page 76
Index UART setup switch (SW2), USB connector (ZP1), 2-22 VDDEXT pin, 1-17 power jumper (JP3), 2-12 VDDINT pin, 1-17 power jumper (JP4), 2-12 programmable regulator, 1-16 very-long instruction word (VLIW), Windows/Linux jumper (ZJP2), 2-14 ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Page 77
Index ADSP-BF592 EZ-KIT Lite Evaluation System Manual...
Page 78
