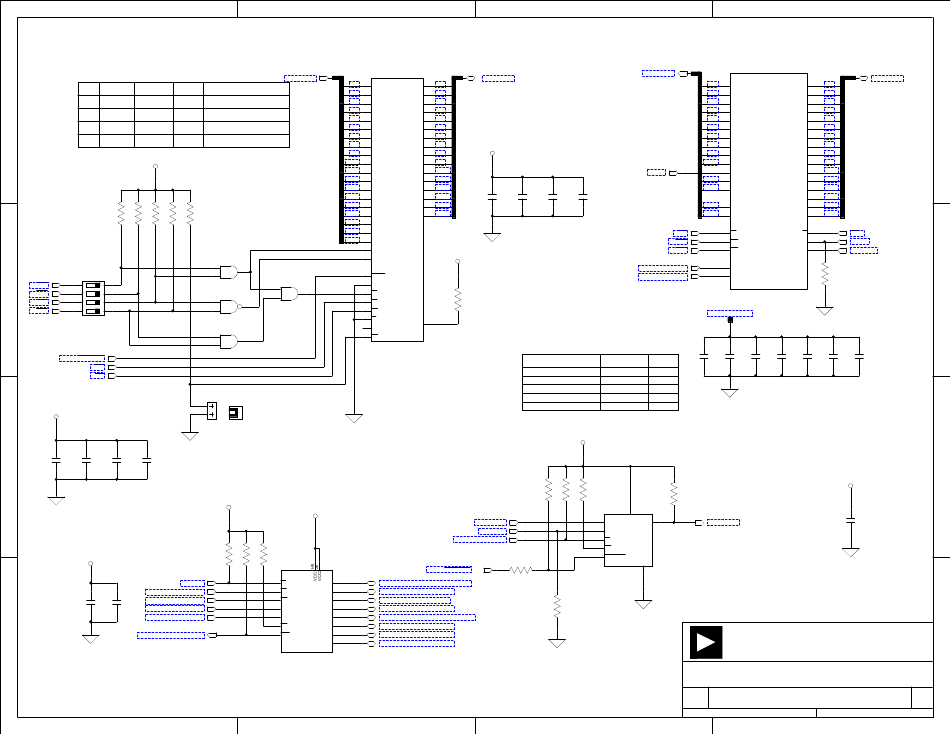

SW6: FLASH Enable
POS. FROM TO DEFAULT
SW6.1 DSP (U1) FLASH (U16) ON
1 SW6.2 DSP (U1) FLASH (U16) ON
SW6.3 DSP (U1) FLASH (U16) ON
SW6.4 DSP (U1) FLASH (U16) ON
1.8V
R30 R31 R32 R33
100K 100K 100K 100K
0402 0402 0402 0402
"FLASH ENABLE"
SW6
1 8
AMS0
2 7
2
AMS1
3 6
AMS2
4 5
AMS3
DIP4
SWT018
RESET_1P8V
ARE
AWE
1.8V
C92 C91 C90 C89
0.01UF 0.01UF 0.01UF 0.01UF
0402 0402 0402 0402
3
U9,U24,U25,U26
1.8V
NDRE#_HOSTD12
C87 C88
NDWR#_HOSTD11
0.1UF 0.01UF
0402 0402
NDALE_HOSTD15
NDCLE_HOSTD14
NDBUSY#_HOSTD13
U15
4
A
B
A[1:19]
A1 E8
ALTERNATE FUNCTION / OFF MODE
A2 D8
(Expansion Interface) A3 C8
A4 B8
(Expansion Interface)
A5 A8
(Expansion Interface) A6 B7
A7 A7
(Expansion Interface)
A8 C7
A9 A2
A10 B2
A11 C2
A12 A1
A13 B1
A14 C1
D2
A15
R34
100K A16 D1
0402
A17 D4
A18 B6
A19 A6
C6
B3
U24
1
4
2 B5
SN74LVC1G08
B4
SOT23-5 U26
1
4 E7
2
U9
1 F8
SN74LVC1G08
4
SOT23-5
2 C5
SN74AUC1G00
C4
SOT23-5
D3
U25
1 D6
4
2
SN74LVC1G08
SOT23-5
JP7
1 SJ3
SHORTING
2 JUMPER
DEFAULT=INSTALLED
IDC2X1
"CFG WP"
2Gb NAND FLASH
1.8V
1.8V
R25 R26 R24
100K 4.7K 100K
0402 0402 0402
U15
C6 H4
NDCE# CE D0
D4 J4
OE D1
C7 K4
WE D2
C4 K5
AL D3
D5 K6
CL D4
C3 J7
WP D5
C8 K7
R/~B D6
J8
D7
NAND02
TFBGA63_80_95X120
B
4 MB FLASH
(2M x 16)
U16
D[0:15]
F7 D0
A0 D0
E6 D1
A1 D1
E5 D2
A2 D2
G5 D3
A3 D3
E4 D4
A4 D4
G3 D5
A5 D5
E3 D6
A6 D6
G1 D7
A7 D7
1.8V
G7 D8
A8 D8
F6 D9
A9 D9
F5 D10
A10 D10
F4 D11
A11 D11
D5 D12
A12 D12
C86 C202
F3 D13 0.01UF 0.01UF
A13 D13
0402 0402
F2 D14
A14 D14
E2 D15
A15 D15
A16
A17
A18
U16
A19
1.8V
A20
RESET
CLK
CE
R35
4.7K
OE
0402
WE
LE
A5
VPP
WAIT
WP
M58WR032KB
VFBGA56_77X90 MEMORY MAP
ADDRESS RANGE
0x2030 0000 - 0x203F FFFF
0x2020 0000 - 0x202F FFFF
0x2010 0000 - 0x201F FFFF
0x2000 0000 - 0x200F FFFF
0x0000 0000 - 0x03FF FFFF
SPIMOSI
SPISCK
SPI_FLASH_CS
R168
0
0402
RESET_1P8V
NDD0_RMIICRSDV_HOSTD0
NDD1_ERXER_HOSTD1
NDD2_MDIO_HOSTD2
NDD3_ETXEN_HOSTD3
NDD4_RMIIREFCLK_HOSTD4
NDD5_ETXD0_HOSTD5
NDD6_ERXD0_HOSTD6
NDD7_ETXD1_HOSTD7
C
64MB SDRAM (32M x 16)
U14
A[1:19]
A1 H7
A0
A2 H8
A1
A3 J8
A2
A4 J7
A3
A5 J3
A4
A6 J2
A5
A7 H3
A6
A8 H2
A7
A9 H1
A8
A10 G3
A9
H9
SA10 A10
A12 G2
A11
A13 G1
A12
C203 C204
0.01UF 0.01UF
0402 0402
A18 G7
BA0
A19 G8
BA1
F9
SWE WE
F7
SCAS CAS
F8
SRAS RAS
E8
ABE0#/SDQM0 DQML
F1
DQMH
ABE1#/SDQM1
MT48H32M16
VFBGA54_80X90
1_8V_SDRAM
C79
0.1UF
SELECT LINE TYPE
0402
ASYNC BANK 3 FLASH
ASYNC BANK 2 FLASH
ASYNC BANK 1 FLASH
ASYNC BANK 0 FLASH
U14
NONE SDRAM
1.8V
4 Mb SPI FLASH
R169 R28 R27
10.0K 10.0K 10.0K R29
0402 0402 0402 10.0K
0402
U6 8
VCC
5 2
SI SO SPIMISO
6
SCK
1
CS
3
WP
7
RST/HOLD
GND
4
SST25WF040
SOIC8
R36
10K
0402
ANALOG
DEVICES
Title
Size Board No.
C
Date 5-12-2009_16:42
C
D
D[0:15]
A8 D0
DQ0
B9 D1
DQ1
B8 D2
DQ2
C9 D3
DQ3
C8 D4
DQ4
D9 D5
DQ5
D8 D6
DQ6
E9 D7
DQ7
E1 D8
DQ8
D2 D9
DQ9
D1 D10
DQ10
C2 D11
DQ11
C1 D12
DQ12
B2 D13
DQ13
B1 D14
DQ14
A2 D15
DQ15
G9
CS SMS
F3
CKE SCKE
F2
CLK
CLKOUT
R58
10.0K
0402
C80 C81 C82 C83 C84 C85
0.1UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF
0402 0402 0402 0402 0402 0402
1.8V
C78
0.01UF
0402
U6
