11.5
Main View

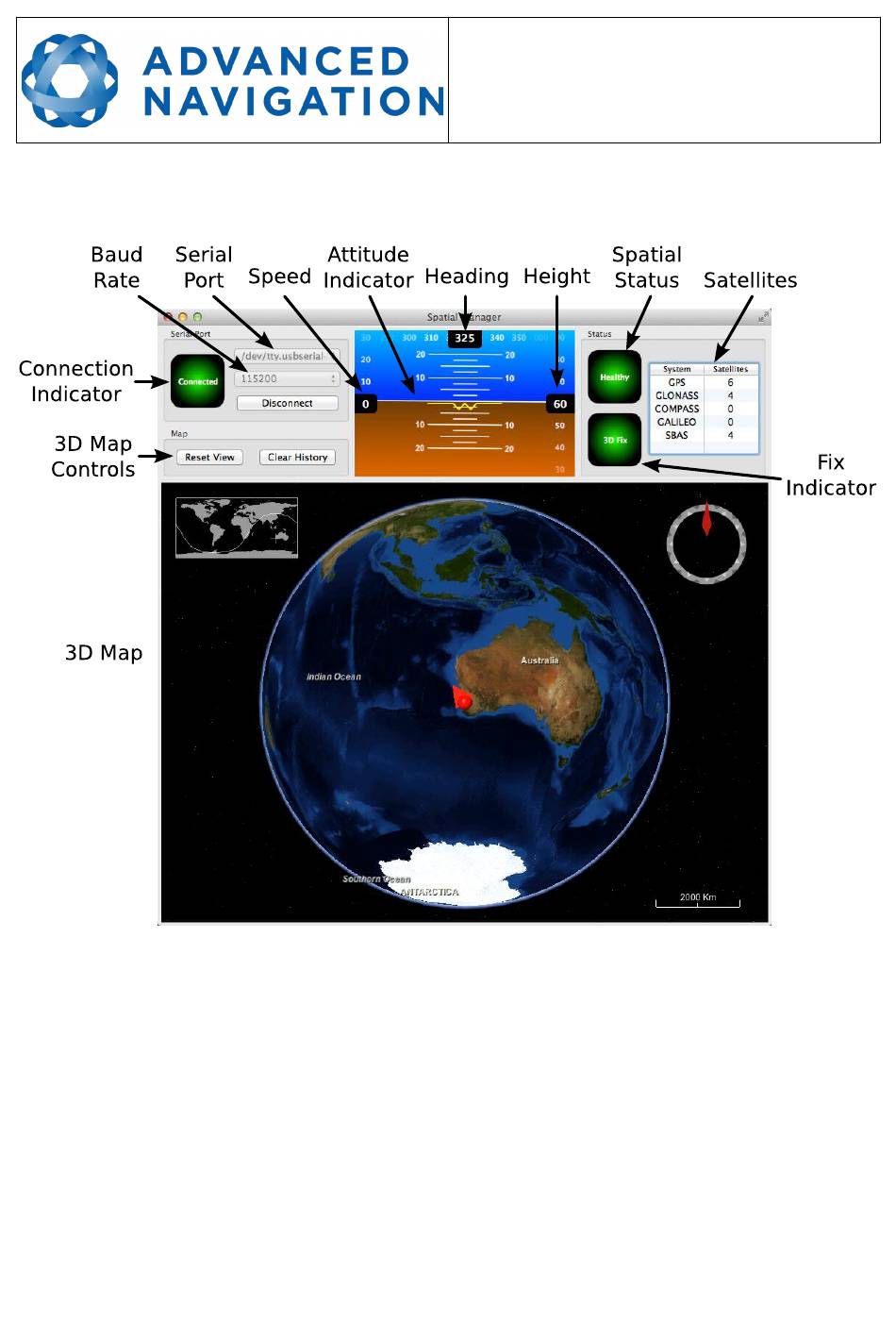

Illustration 25: Screenshot of Spatial Manager main view
11.5.1
Serial Port
The serial port dialogue is used to connect to Spatial. You should select a serial port
and baud rate and click connect. The default baud rate of Spatial is 115200. The
connection indicator displays whether there is communication with a Spatial unit.
11.5.2
Attitude Indicator
The aircraft style attitude indicator shows roll and pitch through a virtual horizon.
Around the sides heading, speed and height are shown. All units are SI (metric) and
degrees.
11.5.3
Status Indicator
The status indicator section contains a Spatial status indicator, a fix indicator and a
Spatial Reference Manual
Page 67 of 158
Version 4.4
04/06/2019
