Bit 09, Selection of ramp 1/2:
Bit 09 = "0" means that ramp 1 is active (parameters
207/208). Bit 09 = "1" means that ramp 2
(parameters 209/210) is active.
Bit 10, Data not valid/Data valid:
Is used to tell the variable frequency drive whether
the control word is to be used or ignored. Bit 10
= '0' causes the control word to be ignored, Bit
10 = '1' causes the control word to be used. This
function is relevant, because the control word is always
contained in the telegram, regardless of which type
of telegram is used, i.e. it is possible to turn off the
control word if you do not wish to use it in connection
with updating or reading parameters.
Bit 11, No function:
Bit 11 = digital output control.
Bit 12, No function:
Bit 12 = relay output control.
Bit 13/14, Selection of Setup:
Bits 13 and 14 are used to choose from the four menu
Setups according to the following table:
Setup Bit 14
1 0
2 0
3 1
4 1
The function is only possible when Multi-Setups is
selected in parameter 004 Active Setup .
Note: I parameter 507 Selection of Setup a selection
is made to define how Bit 13/14 gates with the
corresponding function on the digital inputs.
Bit 15 Reverse
Bit 15 = '0' causes no reverse.
Bit 15 = '1' causes reverse.
Note: In the factory setting reverse is set to digital
in parameter 506 Reverse. Bit 15 only causes
reverse when either Ser. communication , Logic
or or Logic and is selected.
156

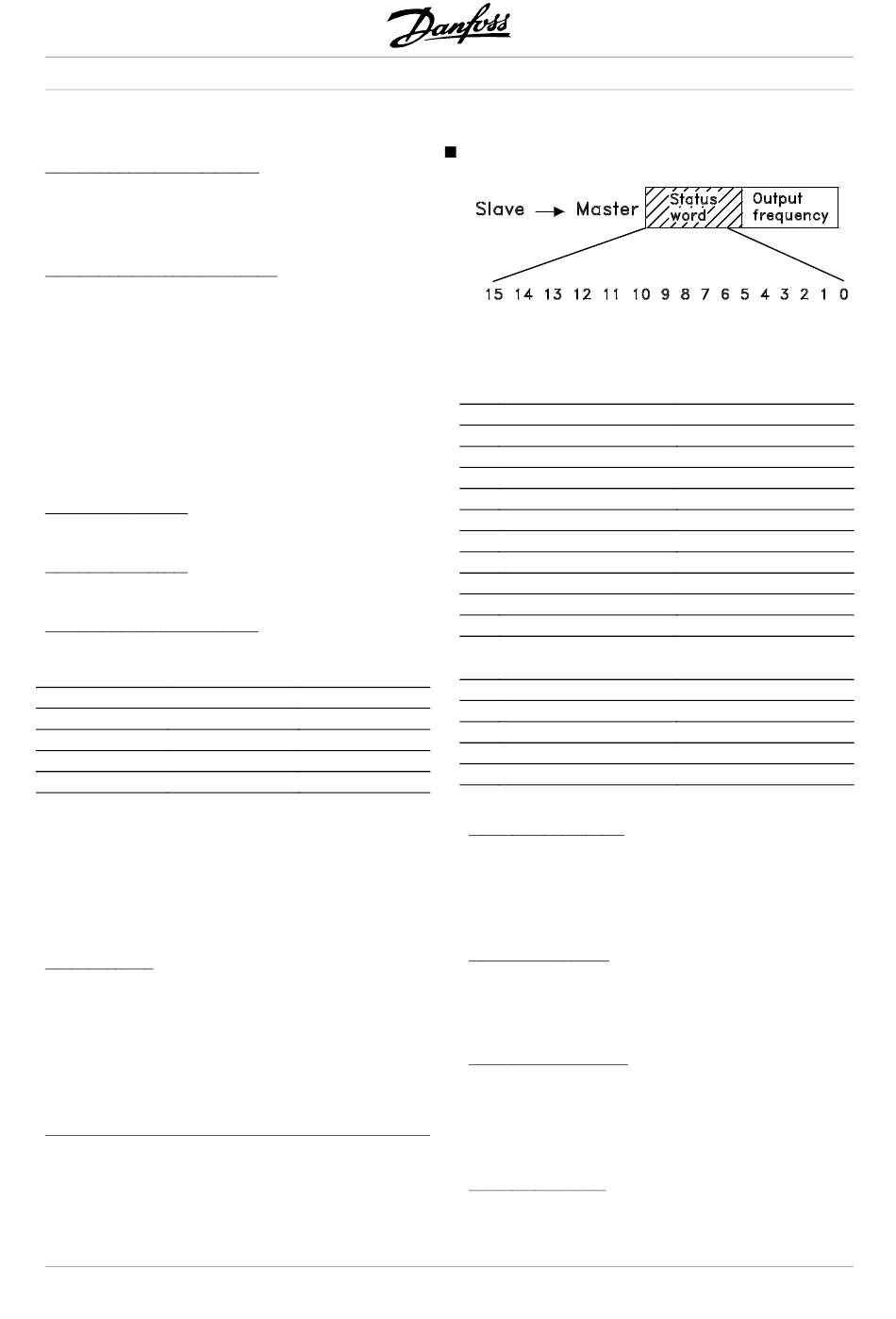

Status Word according to FC Profile

The status word is used to inform the master
(e.g. a PC) of the slave's (variable frequency
drive) mode. Slave Master.
Bit
00
01
02
03
04
05
06
07
08
09
10
11
Bit 13
12
0
13
1
14
0
15
1
Bit 00, Control ready:
Bit 00 = '1'. The variable frequency drive
is ready for operation.
Bit 00 = '0'. The variable frequency drive is
not ready for operation.
Bit 01, Drive ready:
Bit 01 = '1'. The variable frequency drive is ready for
operation, but there is an active coasting command
via the digital inputs or via serial communication.
Bit 02, Coasting stop:
Bit 02 = '0'. The variable frequency drive
has released the motor.
Bit 02 = '1'. The variable frequency drive can start
the motor when a start command is given.
Bit 03, No trip/trip:
Bit 03 = '0' means that the variable frequency
drive is not in fault mode.
Decentral Solutions
Bit = 0
Coasting stop
No trip
Not used
Not used
No warning
Speed ≠ ref.
Local control
Outside
frequency range
MG.90.F2.22 - VLT is a registered Danfoss trademark
Bit =1
Control ready
Drive ready
Trip
Trip lock
Warning
Speed = ref.
Ser. communi.
Frequency limit
OK
Motor running
Voltage warn.
Current limit
Thermal warn.
