Par. 215 Preset reference 1 = 5.00%
Par. 216 Preset reference 2 = 10.00%
Par. 217 Preset reference 3 = 25.00%
Par. 218 Preset reference 4 = 35.00%
Setup 2 contains the following preset references:
Par. 215 Preset reference 1 = 40.00%
Par. 216 Preset reference 2 = 50.00%
Par. 217 Preset reference 3 = 70.00%
Par. 218 Preset reference 4 = 100.00%
MG.90.F2.22 - VLT is a registered Danfoss trademark
Decentral Solutions
This table shows what the output frequency is:
Preset Preset
ref., msb ref., lsb
0 0
0 1
1 0
1 1
0 0
0 1
1 0
1 1

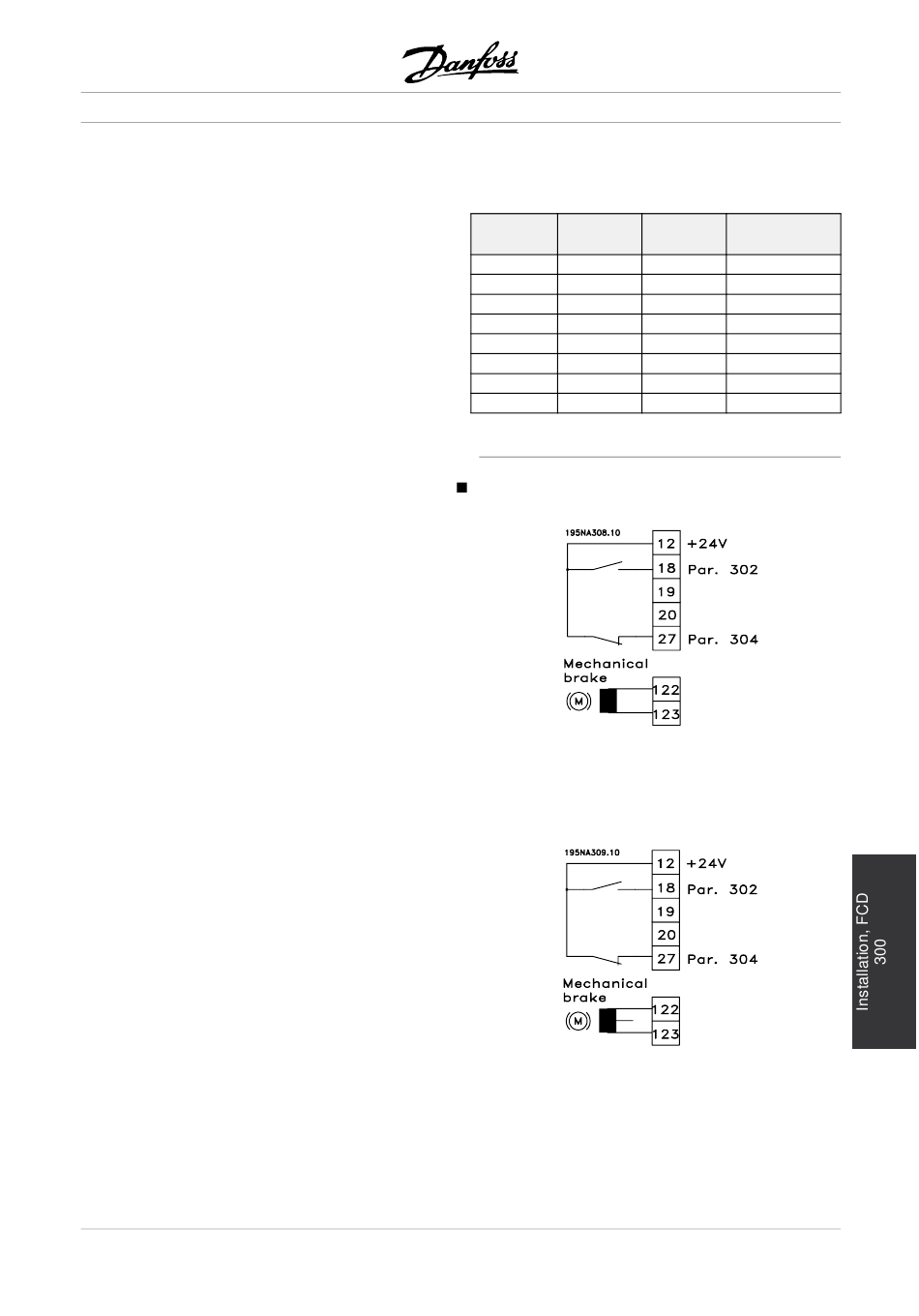

Connection of mechanical brake
Using terminal 122/123
Par. 302 Digital input = Start [7]
Par. 304 Digital input = Coasting stop inverted [2]
See also par. 138, 139, 140
Mechanical brake with accelerator winding
Par. 302 Digital input = Start [7]
Par. 304 Digital input = Coasting stop inverted [2]
See also par. 138, 139, 140
Selection Output
of Setup frequency[Hz]
0 2.5
0 5
0 10
0 17.5
1 20
1 25
1 35
1 50
