Status Word According To Profidrive Protocol - Danfoss VLT DMS 300 Manual

Bit Bit = 0
00 OFF 1
01 OFF 2
02 OFF 3
03 Coasting stop
04 Quick stop
05 Freeze outp. freq.
06 Ramp stop
07
08
09
10 Data not valid
11
12
13 Select Setup (lsb)
14 Select Setup (msb)
15
Bit 00-01-02, OFF1-2-3/ON1-2-3:
Bit 00-01-02 = '0' causes ramp stop, which uses the
ramp time in parameters 207/208 or 209/210.
If Relay 123 is selected in parameter 323 Relay
output, the output relay will be activated when
the output frequency is 0 Hz.
Bit 00-01-02 = '1' means that the variable
frequency drive can start the motor if the other
starting conditions are fulfilled.
Bit 03, Coasting stop:
See description under Control word according
to FC protocol.
Bit 04, Quick stop:
See description under Control word according
to FC protocol.
Bit 05, Freeze output frequency:
See description under Control word according
to FC protocol.
Bit 06, Ramp stop/start:
See description under Control word according
to FC protocol.
Bit 07, Reset:
See description under Control word according
to FC protocol.
Bit 08, Jog 1:
Bit 08 = "1" means that the output frequency is
determined by parameter 09 Bus jog 1.
158
Bit =1
ON 1
ON 2
ON 3
Start
Reset
Bus jog 1
Bus jog 2
Data valid
Slow down
Catch-up
Reverse

Status word according to Profidrive protocol

Decentral Solutions
Bit 09, Jog 2:
Bit 09 = "1" means that the output frequency is
determined by parameter 510 Bus jog 2.
Bit 10, Data not valid/Data valid:
See description under Control word according
to FC protocol.
Bit 11, Slow-down:
Used to reduce the speed reference by the value in
parameter 219 Catch-up/slow-down reference.
Bit 11 = '0' does not cause any change to the reference.
Bit 11 = '1' means that the reference is reduced.
Bit 12, Catch-up:
Used to increase the speed reference by the value in
parameter 219 Catch-up/slow-down reference.
Bit 12 = '0' does not cause any change to the reference.
Bit 12 = '1' means that the reference is increased.
If both Slow down and Catch-up are activated (Bits
11 and 12 = "1"), slow down has the highest priority,
i.e. that the speed reference is reduced.
Bit 13/14, Selection of Setup:
See description under Control word according
to FC protocol.
Bit 15 Reverse:
See description under Control word according
to FC protocol.

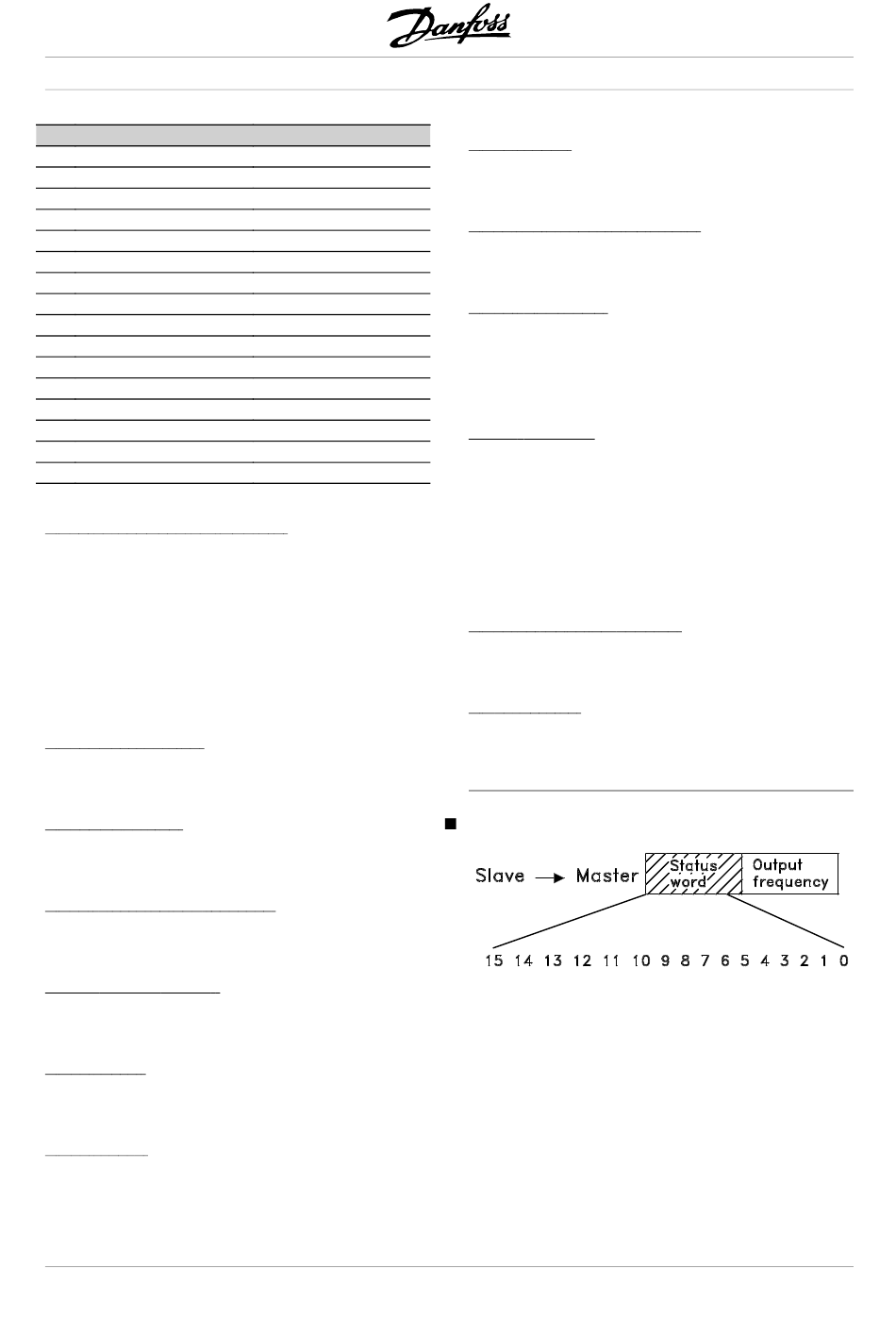

The status word is used to inform the master
(e.g. a PC) of the slave's (variable frequency
drive) mode. Slave Master.
