another. The active Setup can be selected in parameter
004 Active Setup. When an LCP control unit is
connected, the active Setup number will be appear
in the display under "Setup". It is also possible to
preset the variable frequency drive to Multisetup, so
that it is possible to shift Setups using the digital inputs
or serial communication. Setup shift can be used
in a plant in which, for example, one Setup is used
for daytime operation and another one at night time.
In parameter 006 Setup copying it is possible to
copy from one Setup to another. Using parameter
007 LCP copy all Setups can be transferred from
one variable frequency drive to another by moving
the LCP control panel. First all parameter val ues
are copied to the LCP control panel, which can then
be moved to another variable frequency drive. Here
all parameter values can be copied from the LCP
control unit to the variable frequency drive.

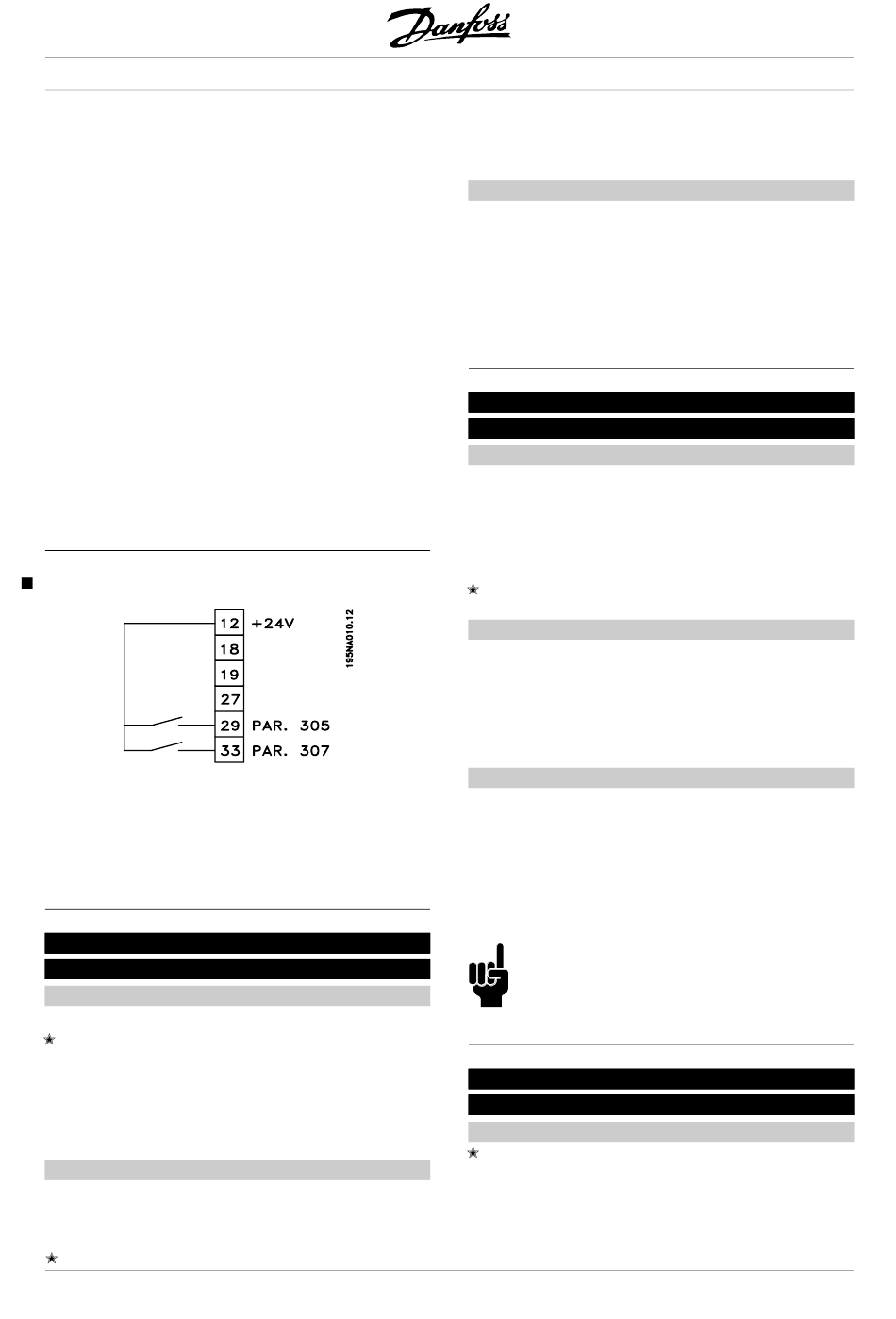

Setup shift
- Selection of Setup via terminals 29 and 33.
Par. 305 Digital input = Selection of Setup, lsb [31]
Par. 307 Digital input = Selection of Setup, msb [32]
Par. 004 Active setup = Multi Setup [5]
004 Active Setup
(ACTIVE SETUP)
Value:
Factory Setup (FACTORY SETUP)
setup 1 (SETUP 1)
setup 2 (SETUP 2)
Setup 3 (SETUP 3)
setup 4 (SETUP 4)
Multi Setup (MULTI SETUP)
Function:
The active parameter Setup is selected here. All
parameters can be programmed in four individual
parameter Setups. Shifts between Setups can
= factory setting. () = display text [] = value for use in communication via serial communication port
100
Decentral Solutions
be made in this parameter via a digital input
or via serial communication.
Description of choice:
Factory Setup [0] contains the factory-set parameter
values. Setup 1-4 [1]-[4] are four individual
Setups which can be selected as required. Multi
Setup [5] is used where remote-controlled shifts
between the four Setups via a digital input or via
serial communication is required.
005 Programming Setup
(EDIT SETUP)
Value:
Factory Setup (FACTORY SETUP)
Setup 1 (SETUP 1)
Setup 2 (SETUP 2)
Setup 3 (SETUP 3)
Setup 4 (SETUP 4)
Active Setup (ACTIVE SETUP)
Function:
You can select which Setup you want to program
during operation (applies both via the control panel
and the serial communication port). It is, for example,
possible to program Setup 2 [2], while the active Setup
is set to Setup 1 [1] in parameter 004 Active Setup .
Description of choice:
Factory Setup [0] contains the factory-set data and can
be used as a source of data if the other Setups are to be
reset to a known status. Setup 1-4 [1]-[4] are individual
Setups that can be programmed freely during operation.
If Active Setup [5] is selected, the programming Setup
will be equal to parameter 004 Active Setup.
NOTE
If data is modified or copied to the active
Setup, the modifications have an immediate
[0]
effect on the unit's operation.
[1]
[2]
006 Setup copying
[3]
(SETUP COPY)
[4]
[5]
Value:
No copying (NO COPY)
Copy to Setup 1 from #
(COPY TO SETUP 1)
MG.90.F2.22 - VLT is a registered Danfoss trademark
[0]
[1]
[2]
[3]
[4]
[5]
[0]
[1]
