1.

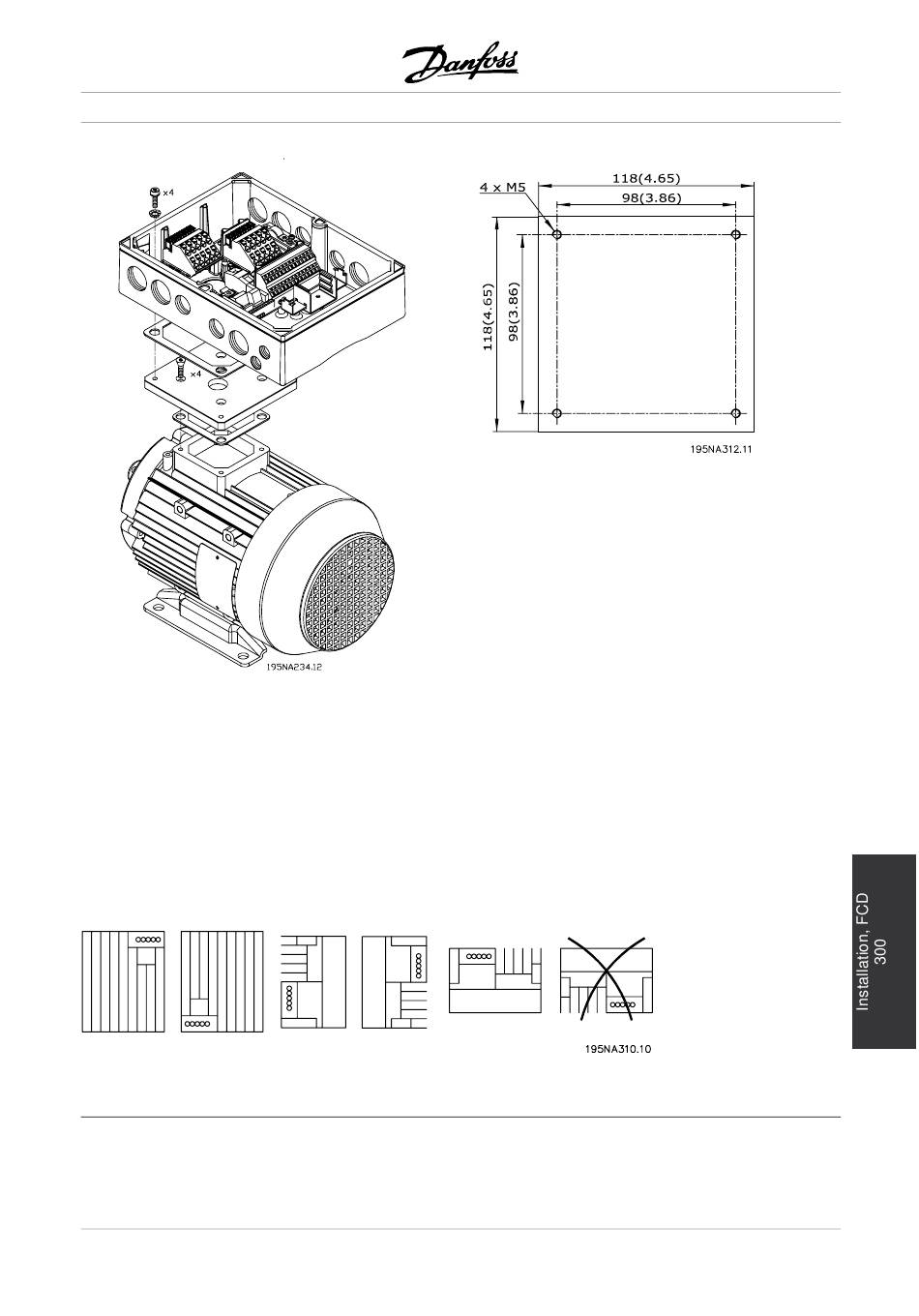

Prepare the adaptor plate for mounting on
the motor by drilling the fixing holes and the
hole for the cables.
2.
Mount the plate on the motor with the normal
terminal box gasket.
3.
Knock out the 4 screw holes for mounting
the adaptor plate (outer holes).
4.
Mount the terminal box onto the motor by the
4 sealing screws and the gasket supplied.
Use the supplied star washers for securing
PE connection according to EN 60204. The
screws must be tightened with 5 Nm.
Allowed mounting positions
MG.90.F2.22 - VLT is a registered Danfoss trademark
Decentral Solutions
Universal adaptorplate
