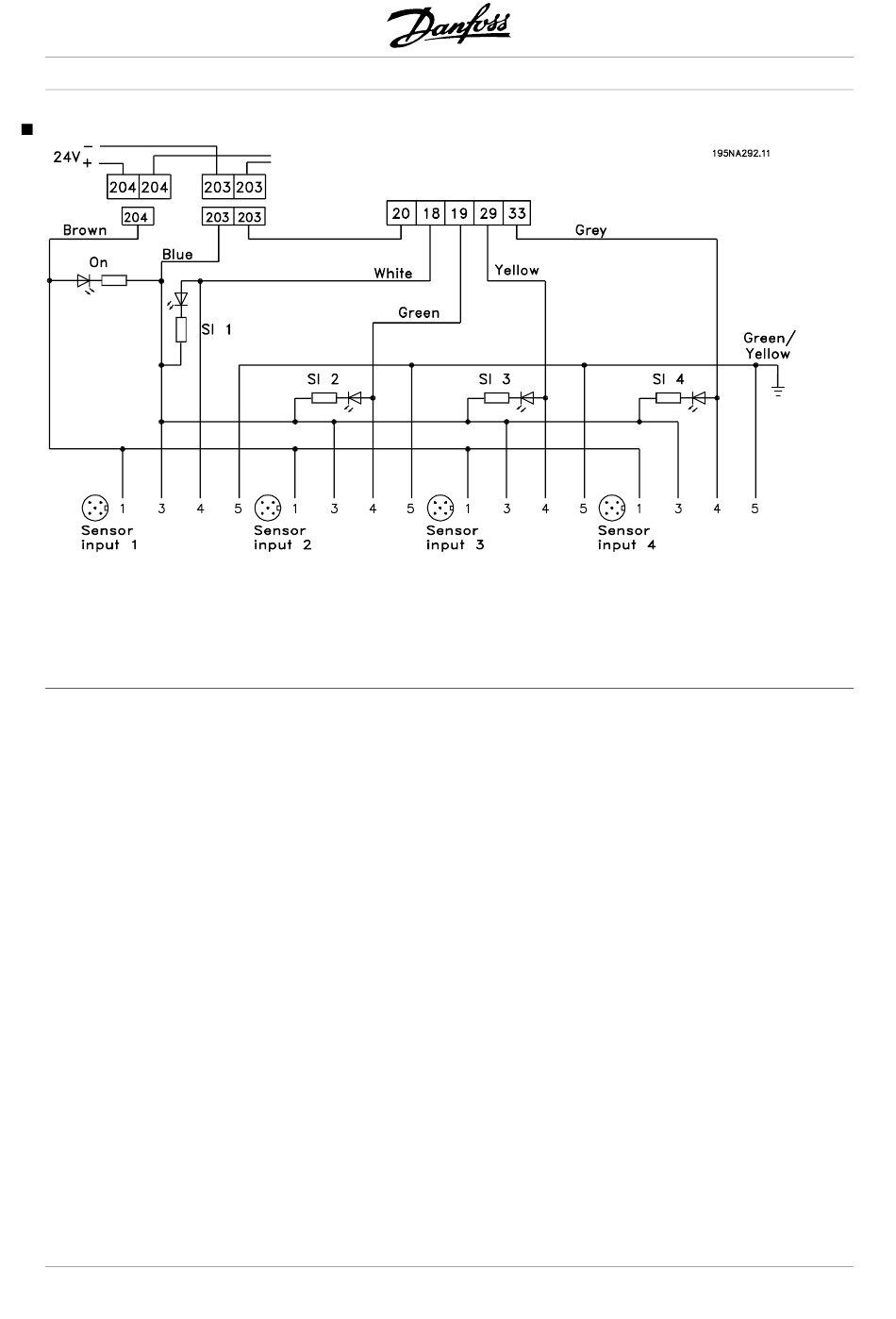

Connection of sensors to M12 plugs for T73
For rating specifications see the Operating Instructions
MG.04.BX.YY, digital inputs terminals 18, 19, 29, 33.
Terminals 203/204 are used for sensor supply.
Terminal 203 = common
86
Decentral Solutions
Terminal 204 = +24 V
Terminals 201/202 can be used for a separate
24 V supply.
