Par. 316 Terminal 60, max. scaling = 20 mA

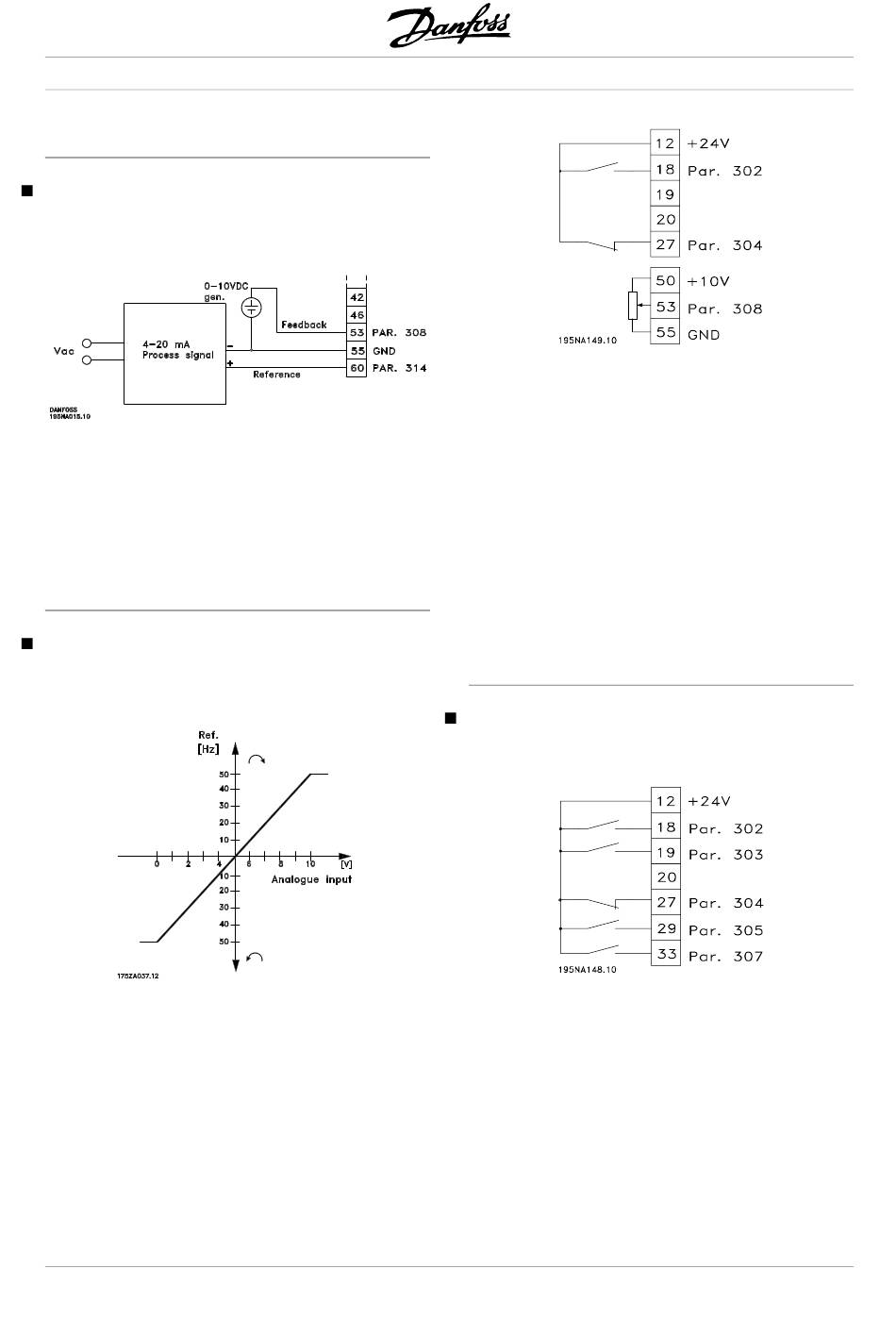

4-20 mA reference
4-20 mA reference on terminal 60 and speed
feedback signal on terminal 53.
Par. 100 Configuration = Speed closed loop [1]
Par. 308 Analog input = Feedback [2]
Par. 309 Terminal 53, min. scaling = 0 Volt
Par. 310 Terminal 53, max. scaling = 10 Volt
Par. 314 Analog input = Reference [1]
Par. 309 Terminal 60, min. scaling = 4 mA
Par. 310 Teminal 60, max. scaling = 20 mA
50 Hz counter-clockwise to 50 Hz clockwise.
With internally supplied potentiometer.
90
Decentral Solutions
Par. 100 Configuration = Speed regulation
open loop [0]
Par. 200 Output frequency range = Both
directions, 0-132 Hz [1]
Par. 203 Reference range = Min. ref. - Max. ref. [0]
Par. 204 Min. reference = - 50 Hz
Par. 205 Max. reference = 50 Hz
Par. 302 Digital input = Start [7]
Par. 304 Digital input = Coasting stop inverted [2]
Par. 308 Analog input = Reference [1]
Par. 309 Terminal 53, min. scaling = 0 Volt.
Par. 310 Terminal 53, max. scaling = 10 Volt.
Preset references
Switch between 8 preset references via two digital
inputs and Setup 1 and Setup 2.
Par. 004 Active Setup = Multisetup 1 [5]
Par. 204 Min. reference = 0 Hz
Par. 205 Max. reference = 50 Hz
Par. 302 Digital input = Start [7]
Par. 303 Digital input = Choice of Setup, lsb [31]
Par. 304 Digital input = Coasting stop inverted [2]
Par. 305 Digital input = Preset ref., lsb [22]
Par. 307 Digital input = Preset ref., msb [23]
Setup 1 contains the following preset references:
