The LCP 2 control unit, option

The FCD 300 can be combined with an LCP control
unit (Local Control Panel - LCP 2) which makes up a
complete interface for operation and programming of
the variable frequency drive. The LCP 2 control unit can
be attached up to nine feet from the variable frequency
drive, e.g. on a front panel, using an accessory kit.

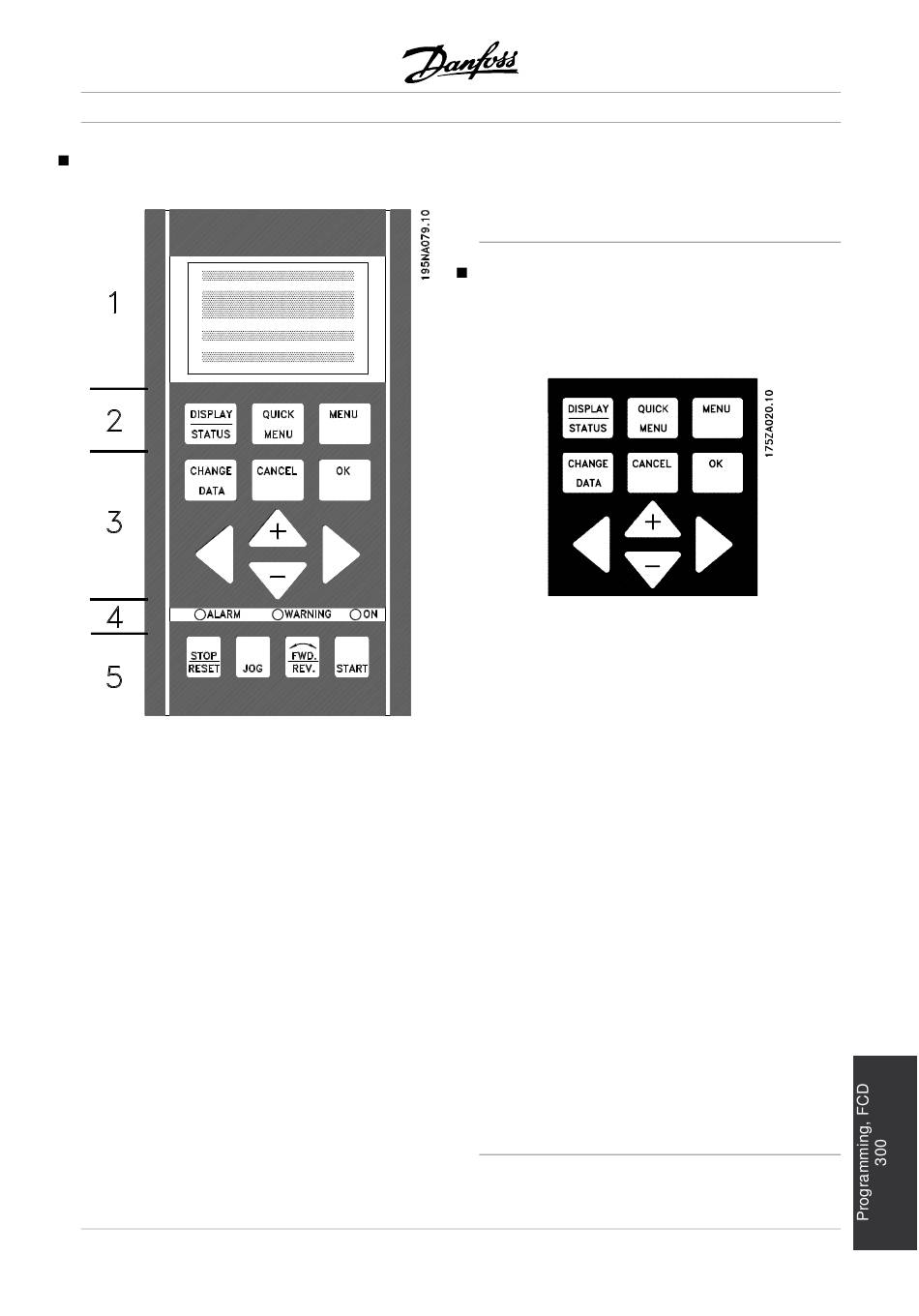

The control panel is divided into five functional groups:
1. Display.
2. Keys used to change the display function.
3. Keys used to change the program parameters.
4. LEDs.
5. Local control keys.
All data is displayed via a 4-line alphanumeric
display, which during normal operation will be able
to continuously display 4 items of operating data
and 3 operating modes. During programming all
information needed for quick, effective parameter setup
of the variable frequency drive will be displayed. As
a supplement to the display, there are three LEDs for
voltage (ON), warning (WARNING) and alarm (ALARM).
All variable frequency drive parameter Setups can be
MG.90.F2.22 - VLT is a registered Danfoss trademark
Decentral Solutions
changed immediately from the control panel, unless
this function has been programmed as Locked [1]
via parameter 018 Lock for data changes.
Control keys for parameter Setup
The control keys are divided into functions, in such a
way that the keys between the display and the indicator
lamps are used for parameter Setup, including selection
of the display's view mode during normal operation.
[DISPLAY/STATUS] is used to select the display's
view mode or to change back to Display mode
from either Quick Menu or Menu mode.
[QUICK MENU] provides access to the parameters
used in the Quick Menu. It is possible to switch
between Quick Menu and Menu mode.
[MENU] gives access to all parameters. It is possible
to switch between Menu mode and Quick Menu.
[CHANGE DATA] is used to change a parameter that
has been selected either in Menu mode or Quick Menu.
[CANCEL] is used if a change to the selected
parameter is not to be implemented.
[OK] is used to confirm a change to a
selected parameter.
[+ / -] are used for selecting parameters and
for changing parameter values.
These keys are also used in Display mode to switch
between the readouts of operating variables.
[< >] are used for selecting parameter group and to
move the cursor when changing a numerical value.
