Rear View - Delta Modulon DPH series User Manual

Turn on the Bypass Switch (Q0)
(ON)
ON I
3. For STS module information, please refer to 5.7 STS Module.
4. For the power module slots, please follow on-site requirements to install appropriate
number of power modules (optional) into the slots. Please refer to 5.8 Power Module
(Optional) for relevant information.
2.7

Rear View

WARNING:
Only authorized Delta engineers or service personnel can perform installation,
wiring, panel & cover removal, maintenance and operation. If you want to execute
any action mentioned above by yourself, the action must be under the supervision
of authorized Delta engineers or service personnel.

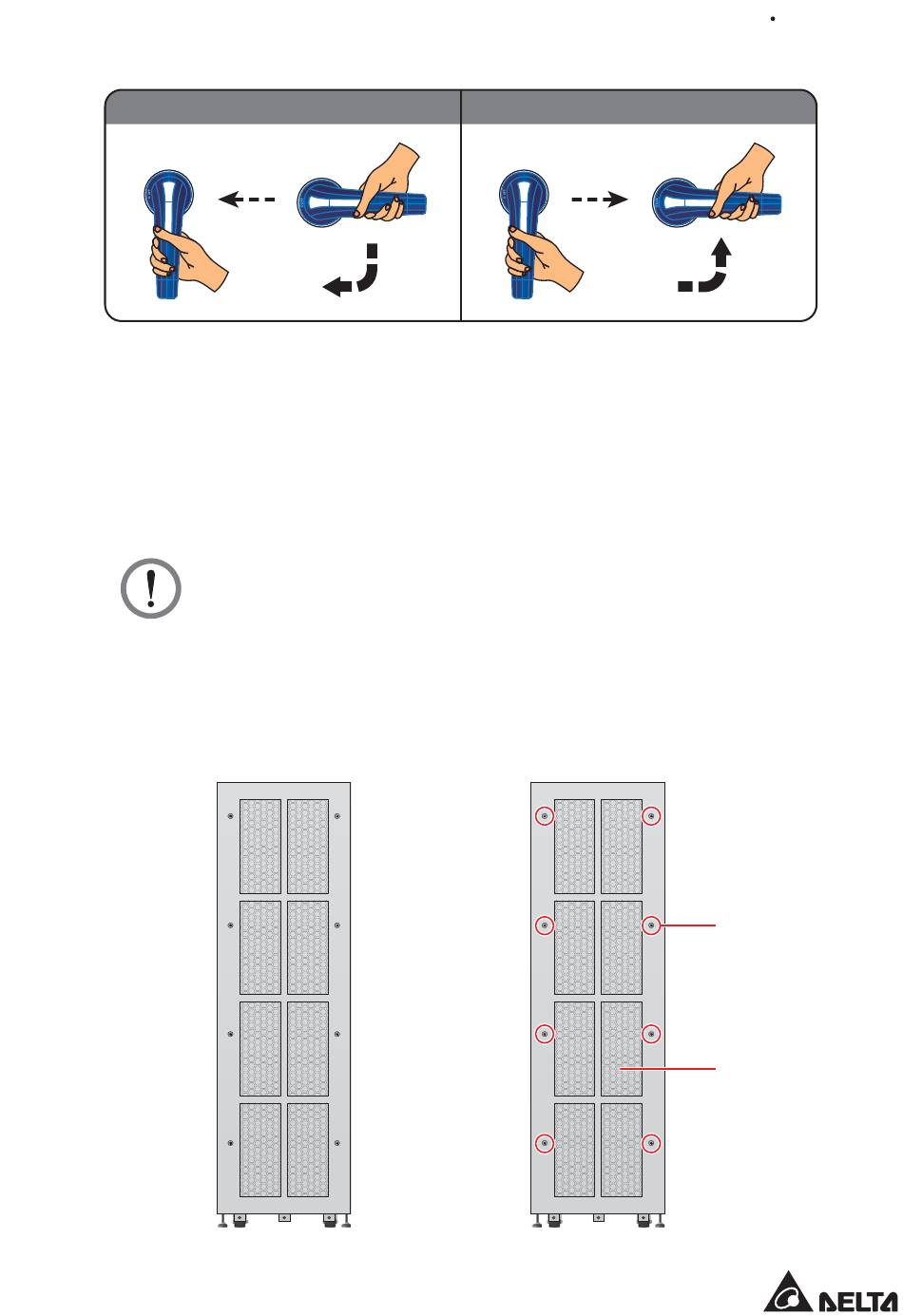

The rear view of the UPS is shown in Figure 2-6. Please remove the rear panel (there are
eight screws (see Figure 2-7) to see the wiring terminals shown in Figure 2-8 ~ Figure 2-10.
(Figure 2-6: UPS Rear View)
(OFF)
ON I
90°
(Figure 2-5: Turn On/ Off the Bypass Switch (Q0))
(Rear)
Turn off the Bypass Switch (Q0)
(ON)
ON I
(Rear)
(Figure 2-7: UPS Rear Panel and Screw Location)
2-9
2 Introduction
(OFF)
ON I
90°
M5 Screw X 8
Rear Panel
