Delta Modulon DPH series User Manual page 183

7
UPS-1.1 MEASUREMENT
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
System Status
90 %
5 mins

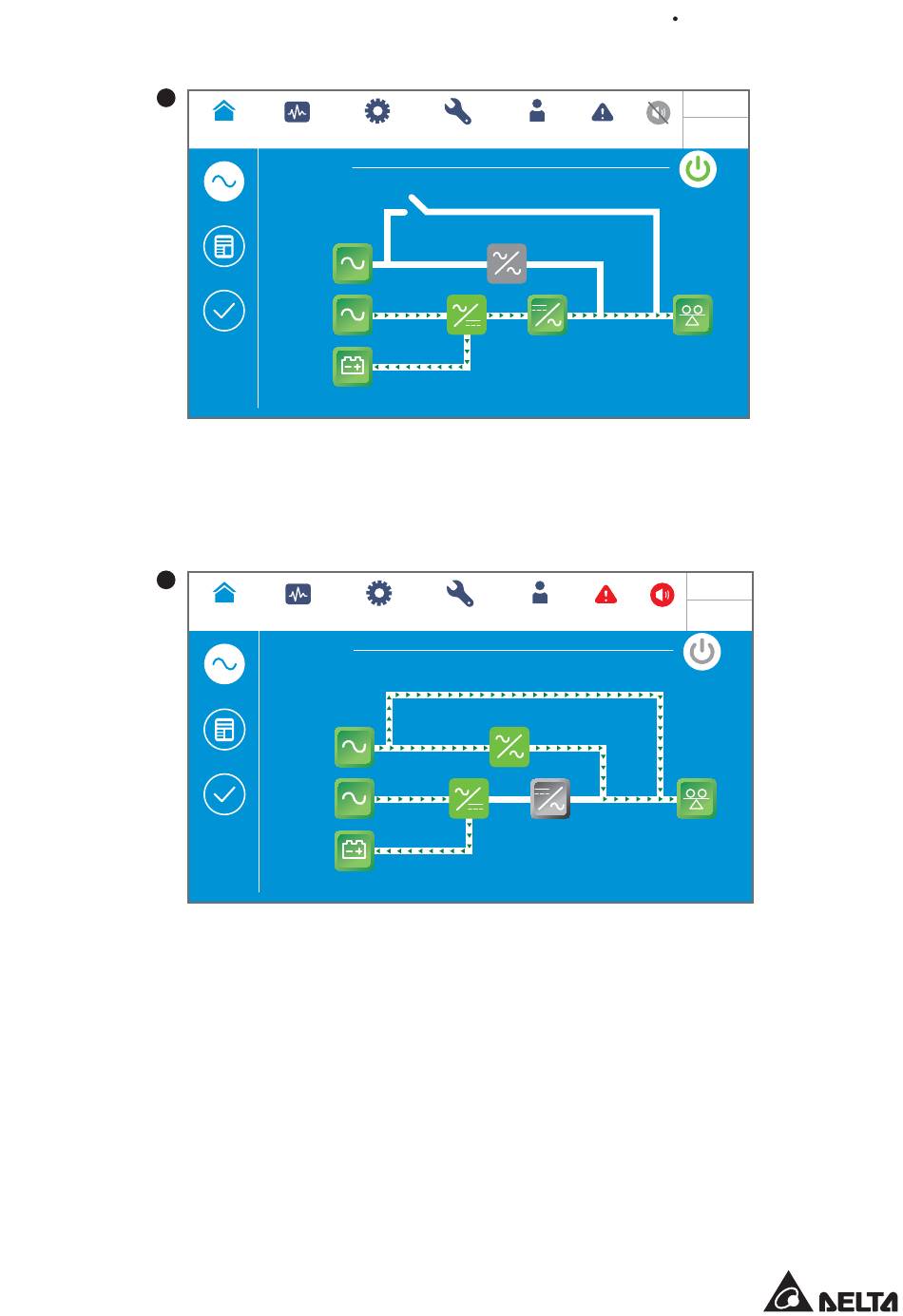

The screen above indicates that the UPS is in frequency conversion mode and the bypass
output is restricted. For frequency conversion mode settings, please refer to 7.10.2 Mode
Setting and 6.2.6 Frequency Conversion Mode Start-up Procedures.
8
UPS-1.1 MEASUREMENT
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
System Status
90 %
5 mins
After the Delta or non-Delta external maintenance bypass cabinet's manual bypass breaker
or switch (Q3) is turned on, the UPS will be switched to manual bypass mode, and the
screen above will appear. Before maintenance personnel perform maintenance, the UPS
must be switched to this mode and it must be ensured that all input power and battery power
are disconnected. After power disconnection, the LCD will be off. If there is any sudden
malfunction in the bypass, the loads will lose power and become unprotected. Please refer to
6.2.4 Manual Bypass Mode Start-up Procedures.
SETUP MAINTENANCE LOG IN
Administrator
SETUP MAINTENANCE LOG IN
Administrator
7-15
7 LCD Display & Settings
10:15
May 25,2018
Frequency
EVENT LOG
Conversion
Load
30 %
10:15
2
May 25,2018
WARNING
Bypass
Load
30 %
