Delta Modulon DPH series User Manual page 159

UPS-1.1 MEASUREMENT
Power Flow
POWER FLOW
Maintenance
Power Flow
Bypass
Bypass
Summary
Mains
System Status
90 %
5 mins

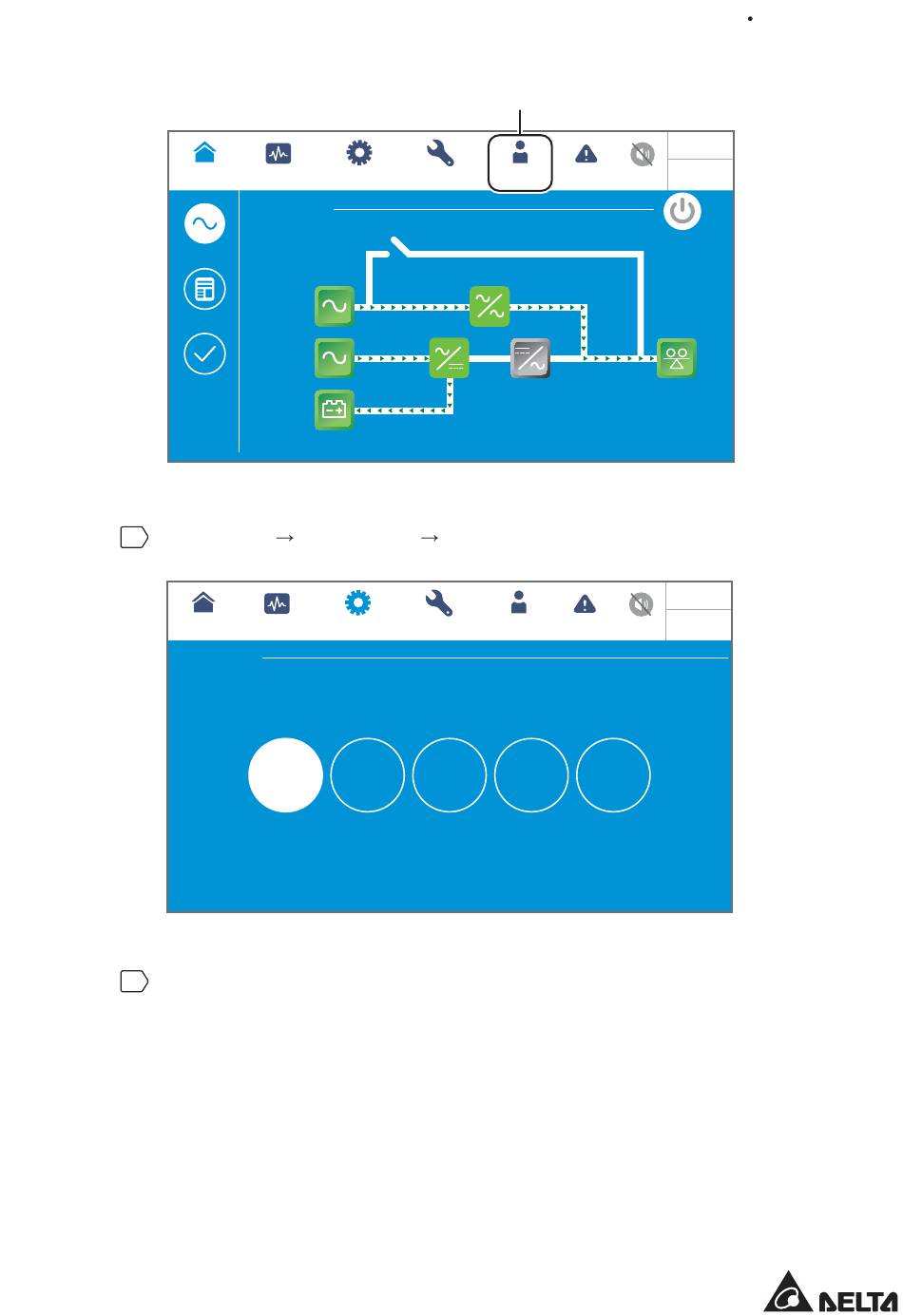

(Figure 6-55 : Bypass Mode Screen_ Administrator Login)
5 Click SETUP
UPS-1.1 MEASUREMENT
MODE SETTING
On-Line
6 Single Input:
Switch OFF the UPS's bypass switch (Q0), Delta or non-Delta external maintenance
bypass cabinet's input breaker or switch (Q1) and output breaker or switch (Q4).
Dual Input:
Switch OFF the UPS's bypass switch (Q0), Delta or non-Delta external maintenance
bypass cabinet's input breaker or switch (Q1), bypass breaker or switch (Q2) and output
breaker or switch (Q4).
Administrator Login
SETUP MAINTENANCE
Mode Setting On-Line.
SETUP MAINTENANCE
Mode Setting
Select to change system mode
Green ECO
(Figure 6-56 : Select On-Line Mode)
6-41
LOG IN EVENT LOG
Administrator
Load
30 %
LOG IN EVENT LOG
Administrator
Energy Frequency
Recycle Conversion
6 UPS Operation
10:15
May 25,2018
Bypass
10:15
May 25,2018
Bypass
