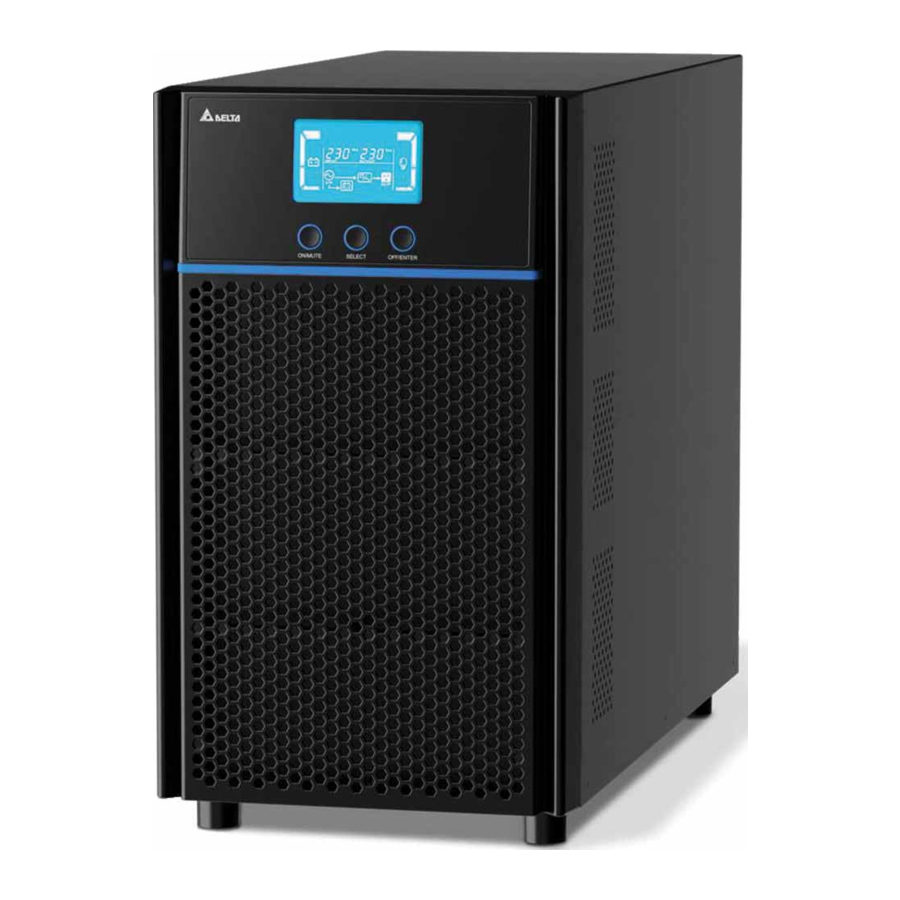

Delta N Gen3 Series, UPA102N2NX0B035, UPA202N2NX0B035, UPA302N2NX0B035, UPA102N2NX0B0BA, UPA302N2NX0B0BA, UPA202N2NX0B0BB Manual

Installation and Setup

NOTE:
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use.

Rear Panel View

• Standard Runtime Model


• Extended Runtime Model


1. AC input
2. Input circuit breaker
3. USB port
4. RS-232 port
5. Mini slot
6. Output socket

7. External battery connector
8. Output terminal
9. REPO Port

Operating Principle

The operating principle of the UPS is shown as below:

Setup the UPS

1. Connection of battery wires (optional)
   NOTE:
   Only applicable to KC (0BA) model and extended runtime model.
   If the extended runtime function is to be adopted, please connect external batteries as shown below.

   Please refer to the figure below to secure the battery cable to the terminal with the suitable screws and nuts.

2. UPS input connection
   Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords.

   • The power cord will be delivered with the UPS. For the type of power cord, please refer to the table below.

Table 1: Power Cords for Different UPS Models

3. UPS output connection
   • For output sockets, simply connect devices to the outlets.
   • For output terminals, please follow the steps below for the wiring configuration:
     1. Remove the small cover of the terminal block.
     2. We suggest using AWG 12 ~ 10 or 3.3mm² ~ 5.3mm² power cords for 3kVA. Please install a circuit breaker (40A) between the mains and the AC input of the 3kVA UPS for safe operation.
     3. Upon the completion of the wiring configuration, please check whether the wires are securely affixed.
     4. Install the small cover back to the rear panel.
4. Communication connection
   To allow shutdown/ start-up and status monitoring for unattended UPS, connect one end of the communication cable to the USB/ RS-232 port and the other to the communication port of your PC. With the monitoring software installed, you can schedule UPS shutdown/ start-up and monitor UPS status via your PC.
   The UPS is equipped with a Mini slot perfect for Delta Mini SNMP IPv6, Mini Relay I/O, or Mini Modbus card (optional). After the Mini card is installed in the UPS, advanced communication and monitoring functions will be available.

   NOTE:
   1. The USB port and the RS-232 port cannot work at the same time.
   2. If you choose to use the USB port instead of the RS-232 port, please install the USB driver software in your computer after connecting your computer to the UPS's USB port. The software can be http://datacenter-softwarecenter.deltaww.com
5. Disabling/ enabling of REPO function
   NOTE:
   Only applicable to KC (0BA) model and extended runtime model.
   Keep pin 1 and pin 2 closed for UPS normal operation. To activate REPO function, cut the wire between pin 1 and pin 2.
   The REPO port can be connected to an external switch. After the external switch is turned to the "OPEN" position, the UPS will switch off the inverter immediately and cut off the UPS output without transferring to the bypass mode.
   NOTE:
   The REPO port can also be used for ROO application, which allows you remotely turn on/ off the inverter. If you need detailed ROO information or ROO setup service, please contact your local dealer or customer service.
6. Turn-on of the UPS
   Press the ON/ MUTE button on the front panel for two seconds to power on the UPS.
   NOTE:
   UPS will be available for full runtime capability after the initial five-hour charging (only for standard runtime model).
7. Installation of software
   For optimal system protection, install UPS monitoring software to fully configure UPS. Please download the software from http://datacenter-softwarecenter.deltaww.com

Battery Replacement

Consider all warnings, cautions, and notes before replacing batteries.
NOTE:
Upon battery disconnection, equipment is not protected from power outages.

Operation

Button Operation

LCD Panel

Display	Function
1 Remaining backup time information
	Indicates the remaining backup time in a pie chart.
	Indicates the remaining backup time in numbers. H: hour, M: minute, S: second
2 Fault information
	Indicates that the warning and fault occurs.
	Indicates the warning and fault codes, and the codes are listed in details in 3.7 fault reference code.
3 Mute operation
	Indicates that the UPS alarm is disabled.
4 Output & Battery voltage information
	Indicates the output voltage, frequency or battery voltage. Vac: output voltage, Vdc: battery voltage, Hz: frequency
5 Load information
	Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%.
	Indicates overload.
	Indicates the load or the UPS output is short circuit.
6 Mode operation information
	Indicates the UPS connects to the mains.
	Indicates the battery is working.
	Indicates the bypass circuit is working.
Display	Function
	Indicates the ECO mode is enabled.
	Indicates the inverter circuit is working.
	Indicates the output is working.
7 Battery information
	Indicates the battery level by 0-25%, 26-50%, 51-75%, and 76-100%.
	Indicates the battery is fault.
	Indicates low battery level and low battery voltage.
8 Input & Battery voltage information
	Indicates the input voltage or frequency or battery voltage. Vac: Input voltage, Vdc: battery voltage, Hz: input frequency

Audible Alarm

LCD Display Wordings Index

Abbreviation	Display Content	Meaning
ENA		Enable
DIS		Disable
ESC		Escape
HLS		High loss
LLS		Low loss
BAT		Battery
CF		Converter
TP		Temperature
CH		Charger
FU		Bypass frequency unstable
EE		EEPROM error

UPS Setting

There are three parameters to set up the UPS.

Parameter 1: It is for function selection. Refer to the table below.
Parameter 2 and Parameter 3 are the setting options or values for each program.

01: Output voltage setting

Parameter 3: Output voltage
You may choose the following output voltage:
200: presents output voltage is 200Vac
208: presents output voltage is 208Vac
220: presents output voltage is 220Vac
230: presents output voltage is 230Vac (Default)
240: presents output voltage is 240Vac

02: Frequency converter enable/ disable

Parameter 2 & 3: Enable or disable converter mode. You may choose the following two options.
CF ENA: converter mode enable
CF DIS: converter mode disable (Default)

03: Output frequency setting

Parameter 2 & 3: Output frequency setting.
If the battery mode is enabled, you may choose the following initial frequency.
BAT 50: presents output frequency 50Hz
BAT 60: presents output frequency 60Hz
If the converter mode is enabled, you may choose the following output frequency.
CF 50: presents output frequency 50Hz
CF 60: presents output frequency 60Hz

04: ECO enable/ disable

Parameter 3: Enable or disable ECO function. You may choose the following two options.
ENA: ECO mode enable
DIS: ECO mode disable (Default)

05: ECO voltage range setting

Parameter 2 & 3: Set an acceptable high voltage point and a low voltage point for ECO mode by pressing the Down key or Up key.
HLS: High loss voltage in ECO mode in parameter 2.
The setting range in parameter 3 is from +7V to +24V of the nominal voltage. (Default: +12V)
LLS: Low loss voltage in ECO mode in parameter 2.
The setting range in parameter 3 is from -7V to -24V of the nominal voltage. (Default: -12V)

06: Bypass enable/ disable when the UPS is off

Parameter 3: Enable or disable bypass function. You may choose the following two options.
ENA: Bypass enable
DIS: Bypass disable (Default)

07: Bypass voltage range setting

Parameter 2 & 3: Set the acceptable high voltage point and acceptable low voltage point for bypass mode by pressing the Down key or Up key.
HLS: Bypass high voltage point
230-264: setting the high voltage point in parameter 3 from 230Vac to 264Vac. (Default: 264Vac)
LLS: Bypass low voltage point
170-220: setting the low voltage point in parameter 3 from 170Vac to 220Vac. (Default: 170Vac)

08: Discharging time limitation

Parameter 3: Set the discharging time limitation in battery mode for general outlets.
0 ~ 999: Set up the discharging time limitation in minutes from 0 ~ 999 for general outlets in battery mode.
0: When setting as "0", the discharging time will be only 10 seconds.
999: When setting as "999", the discharging time limitation will be disabled (Default).

09: Total battery AH

Parameter 3: Set up total battery AH value of the UPS. (unit: AH)
7-999: Set up the total battery capacity from 7 to 999. Please set up this figure if external battery pack is connected.
If the UPS is standard runtime model, the default setting is 9AH.

00: Exit Setting

Exit the setting mode.

Operating Mode Description

• Online Mode
  When the input voltage is within the acceptable range, the UPS will provide pure sine wave and stable AC power to output. The UPS will also charge the battery in online mode.

• ECO Mode
  Energy saving mode: When the input voltage is within voltage regulation range, the UPS will run in bypass mode to supply power to output for energy saving.

• Frequency Converter Mode
  When the input frequency is between 40 Hz and 70 Hz, the UPS can be set at a constant output frequency, 50 Hz or 60 Hz. The UPS will still charge batteries under this mode.

• Battery Mode
  When the input voltage is beyond the acceptable range or a power failure has occurred, the UPS will backup power from batteries and an alarm will be sounding every 4 seconds.

• Bypass Mode
  When the input voltage is within the acceptable range but the UPS is overloaded, the UPS will enter bypass mode or bypass mode can be set via the front panel. The alarm is sounding every 10 seconds.

• Standby Mode
  The UPS is powered off and there is no output, but the batteries can still be charged.


Faults Reference Code

Fault Event	Error Code	Icon
Bus start fail	01	x
Bus over	02	x
Bus under	03	x
Bus unbalance	04	x
Inverter soft start failure	11	x
Inverter voltage high	12	x
Inverter voltage Low	13	x
Inverter output short	14
Battery voltage too high	27
Battery voltage too low	28
Over temperature	41	x
Overload	43
Charger failure	45	x

Warning Indicator

Warning	Icon (flashing)	Alarm
Low battery		Sounding every second
Overload		Sounding twice every second
Battery is not connected		Sounding every second
Over charge		Sounding every second
Over temperature		Sounding every second
Charger failure		Sounding every second
Battery fault		Sounding every second
Out of bypass voltage range		Sounding every second
Bypass frequency unstable		Sounding every second
EEPROM error		Sounding every second

Optional Accessories

Troubleshooting

When an error occurs, please follow the table below to solve the according issues.

Symptom	Possible Cause	Remedy
No indication and alarm even though the mains is normal.	The AC input power is not connected well.	Check if the input power cord firmly connected to the mains.
	The AC input is connected to the UPS output.	Plug the AC input power cord to the AC input correctly.
The icons and are flashing on the LCD display and the alarm is sounding every second.	The external or internal batteries are incorrectly connected.	Check if all batteries are connected well.
Error code 27 or 28 is shown and the icon is lighting on the LCD display and the alarm is continuously sounding.	Battery voltage is too high/ low or the charger is fault.	Contact your local dealer or customer service.
The icons and are flashing on the LCD display and the alarm is sounding twice every second.	The UPS is overloaded.	Remove excess loads from the UPS output.
	The UPS is overloaded. Devices connected to the UPS are fed directly by the electrical network via the bypass.	Remove excess loads from the UPS output.
	After repetitive overloads, the UPS is locked in bypass mode. Connected devices are fed directly by the mains.	Remove excess loads from the UPS output first. Then shut down the UPS and restart it.
Error code 43 is shown and the icon is lighting on the LCD display and the alarm is continuously sounding.	The UPS shuts down automatically because of overload at the UPS output.	Remove excess loads from the UPS output and restart it.
Error code 14 is shown and the icon is lighting on the LCD display and the alarm is continuously sounding.	The UPS shuts down automatically because short circuit occurs on the UPS output.	Check output wiring and if connected devices are in short circuit status.
Error code 01, 02, 03, 04, 11, 12, 13, 41 or 45 is shown on the LCD display and the alarm is continuously sounding.	An UPS internal fault has occurred. There are two possible results: The load is still supplied, but directly from AC power via bypass. The load is no longer supplied by the power.	Contact your local dealer or customer service.
Battery backup time is shorter than nominal value	Batteries are not fully charged.	Charge the batteries for at least 5 hours and then check capacity. If the problem still persists, consult your dealer.
	Batteries are damaged.	Contact your dealer to replace the batteries.

If the error that appears not list in the table above, please contact service personnel for possible cause and solution.

Storage and Maintenance

• Operation
  The UPS system contains no user-serviceable parts. If the battery service life (3~5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact your dealer.
  NOTE :
  Be sure to deliver the spent battery to a recycling facility or ship it to your dealer in the replacement battery packing material.
• Storage
  Before storage, charge the UPS for 5 hours. Store the UPS covered and upright in a cool and dry location. During storage, recharge the battery in accordance with the following table:

Technical Specifications

Standard Runtime Model

NOTE:

1. *¹ De-rating to 70% load.
2. *2 Only for KC (0BA) model.
3. *3 Audible noise test with UPS < 70% load at 25°C (77°F) in online mode.
4. Please refer to the rating label for the safety certification.
5. All specifications are subject to change without prior notice.

Extended Runtime Model

NOTE:

1. *¹ De-rating to 80% load.
2. *² Audible noise test with UPS < 70% load at 25°C (77°F) in online mode.
3. Please refer to the rating label for the safety certification.
4. All specifications are subject to change without prior notice.

Important Safety Warnings

Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully.

Transportation

• Please transport the UPS system only in the original package to protect against shock and impact.

Preparation

• Install the UPS in a well-ventilated indoor area, away from excess moisture, heat, dust, flammable gas or explosives. To avoid fire accidents and electric shock, the indoor area must be free of conductive contaminants. For the temperature and humidity specifications, please refer to Technical Specifications.
• Do not block ventilation holes in the UPS housing.

Installation

• Do not connect appliances or devices which would overload the UPS system (e.g. laser printers) to the UPS output sockets.
• It is not recommended to connect the UPS with following type of loads. For the load suitability please contact Delta customer service before purchasing.
  1. Regenerative loads (e.g. CNC machine and lifts)
  2. Asymmetrical loads (e.g. fans with half-bridge drivers and laser printers)
• Place cables in such a way that no one can step on or trip over them.
• Do not connect domestic appliances such as hair dryers to the UPS output sockets.
• The UPS can be operated by any individuals with no previous experience.
• Connect the UPS system only to an earthed shockproof outlet which must be easily accessible and close to the UPS system.
• Please use only VDE-tested, CE-marked mains cable (e.g. the mains cable of your computer) to connect the UPS system to the building wiring outlet (shockproof outlet).
• Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS system.
• When installing the equipment, please ensure that the sum of the leakage current of the UPS and the connected devices does not exceed 3.5mA.

Operation

• Do not disconnect the mains on the UPS system or the building wiring outlet (shockproof socket outlet) during operations since this would cancel the protective earthing of the UPS system and of all connected loads.
• The UPS system features its own, internal current source (batteries). The UPS output sockets or output terminals block may be electrically live even if the UPS system is not connected to the building wiring outlet.
• In order to fully disconnect the UPS system, first press the OFF/ ENTER button to disconnect the mains.
• Before usage, you must allow the UPS to adjust to room temperature for at least one hour to ensure that there is no moisture condensing inside the UPS.
• Do not pour and splash any liquid on the UPS. Do not insert any object into the UPS's slits and openings. Do not put beverages on or around the UPS.

Maintenance, Service and Faults

• The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified maintenance personnel.

  Risk of electric shock. Even after the unit is disconnected from the mains (building wiring outlet), components inside the UPS system are still connected to the battery and electrically live and dangerous.
• Before carrying out any kind of service and/ or maintenance, disconnect the batteries and verify that no current is present and no hazardous voltage exists in the terminals of high capability capacitor such as BUS-capacitors.
• Only qualified personnel can perform battery replacement. Unauthorized personnel shall be kept away from the batteries.

  Risk of electric shock. The battery circuit is not isolated from the input voltage. Hazardous voltages may occur between the battery terminals and the ground. Before touching, please verify that no voltage is present!
• The following precautions should be observed before battery replacement:
  • Remove watches, rings, or any other metal objects.
  • Use tools with insulated handles.
  • Wear rubber gloves and boots.
  • Do not lay tools or metal parts on the top of batteries.
  • Disconnect charging source prior to connecting or disconnecting the battery input terminals.
  • Remove every battery grounding during installation and maintenance to reduce the likelihood of electric shock. If any part of the batteries is grounded, please remove the grounding connection.
• When changing batteries, install the same number and same type of batteries.
• Do not dispose of batteries in a fire. The batteries may explode.
• Do not open or destroy batteries. The released electrolyte is harmful to skin and eyes and may be toxic.
• Please replace the fuse only with the same type and amperage in order to avoid fire hazards.
• Do not dismantle the UPS system.

Packing List

NOTE:
*¹ For more model information, please refer to Technical Specifications.
*² This item may differ according to different models, please refer to Table 1.
