Delta Modulon DPH series User Manual page 172

(UPS Front View with Door Open)
2 About 20 seconds after the touch panel lights up, the main screen will appear (shown in
Figure 7-4). After the main screen appears, the touch panel could be used. Please note
that when the main screen is shown, the login status is User.
Modulon DPH Series
DISPLAY BATT.
EXT. BATT EXT.SWITCH O/P DRY I/P DRY START
TEMP. STATUS CONTACT CONTACT
BT1 BT2 S1 S2 P1 P2 P3 P1 P2
PARALLEL
REPO BATT.
NC NO START
BT3 BT4 S3 S4 P4 P5 P6 P3 P4 PARALLEL USB RS-232
BYPASS SWITCH
ON I

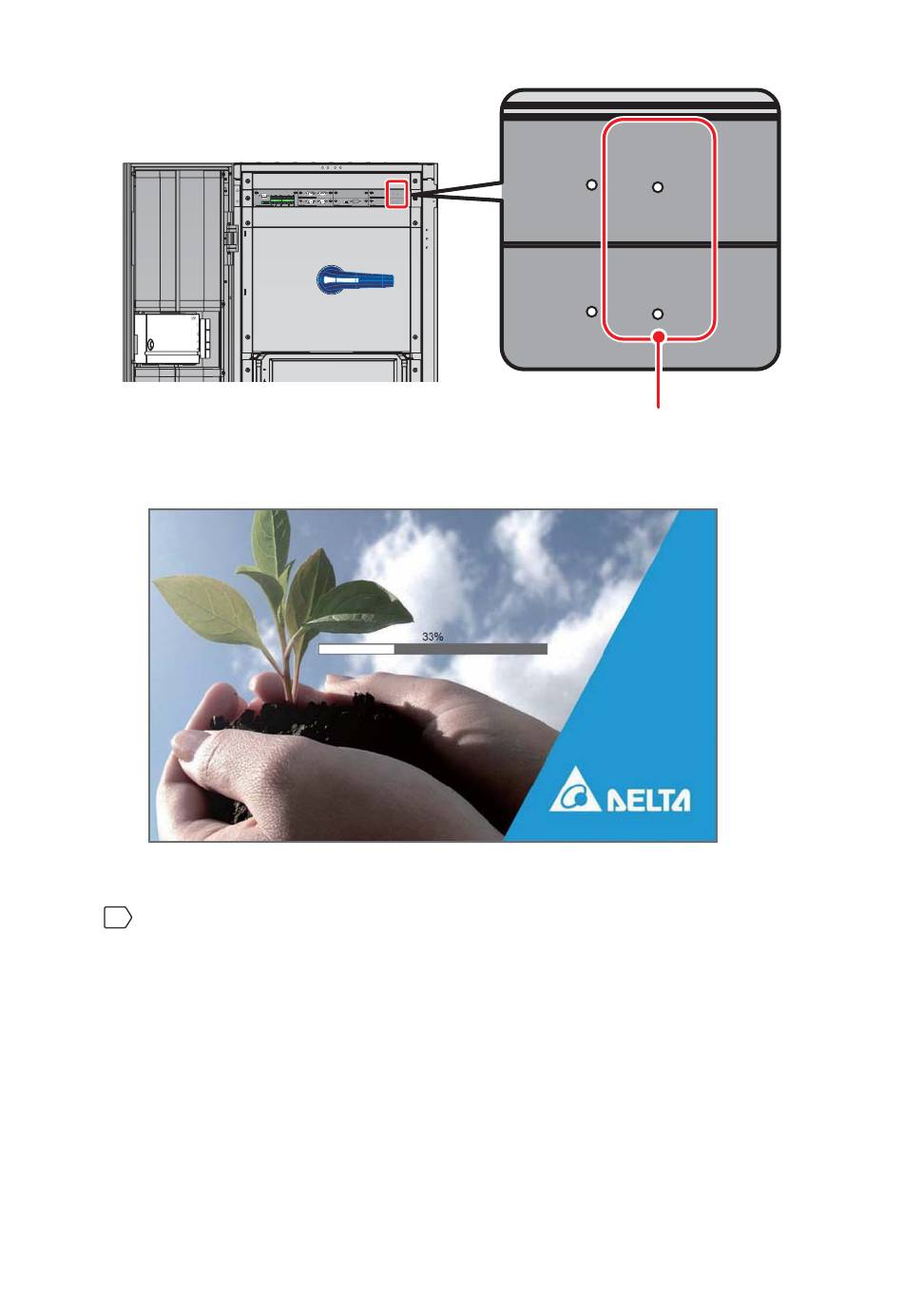

(Figure 7-2: The Position of Battery Start Buttons)
(Figure 7-3: Initialization Screen of Touch Panel)
Battery Start Button x 2
7-4
BATT.
START
BATT.
START
