UPS-1.1 MEASUREMENT
MODE SETTING
On-Line
9 After manually selecting Green mode via the LCD, press the icon (
upper left corner of the screen to go back to the Main Screen.
10
Press the ON/ OFF button (
if you want to power on the UPS's inverter. Please select 'YES'.
UPS-1.1 MEASUREMENT
Power Flow
11
After selection of 'YES' to start up the UPS's inverter, each power module will start up
and perform self-inspection. At the same time, the system begins synchronization with
the bypass AC source. After the self-inspection is completed, the UPS will automatically
transfer to run in green mode and the system will automatically detect the output status
(i.e. total load capacity %) to decide which specific power modules should be fully
powered on or idle in order to achieve higher efficiency of the UPS. Now, the tri-color
LED indicator illuminates green and the following screen appears. For the tri-color LED
indicator location, please refer to Figure 2-11.
SETUP MAINTENANCE
Mode Setting
Select to change system mode
Green ECO

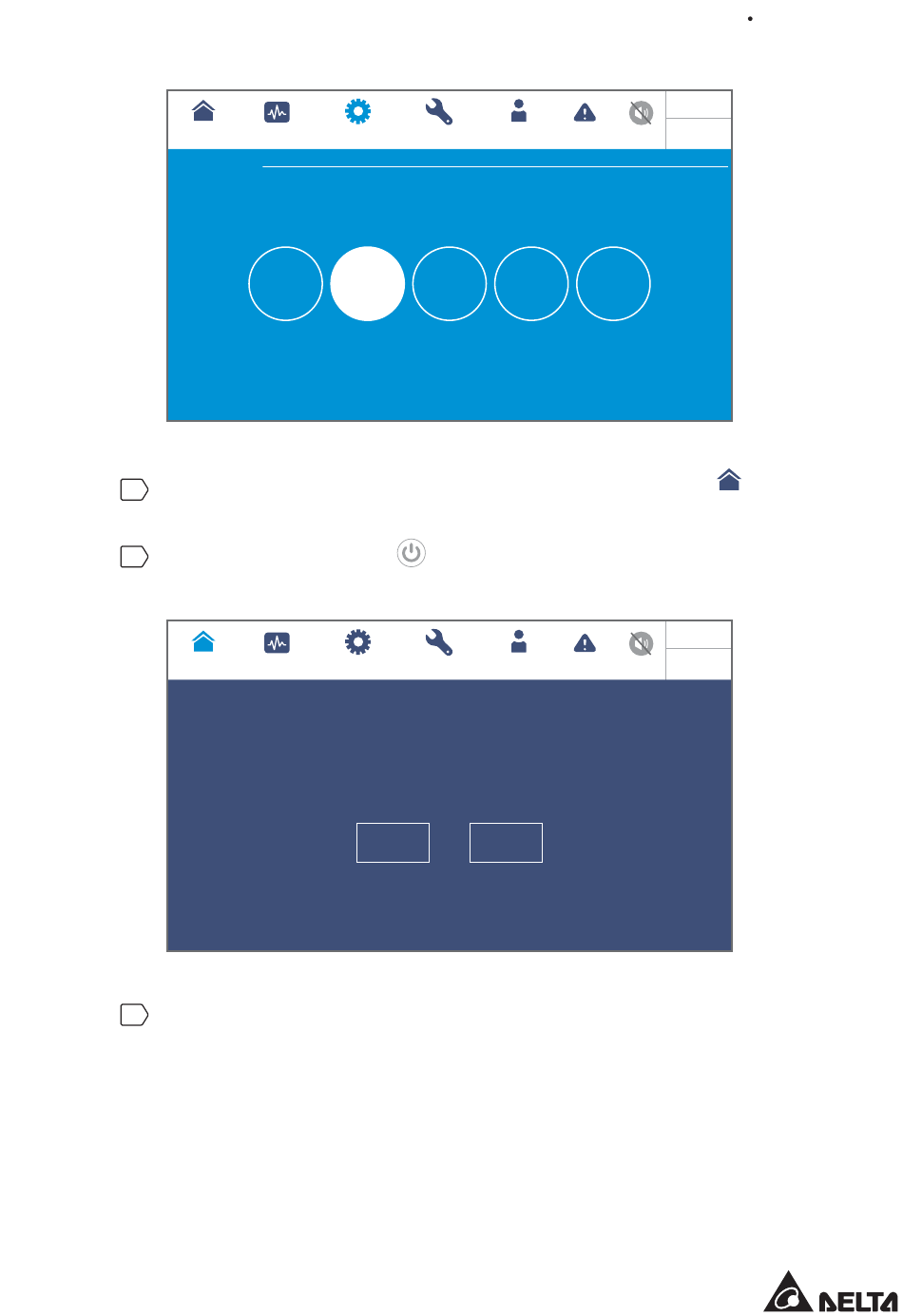

(Figure 6-36: Select Green Mode)
) once and the following screen will pop up to ask you
SETUP MAINTENANCE
POWER ON ?
Yes
(Figure 6-37: Power On Reminder Screen)
