Hardware layout and configuration
2.21

Motor control

The STM32303C-EVAL evaluation board supports 2 inductor motor controls via 34-pin
connectors CN2 and CN4, which provide all required control and feedback signals to and
from the motor power-driving board. Available signals on these connectors include
emergency stop, motor speed, 3-phase motor current, bus voltage, Heatsink temperature
coming from the motor driving board and 6 channels of PWM control signal going to the
motor driving circuit.
Some PCB reworks are needed for motor control applications to disconnect peripherals
which share I/Os with motor control connectors and connect these I/Os to motor control
connectors.
To configure the board for motor control application, please follow the procedure below:
1. Remove even number resistors from R1 to R58 (R2, R4, R6....R56, R58 except R12,
R22). The resistor positions on the PCB board are shown in
Figure 5.
22/58

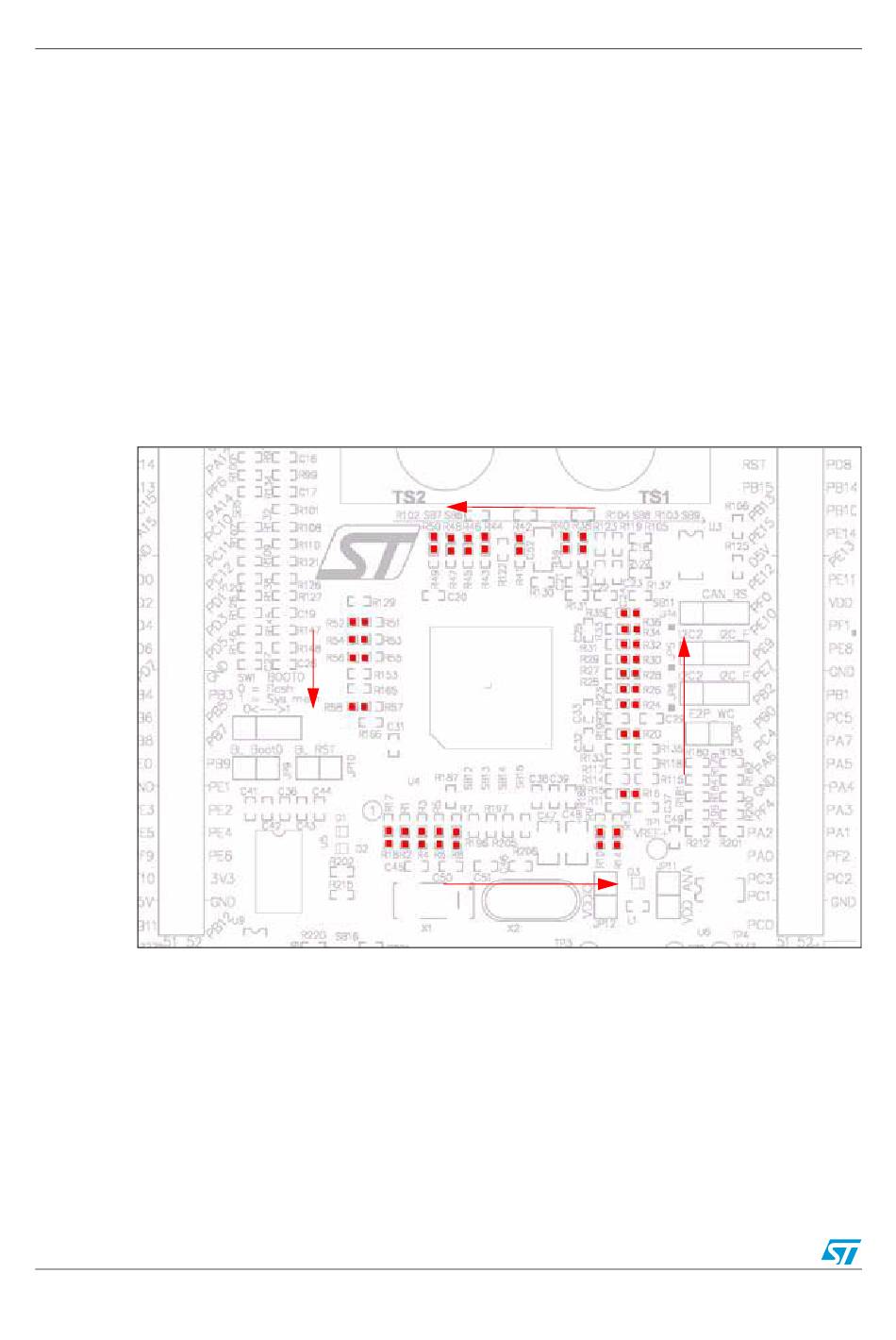

Resistor positions on the PCB board: even number removing
R50
R52
R58
R18
Doc ID 023581 Rev 2
R2
Figure 5:
R38
R36
R16
R14
UM1567
