Hardware layout and configuration

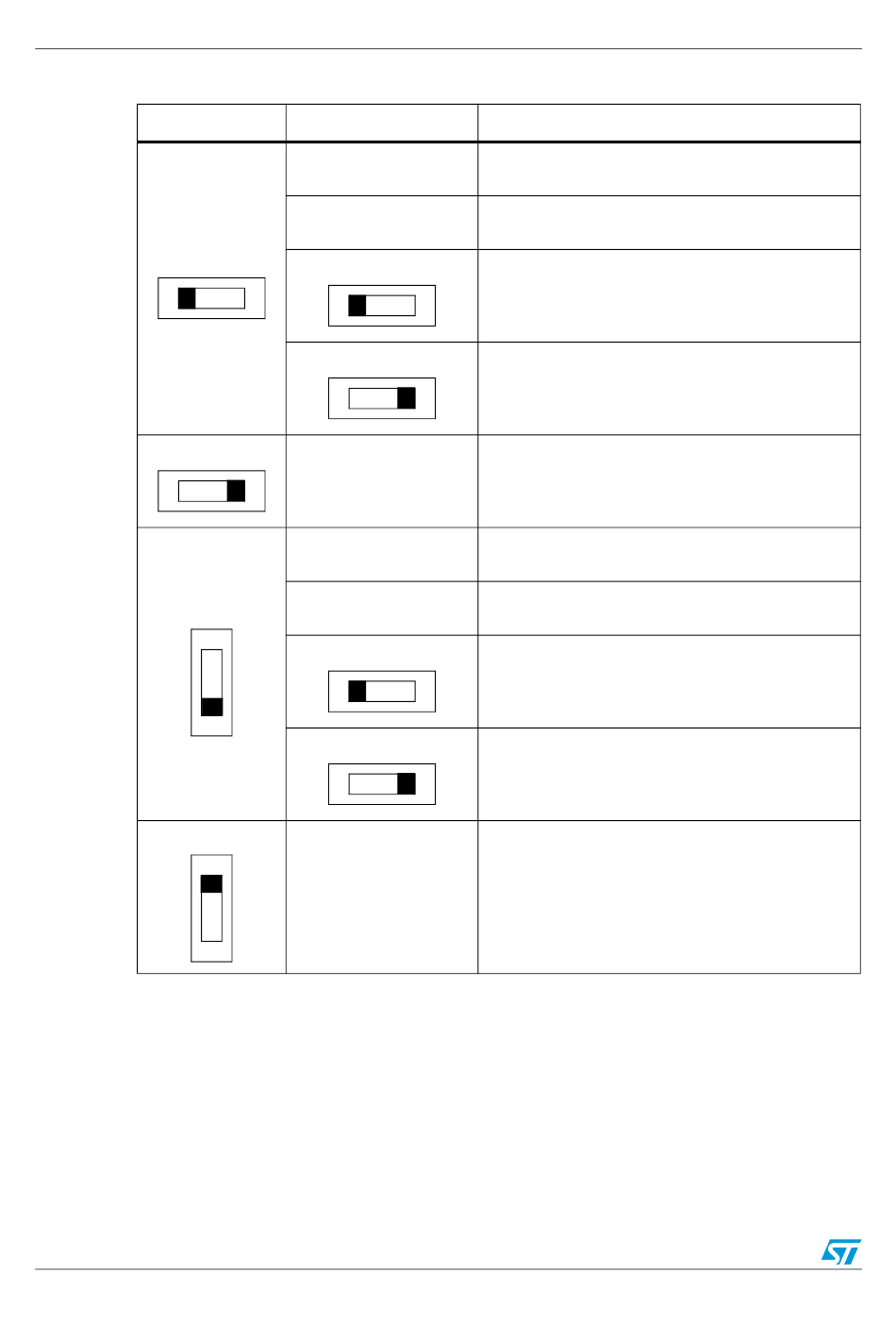

Table 20.
OAM position
OAM1
OAM1
OAM2
OAM2
24/58
Motor control related switches and solder bridges in OAM position
Other conditions
R113, R116 mounted
SB2 open
R113, R116 unmounted
SB2 closed
3SA position
3SA position
-
R132, R134 mounted
SB5 open
R132, R134 unmounted
SB5 closed
3SA position
3SA position
-
Doc ID 023581 Rev 2
Description
MC1_CurrentA+ connect to OPAMP1_IN+(PA1)
MC1_CurrentB+ connect to OPAMP2_IN1+(PA7)
MC1_CurrentB+ connect to OPAMP1_IN+(PA1)
MC1_CurrentC+ connect to OPAMP2_IN2+(PD14)
MC1_CurrentC+ connect to OPAMP4_IN1+(PB11)
MC1_CurrentA+ connect to ADC12(PC2)
MC1_CurrentB+ connect to ADC12(PC3)
MC1_CurrentC+ connect to ADC12(PC0)
MC2_CurrentA+ connect to OPAMP3_IN+(PB0)
MC2_CurrentB+ connect to OPAMP4_IN2 +(PB13)
MC2_CurrentB+ connect to OPAMP3_IN+(PB0)
MC2_CurrentC+ connect to OPAMP4_IN1+(PB11)
MC2_CurrentC+ connect to OPAMP2_IN2+(PD14)
MC2_CurrentA+ connect to ADC34(PD11)
MC2_CurrentB+ connect to ADC34(PD12)
MC2_CurrentC+ connect to ADC34(PD10)
UM1567
