Table 9.
Jumper
2.6

Audio

The STM32303C-EVAL evaluation board supports stereo audio play and microphone
recording by an external headset connected on audio jack CN11. An audio DAC CS42L52 is
connected to the I2S port of the STM32F303VCT6 microcontroller. The microphone on
headset or microphone which is reserved on board (U26, default unmounted) are connected
to ADC of CS42L52. The CS42L52 can be configured via I2C2 and be driven by either
I2S_MCK at PA9 or the external I2S clock mode supported by an external PLL (U12).
Note: Please keep VDD to 3.3 V (Power mode 1 in
The I2C communication depends on JP5 and JP6 jumper setting.
Table 10.
Jumper
JP5
JP6
JP18
The I2C address of CS42L52 is 0b1001010, and that of External PLL CS2200 is
0b1001110.
Boot0-related jumper
Bootloader_BOOT0 is managed by pin 6 of connector CN8 (RS232 DSR
signal) when JP9 is closed. This configuration is only used for the boot
JP9
loader application.
Default Setting: Not fitted

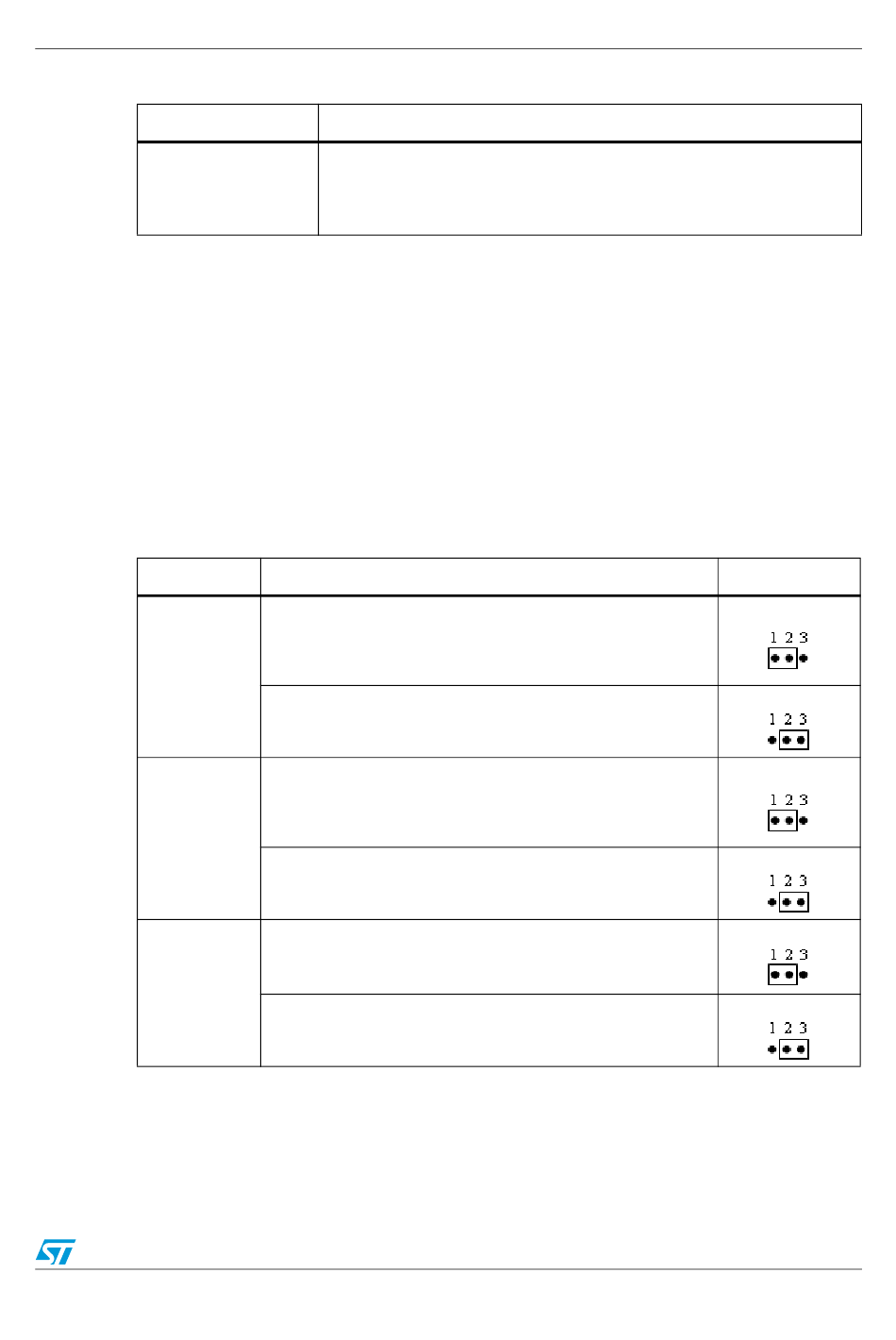

Audio-related jumpers
PA10 is used as I2C standard mode and it is connected to
I2C2_SDA signal on Audio DAC, Audio external PLL,
temperature sensor and RF EEPROM connector when JP5 is
set as shown to the right (default setting):
PA10 is used as I2C fast mode and it is connected to
I2C2_SDA_F signal on EEPROM when JP5 is set as shown to
the right:
PF6 is used as I2C standard mode and it is connected to
I2C2_SCL signal on Audio DAC, Audio external PLL,
temperature sensor and RF EEPROM connector when JP6 is
set as shown to the right (default setting):
PF6 is used as I2C fast mode and it is connected to
I2C2_SCL_F signal on EEPROM when JP6 is set as shown to
the right:
PA9 is connected to I2S_MCK signal on CS42L52 when JP18
is set as shown to the right (default setting)
PA9 is connected to IR_IN signal on TSOP34836 when JP18
is set as shown to the right:
Doc ID 023581 Rev 2
Hardware layout and configuration
Description
Section 2.2) when using external PLL CS2200.
Description Setting
