Mechanical dimensions
Appendix B

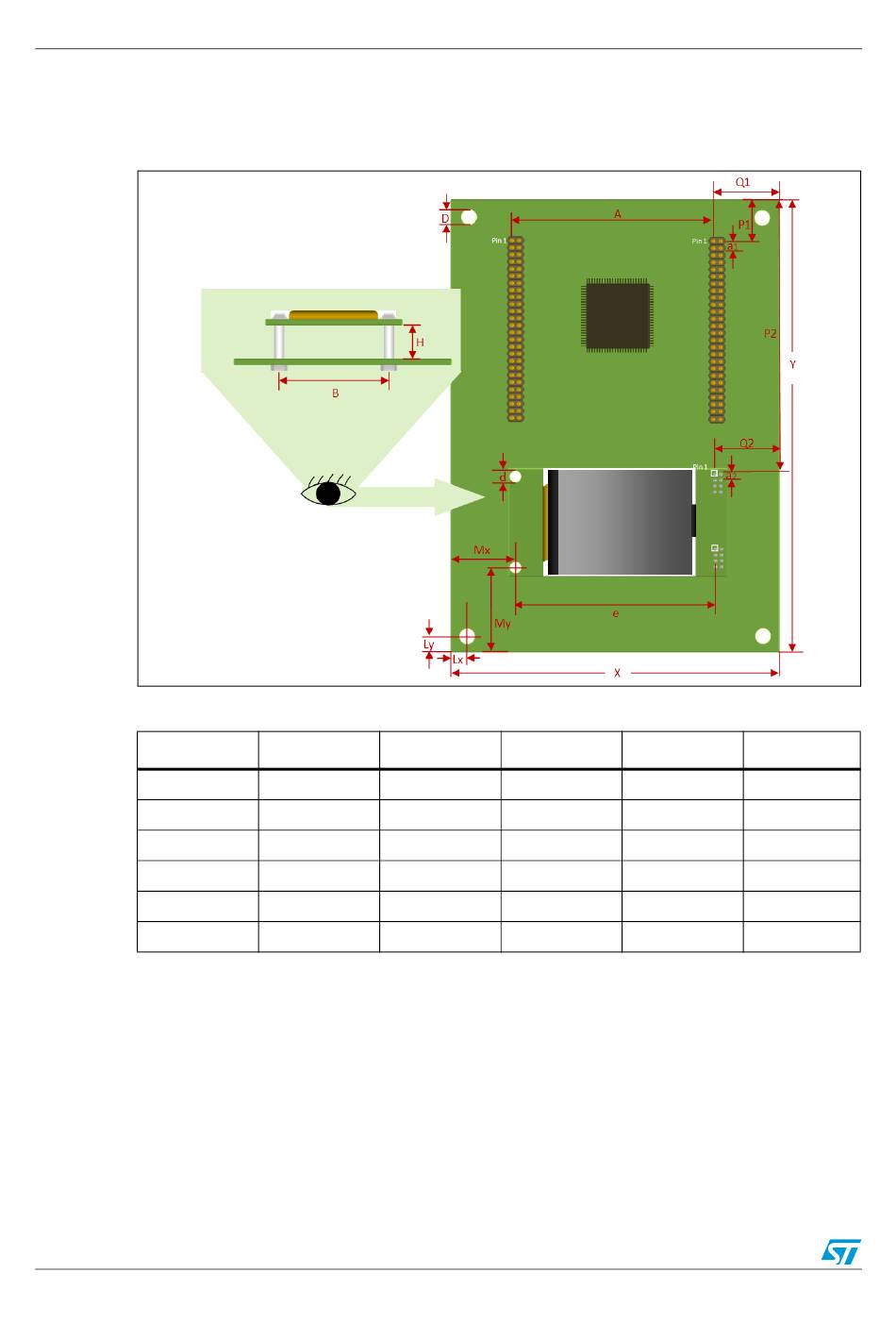

Figure 32. Mechanical dimensions

Table 35.
Symbol
A
a1
a2
B
D
d
56/58
Mechanical dimensions
Mechanical dimensions
Size (mm)
68.58
2.54
2.54
36
3.5
3.2
Doc ID 023581 Rev 2
Symbol Size (mm)
e 77.44
H 11
Lx 7.62
Ly 5.715
Mx 21.62
My 23.81
UM1567
Symbol Size (mm)
P1 25.4
P2 111.76
Q1 25.4
Q2 19.05
X 118.11
Y 172.72
