2. Mount odd number resistors from R1 to R58 (R1, R3....R55, R57 except R11 which is
mounted by default) with a 0-ohm resistor. The resistor positions on the PCB board are
shown in
Figure 6.
Table 19.
Jumper
Figure 6:

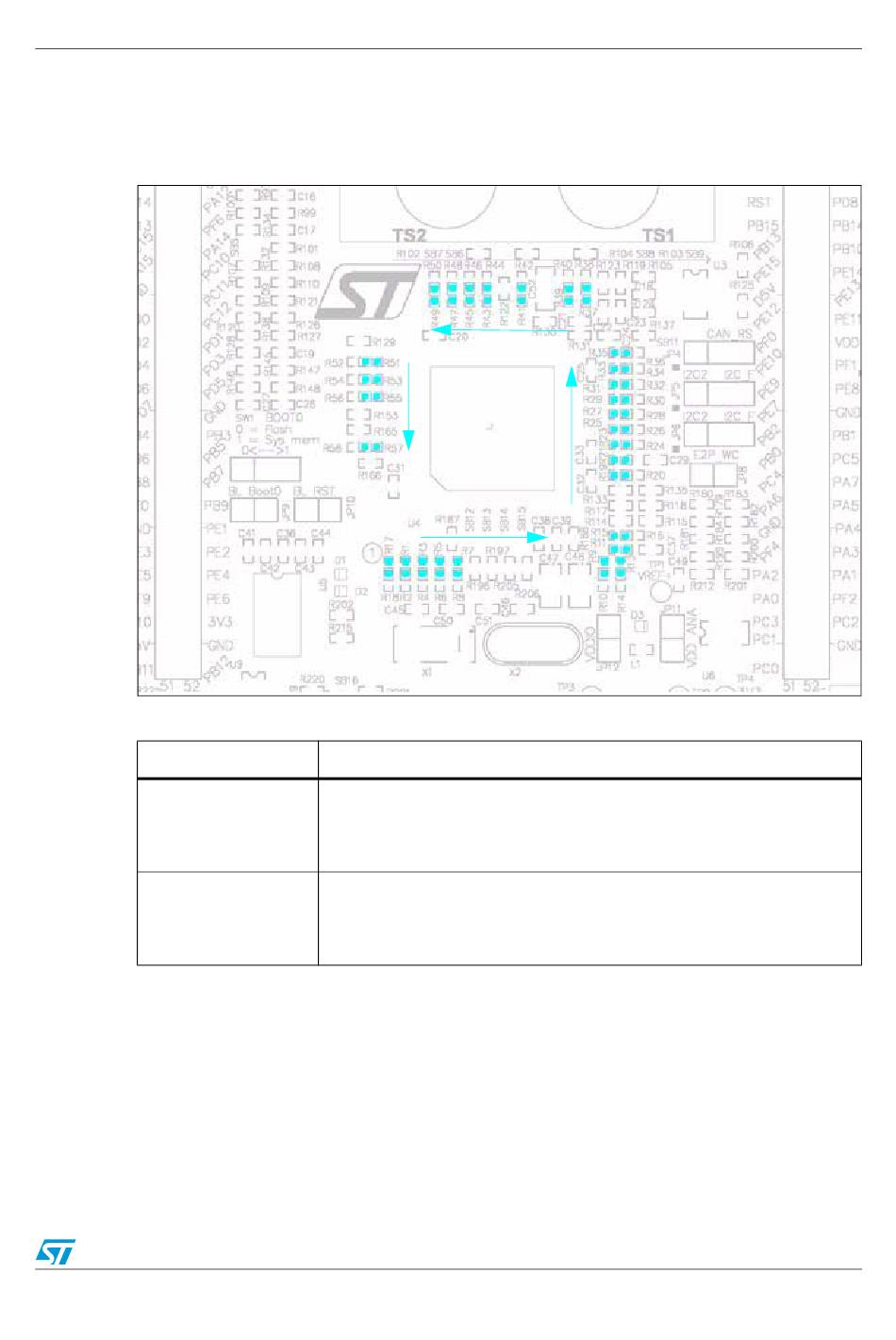

Resistor positions on the PCB board: odd number mounting
R17
Motor control related jumpers
JP2 should be kept open when the encoder signal is from pin31 of the
motor control connector CN2; it should be kept closed when the analog
JP2
signal is from pin31 of CN2 for a special motor.
Default setting: Not fitted
JP7 should be kept open when the encoder signal is from pin31 of the
motor control connector CN4; it should be kept closed when the analog
JP7
signal is from pin31 of CN4 for a special motor.
Default setting: Not fitted
