Single Hopper Configuration Label - Entrust Datacard CR825 User Manual

Option
Hopper Cassette Type
Printer Type
Locks

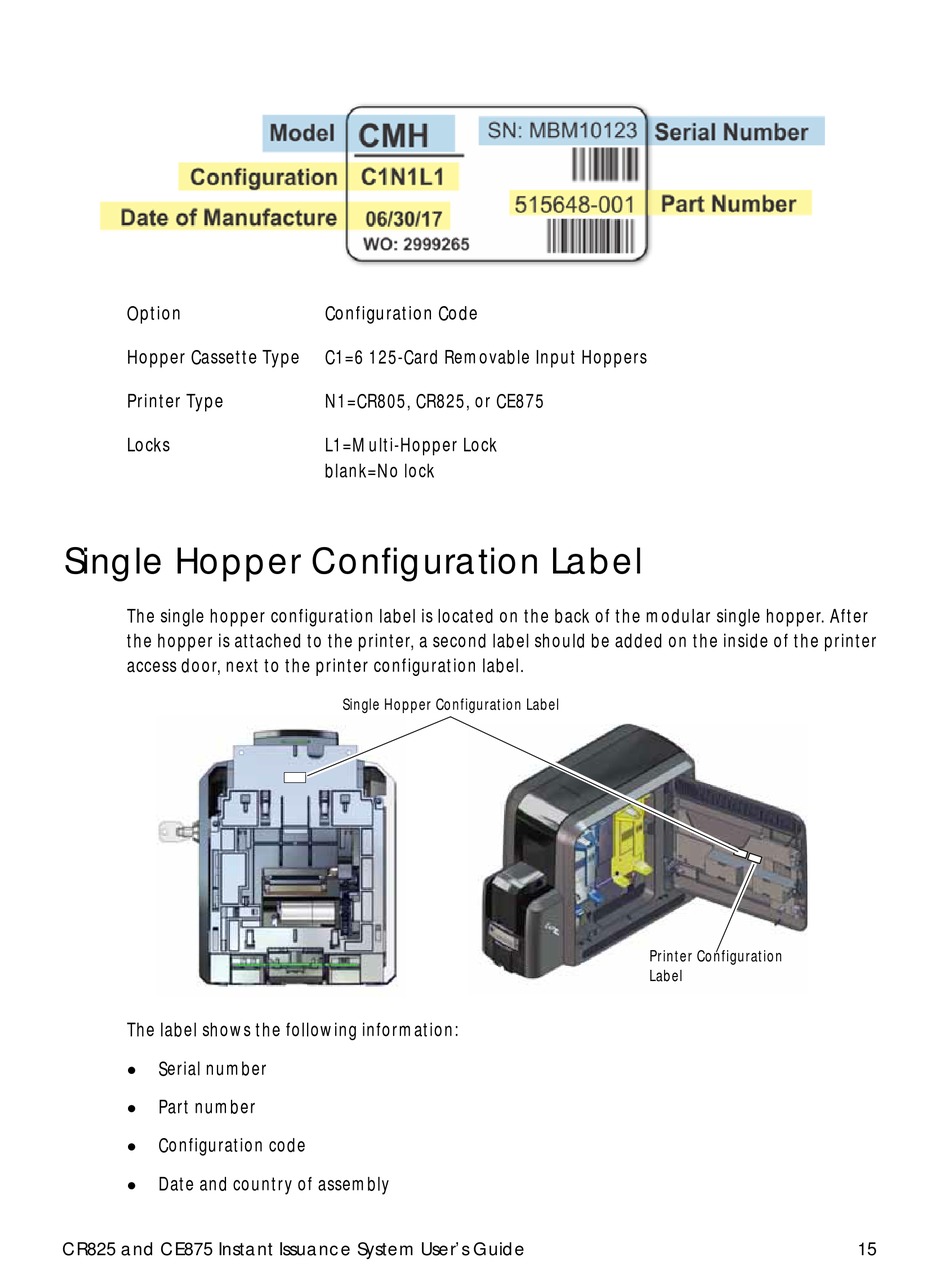

Single Hopper Configuration Label

The single hopper configuration label is located on the back of the modular single hopper. After
the hopper is attached to the printer, a second label should be added on the inside of the printer
access door, next to the printer configuration label.
The label shows the following information:
Serial number

Part number

Configuration code

Date and country of assembly

CR825 and CE875 Instant Issuance System User's Guide
Configuration Code
C1=6 125-Card Removable Input Hoppers
N1=CR805, CR825, or CE875
L1=Multi-Hopper Lock
blank=No lock
Single Hopper Configuration Label
Printer Configuration
Label
15
