Rear Access Door Release (K3)
Manual Advance Knob (K1)
Manual Advance Knob (K2)

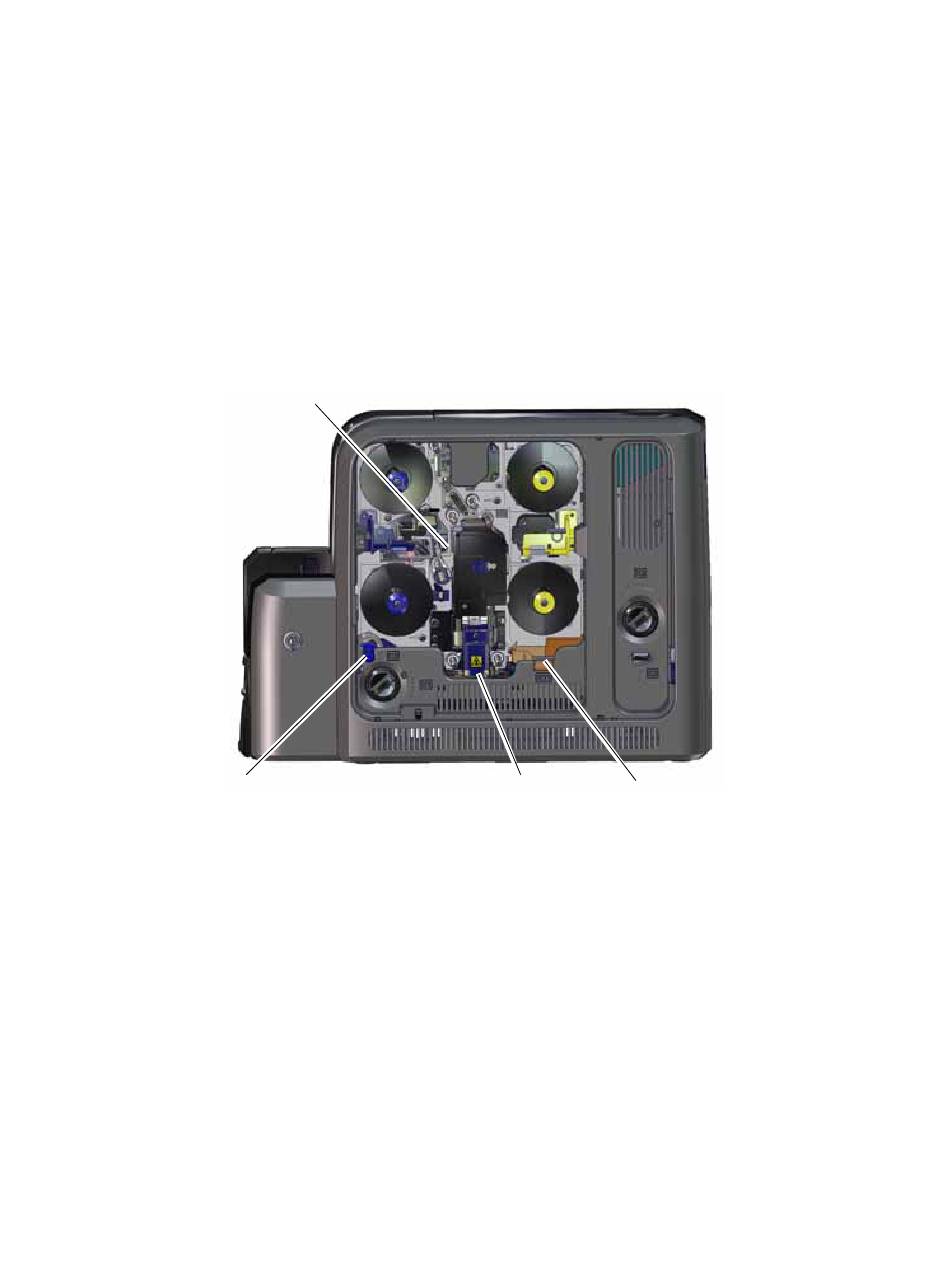

The following illustration shows the inside of the printer when the ink ribbon and retransfer
cartridges are removed.
Cleaning
Spindle (C3)
Printhead
Cleaning Spindle (C3)
CR825 and CE875 Instant Issuance System User's Guide
The rear access door release (K3) opens the rear access
door in the back of the printer to clear a card jam in the
vertical transport.
The manual advance knobs allow you to move a card inside
the printer (K1) or in the vertical transport area (K2) to
clear a card jam. The K2 knob is present only if a magnetic
stripe unit or smart card reader is installed in the printer.
Printhead
The printhead prints the card data on the retransfer film
using the ink ribbon.
The cleaning spindle (C3) holds the replaceable cleaning
sleeve, which removes dust and other particles from cards
to maintain print quality.
Retransfer
Reject Tray (RT1)
Station
