Load the Topping Foil Cartridge

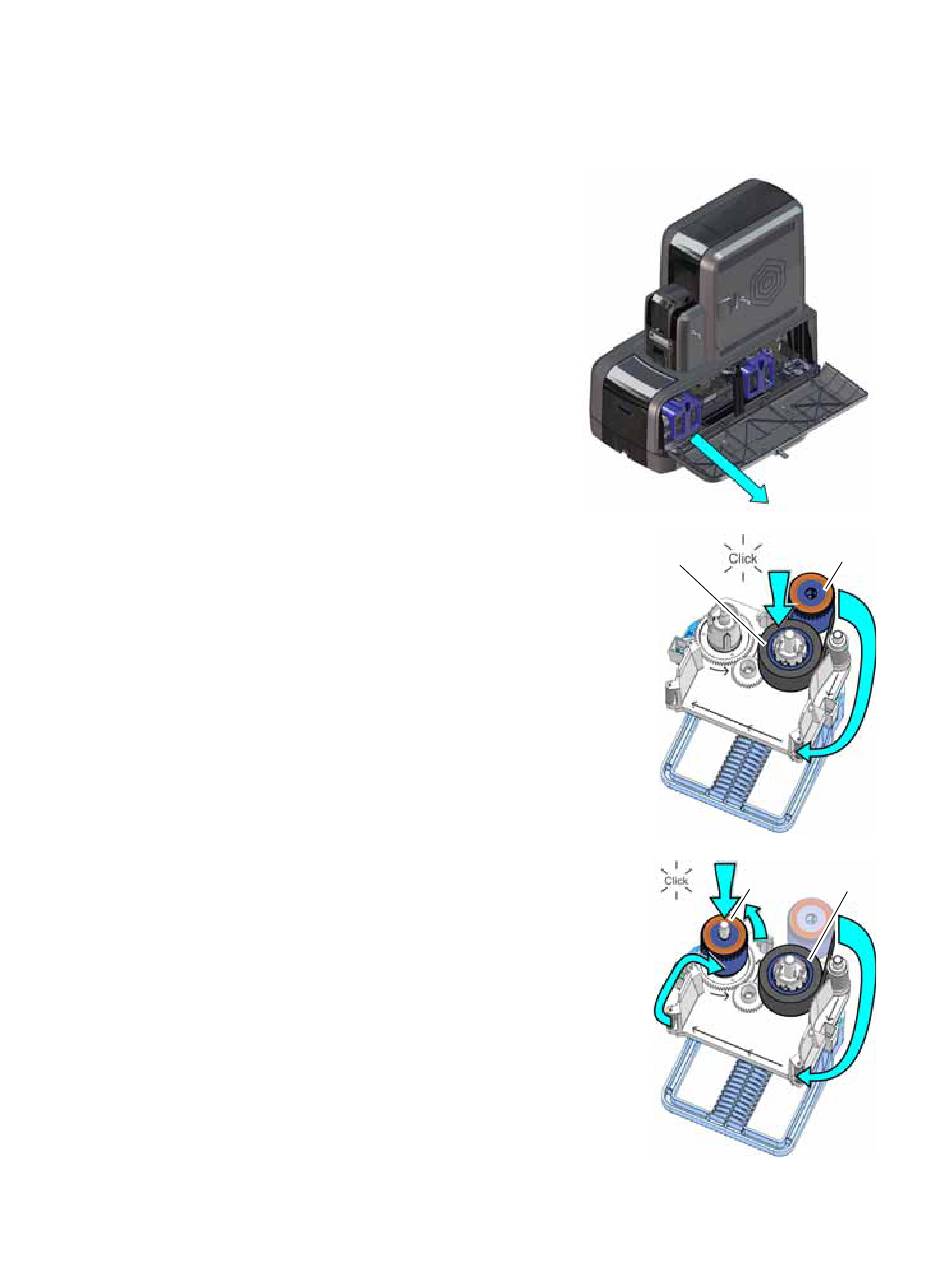

1.
Prepare the topping foil cartridge and topping roll.
a.
Unlock and open the embosser supplies
access door and remove the topping foil
cartridge from the embosser. The topping foil
cartridge is on the left as you face the
embosser opening.
b.
Place the topping foil cartridge on a flat
surface with the spindles facing up.
c.
Remove the used topping foil spools from the
cartridge and discard them according to your
site's security procedures.
d.
Remove the new topping foil from its
package.
2.
Secure the supply spool into the spindle.
a.
Match the keyed pattern of the blue supply spool hub
with the right-side spindle.
b.
Push the supply spool into the spindle until it clicks
securely into place.
3.
Roll out and route the foil around the rollers on the
topping foil cartridge.
4.
Secure the silver take-up spool into the spindle.
a.
Match the keyed pattern of the take-up spool hub with
the left-side spindle.
b.
Push the take-up spool into the spindle until it clicks
securely into place.
5.
Turn the take-up spool one full turn counterclockwise to take
up foil slack.
A-8
Supply
Spool
Take-up
Spool
CE875 Instant Issuance System
Take-up
Spool
Supply
Spool
