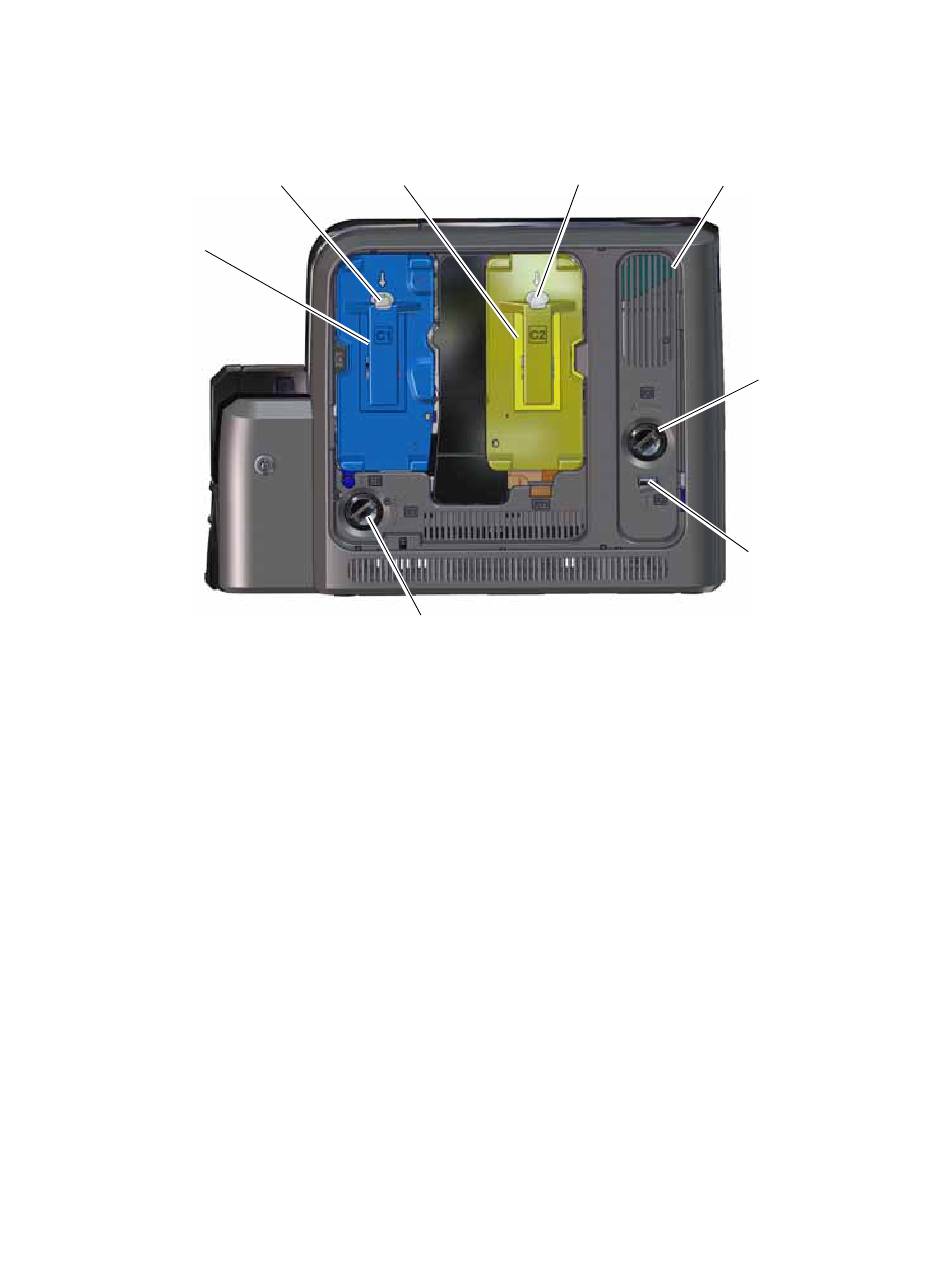

Inside the Printer

Ink Ribbon Cartridge
Release Button
Ink Ribbon
Cartridge (C1)
Ink Ribbon Cartridge (C1)
(blue)
Retransfer Film Cartridge (C2)
(yellow)
Cartridge Release Buttons
Vertical Transport
10
Retransfer Film Retransfer Film Cartridge
Cartridge (C2) Release Button
Manual Advance
Knob (K1)
The ink ribbon cartridge (C1) holds the ink print ribbon.
The retransfer film cartridge (C2) holds the retransfer film.
The ink ribbon and retransfer film cartridge release buttons
allow you to remove the cartridges from the printer for
loading or error recovery. Press the release button and pull
out the cartridge from the printer.
The vertical transport area houses the magnetic stripe unit
and the smart card reader.
Vertical Transport
Area
Manual Advance
Knob (K2)
Rear Access Door
Release (K3)
