Cabling

Cabling overview

This section provides guidelines that help you make informed decisions about cabling the server and
hardware options to optimize performance.
CAUTION: When routing cables, always be sure that the cables are not in a position where they
can be pinched or crimped.

Four-bay non-hot-plug drive cabling

The four-bay non-hot-plug drive cable assembly consists of the drive power and SATA cables attached to
a bracket. If either the drive power or SATA cable becomes defective, the entire cable assembly will need
to be replaced.

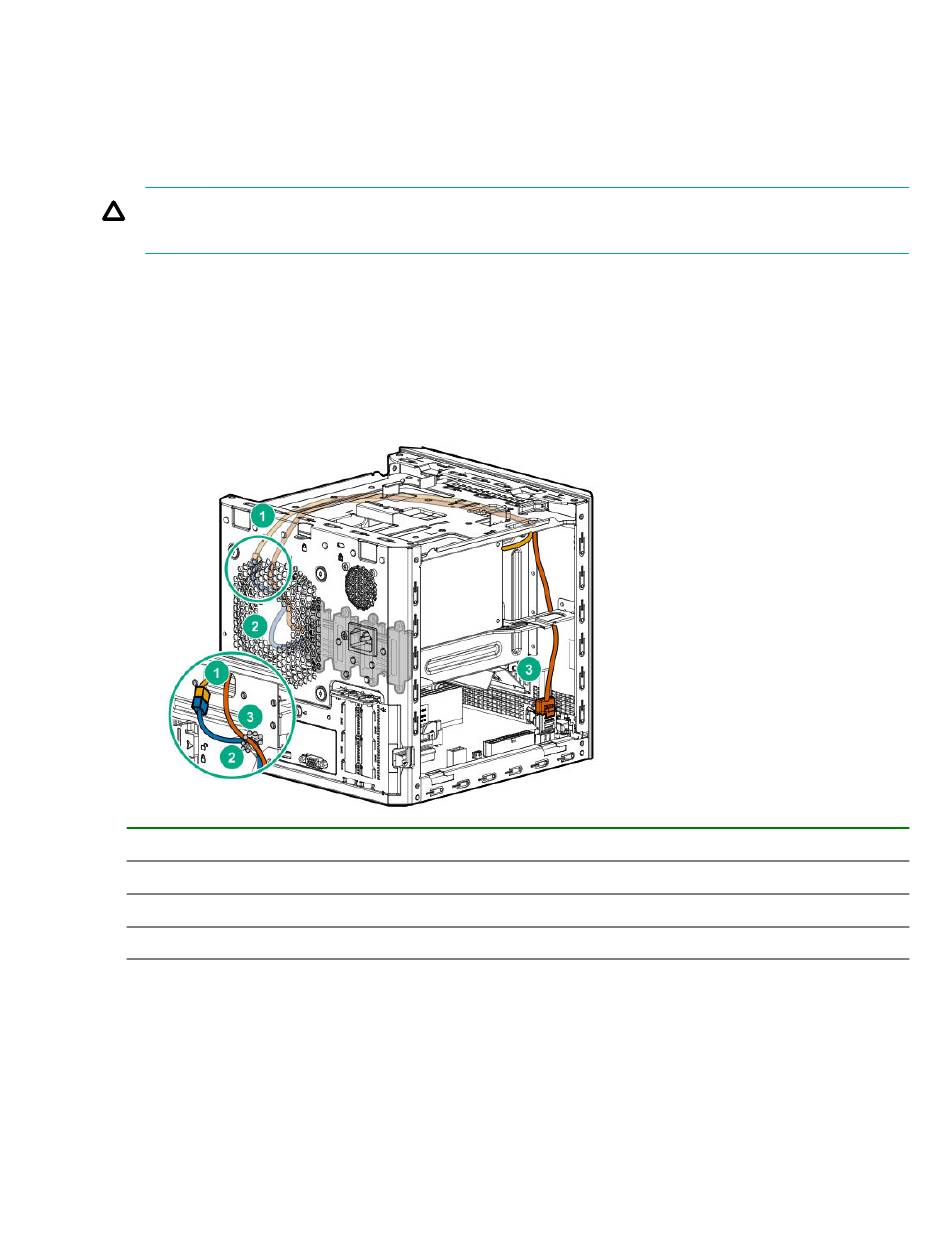

• LFF/SFF drive SATA cable connected to the system board
Item
1
2
3
• LFF/SFF drive SATA cable connected to a Smart Array storage controller board
90 Cabling
Description
P2 power supply cable
LFF/SFF drive power cable
LFF/SFF drive SATA cable
