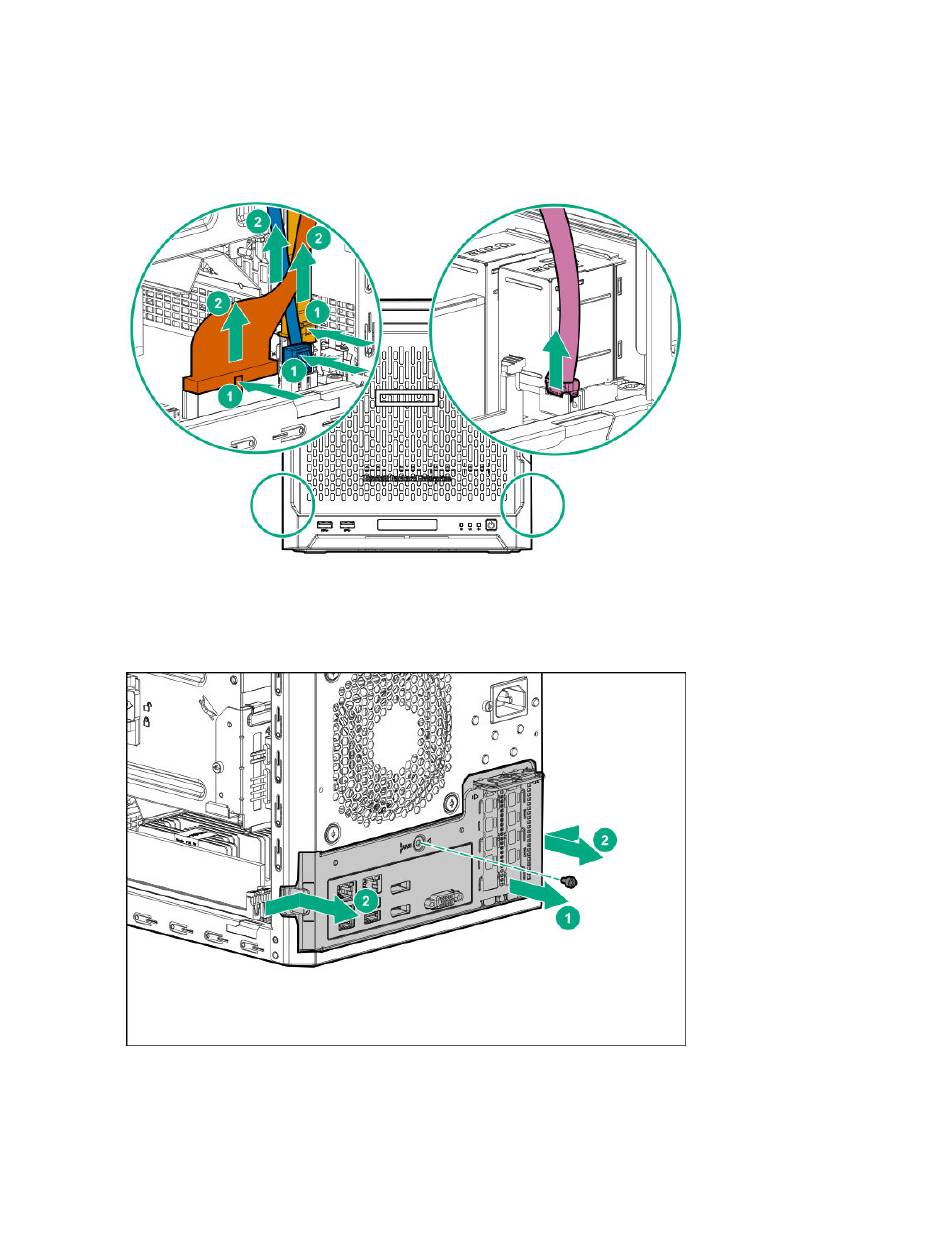

Power supply cable
Optical drive or SSD SATA cable (optional)
LFF/SFF drive SATA cable – This cable can either be connected to the system board or to an
installed HBA.
Fan cable
4. Remove the system board assembly screw.
5. Place a finger in the notch on both sides of the system board assembly, and then pull out the
assembly.
26
Removal and replacement procedures
