Connect the SSD SATA cable
Prerequisites
Before you perform this procedure, make sure that you have the SSD SATA cable spare available.
Procedure

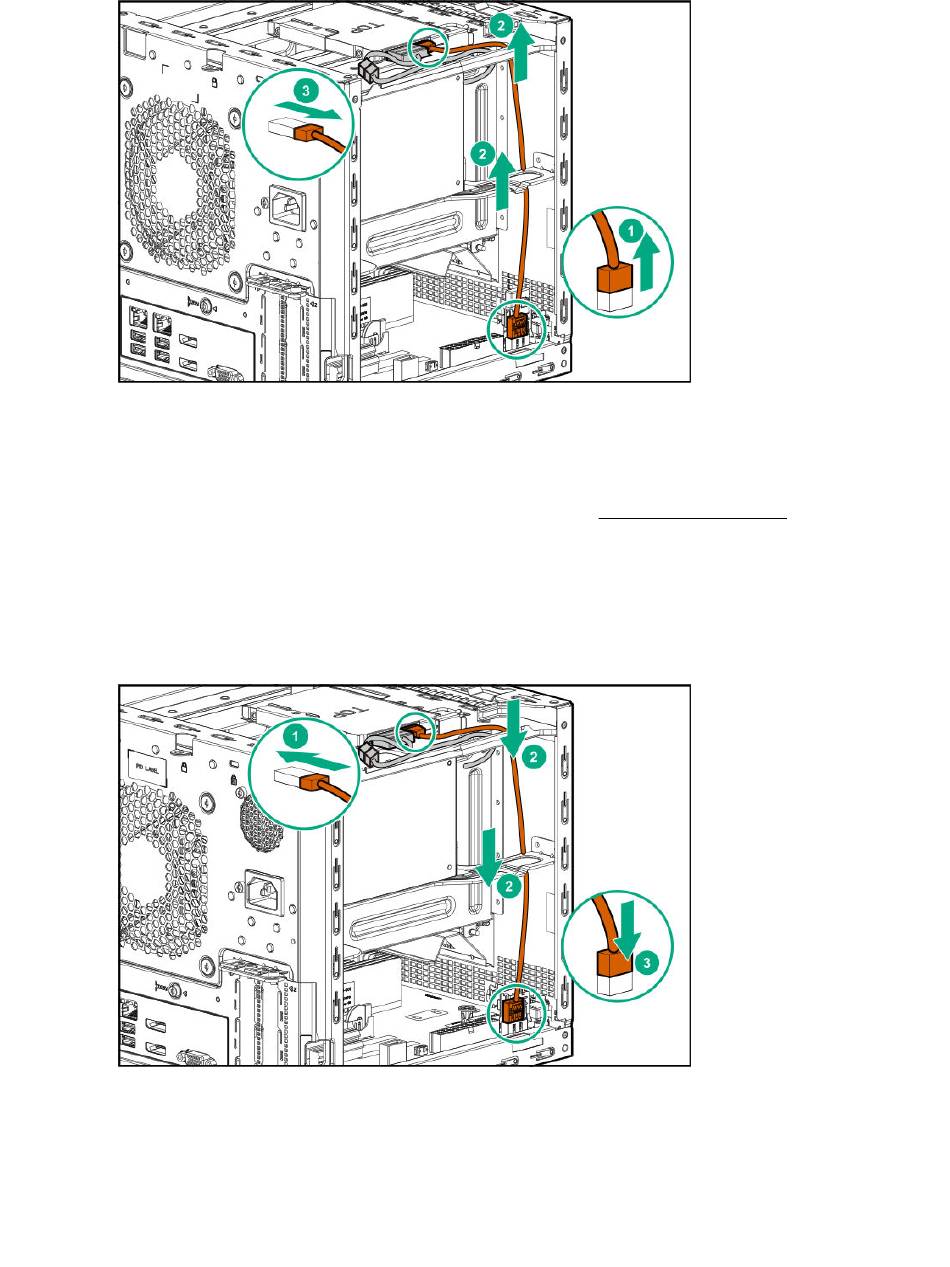

1. Connect the SATA cable to the SSD.
2. Route the cable through the left side chassis opening down to the system board.
3. Connect the SATA cable to the SATA connector.
4. Bundle the extra length of the SSD SATA cable, and then secure it in the cable tie.
46
