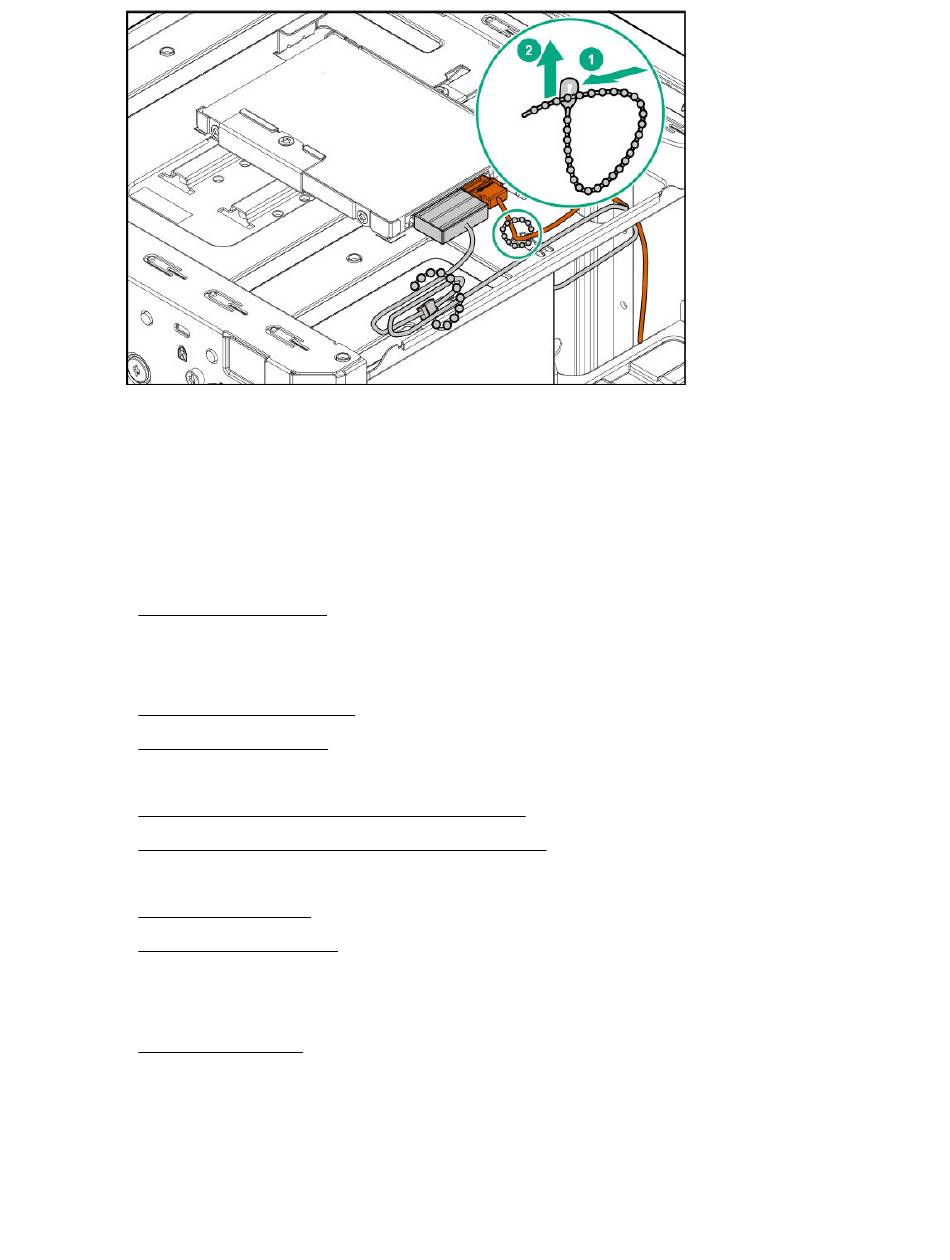

Replacing the non-hot-plug drive cable assembly

The non-hot-plug drive cable assembly consists of the drive power and SATA cables attached to a
bracket. If either the drive power or SATA cable becomes defective, the entire cable assembly will need to
be replaced.
Procedure
1. Power down the server on page 22.
2. Disconnect the power cord from the AC source, and then from the server.
3. Disconnect all peripheral cables from the server.
4. Remove the chassis cover on page 25.
5. Remove the front bezel on page 22.
6. Remove all installed drives.
7. Remove the non-hot-plug drive cable assembly on page 47.
8. Install the new non-hot-plug drive cable assembly.
9. Install all removed drives.
10. Install the front bezel on page 29.
11. Install the chassis cover on page 29.
12. Connect all peripheral cables to the server.
13. Connect the power cord to the server power jack, and then to the AC source.
14. Power up the server on page 30.

Remove the non-hot-plug drive cable assembly

Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Replacing the non-hot-plug drive cable assembly 47
