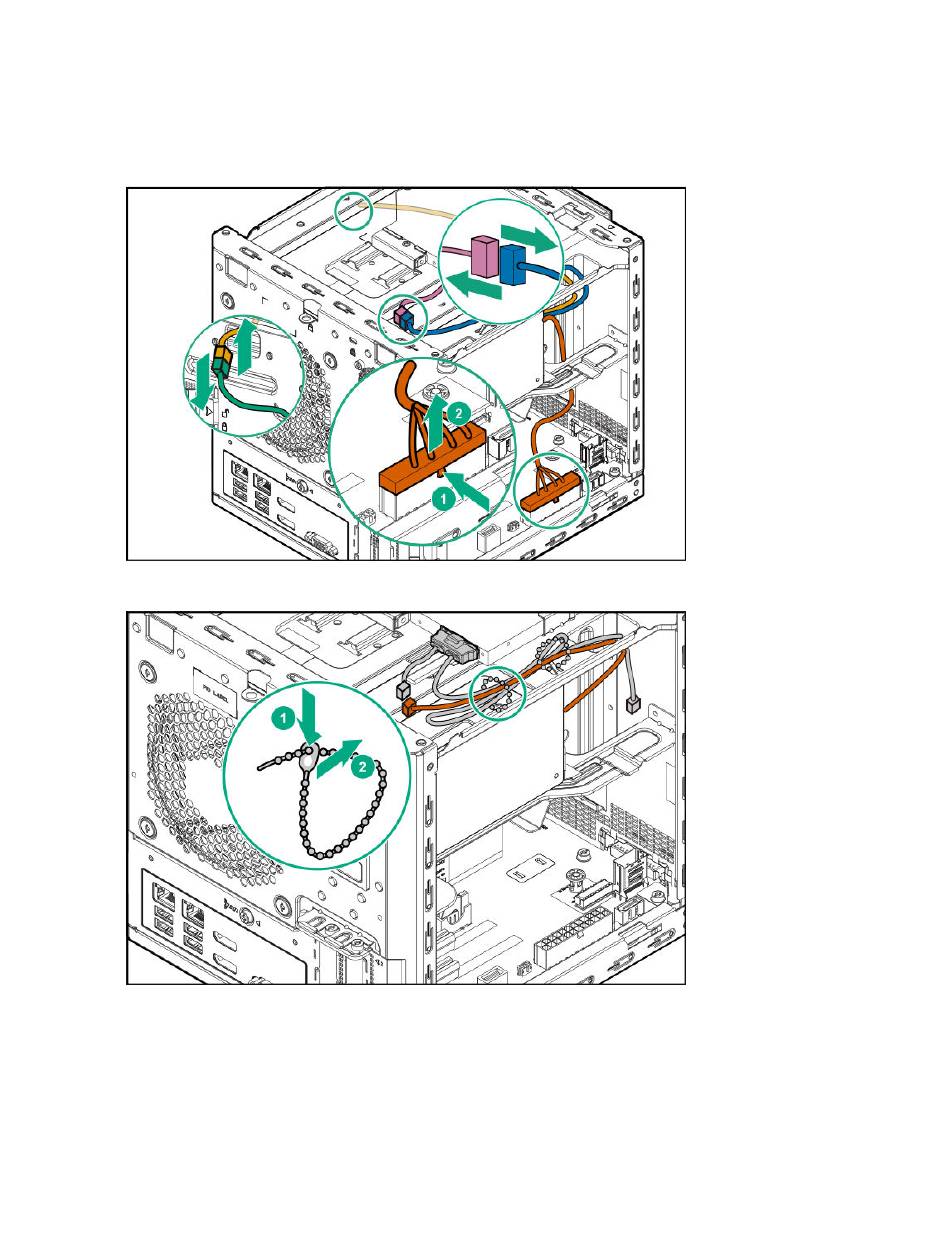

On the left side of the chassis, disconnect the 24-pin power supply cable from the system board.
•
If an ODD or SSD is installed in the media bay, disconnect the P3 power supply cable from that
drive power connector.
•
On right side of the chassis, disconnect the P2 power supply cable from the LFF/SFF drive power
connector.
2. Open the cables tie securing the P3 power supply cable, and then release the cable.
3. Pull out all the power supply cables towards the left side of the chassis.
Removal and replacement procedures
61
