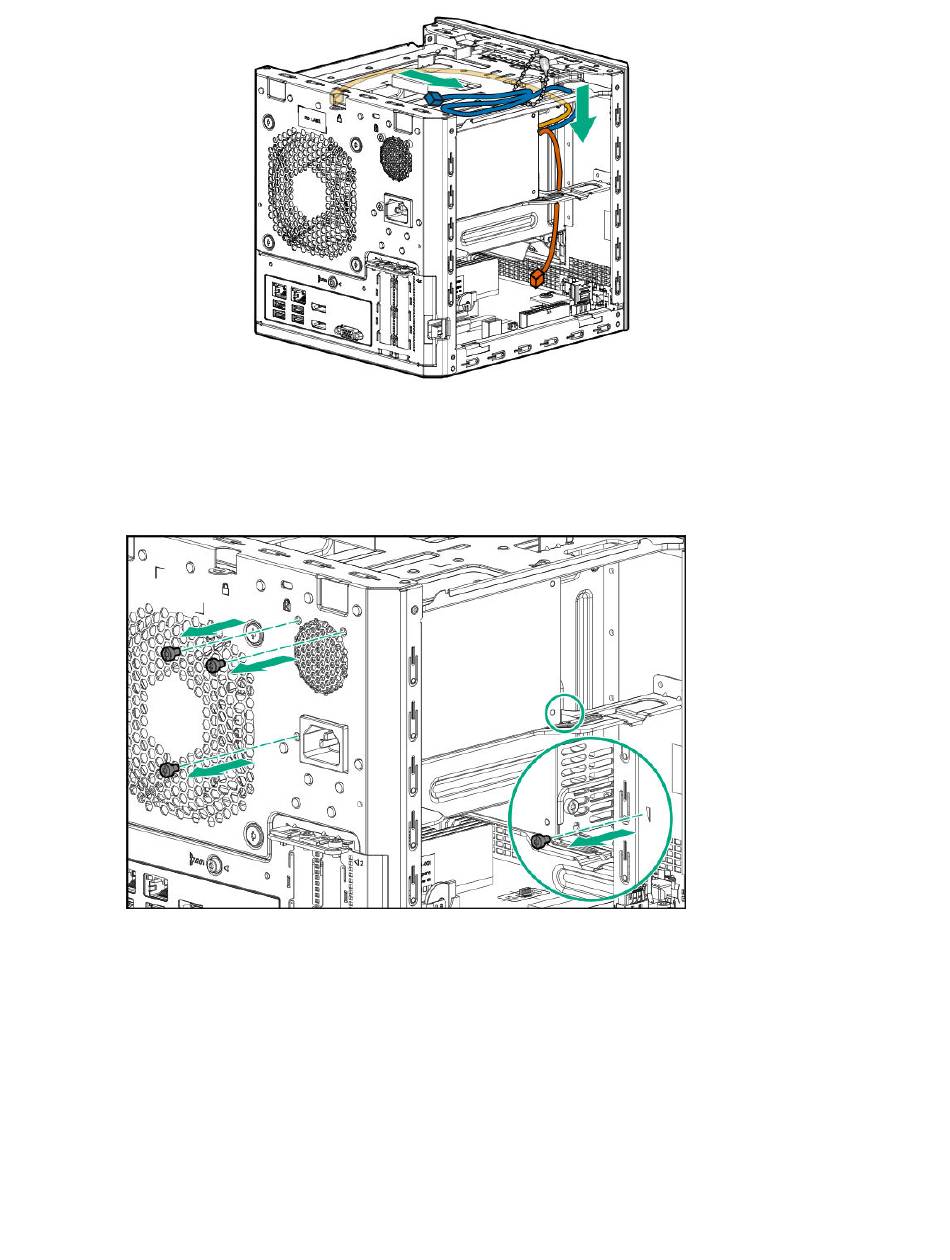

4. Remove the power supply screws:
•
Three screws on the rear panel
•
One screw on the power supply bracket
5. Remove the power supply:
a. Press a finger against the power jack to push the power supply from the rear panel wall.
b. Slide the power supply towards the front side of the server until the power supply bracket is
disengaged from the chassis.
c. Remove the power supply from the power supply bay.
62
Removal and replacement procedures
