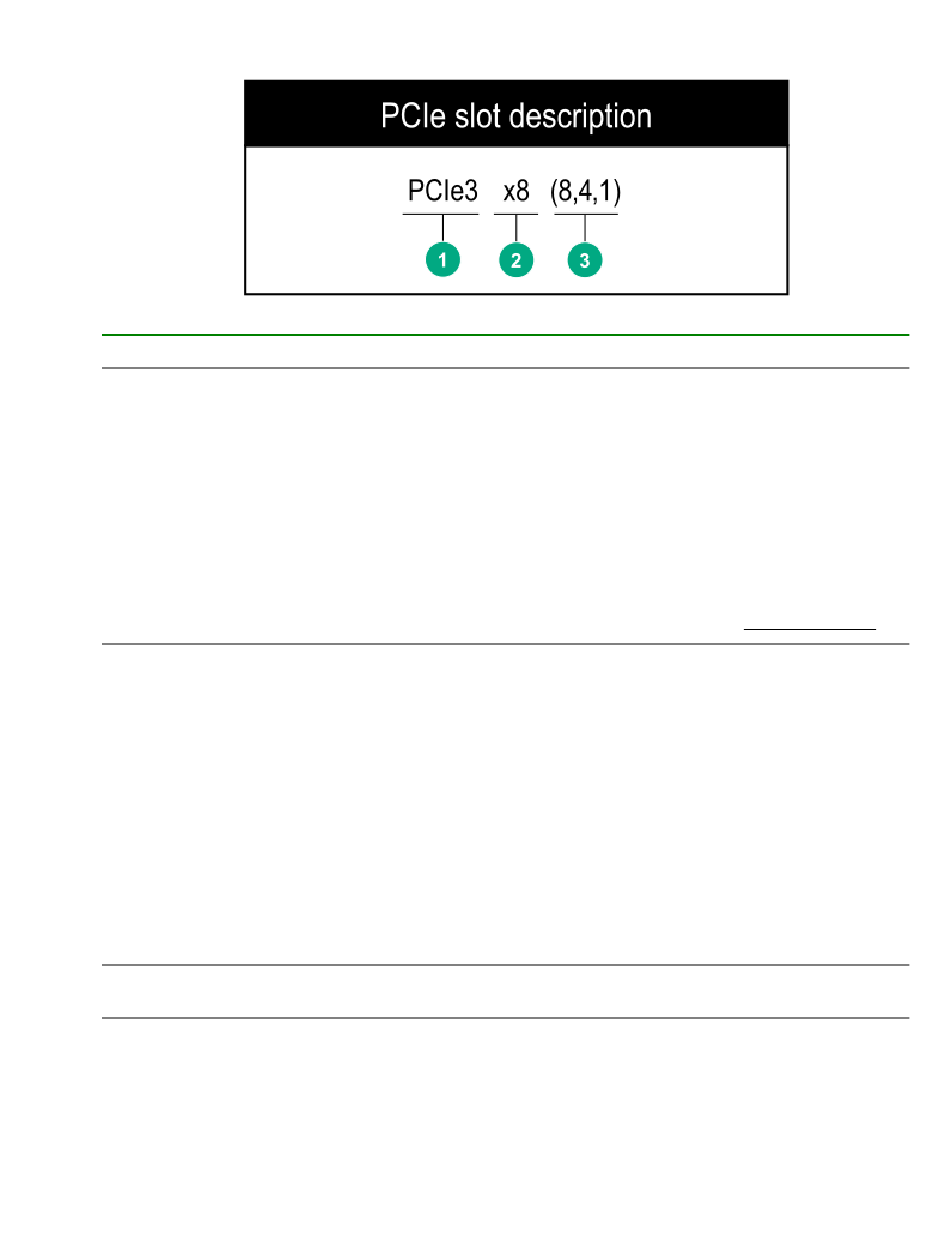

PCIe slot description

Item Description
1 PCI Express version
2 Physical connector link width
3 Negotiable link width
88 PCIe slot description
Definition
Each PCIe version corresponds to a specific data
transfer rate between the processor and peripheral
devices. Generally, a version update corresponds to an
increase in transfer rate.
• PCIe 1.x
• PCIe 2.x
• PCIe 3.x
The PCIe technology is under constant development.
For the latest information, see the PCI-SIG website.
PCIe devices communicate through a logical
connection called an interconnect or link. At the
physical level, a link is composed of one or more lanes.
The number of lanes is written with an "×" prefix with
×16 being the largest size in common use.
•
×1
•
×2
•
×4
•
×8
•
×16
These numbers correspond to the maximum link
bandwidth supported by the slot.
