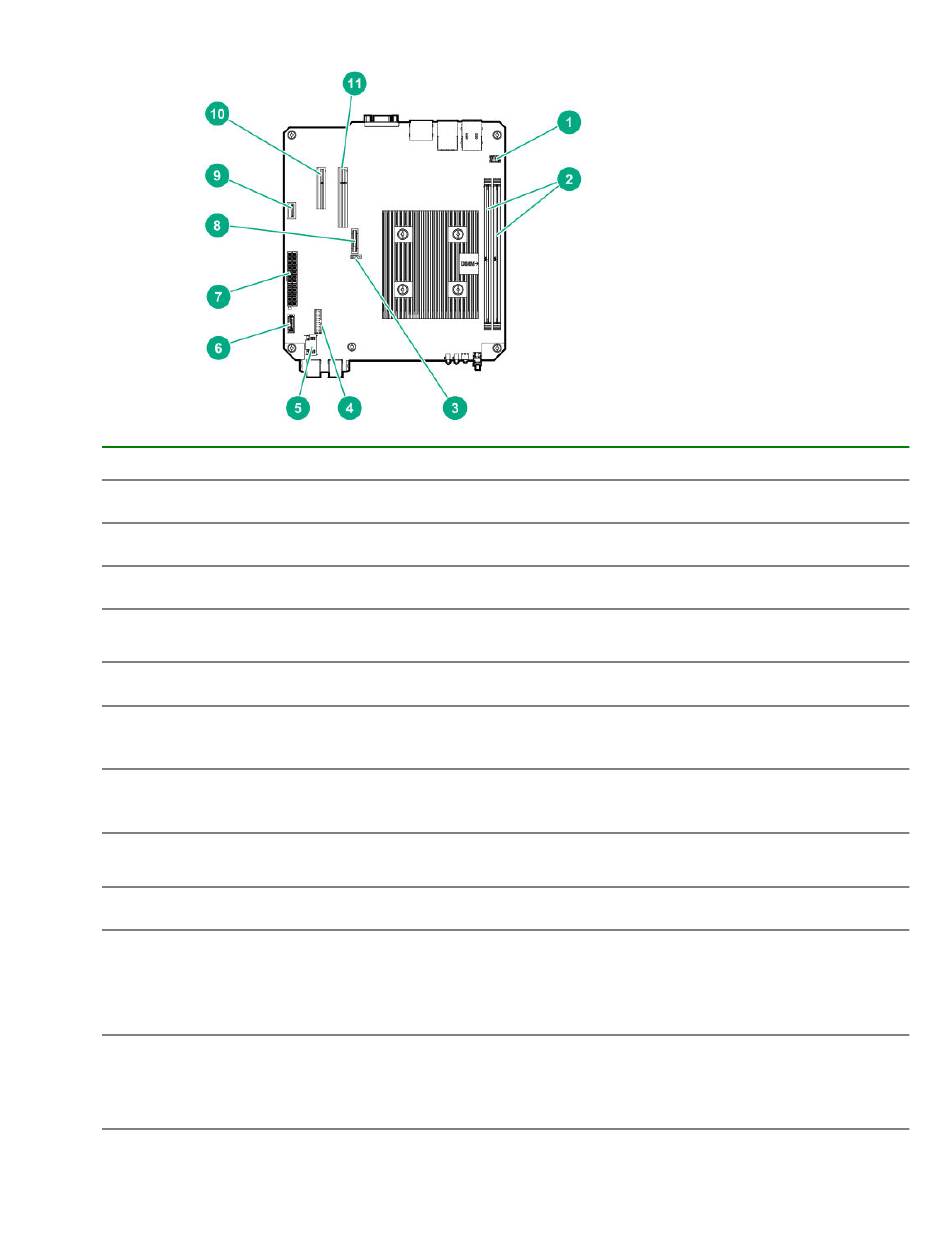

System board components

Item Component
1 Fan connector
2 DIMM slots
3 CMOS header
4 TPM connector
5 LFF/SFF drive SATA port
6 Optical drive or SSD
SATA port
7 System board power
connector
8 System battery
9 Internal USB 2.0 port
10 Expansion slot 2, PCIe3
×4 (1)
11 Expansion slot 1, PCIe3
×8 (8, 4, 1)
1
These are SATA 6Gb/s ports.
Description
Connects the fan cable.
These slots support standard UDIMMs with ECC only.
Use the jumper on this header to clear the CMOS.
This connector supports the TPM 2.0 option for data security
solution.
Connects the LFF/SFF drive SATA cable.
Connects the optical drive or SSD SATA cable.
Connects the power supply cable.
This battery provides power to the server real-time clock and BIOS
settings.
Connect internal USB devices to this port.
For additional hardware capabilities, install a compatible low-profile
PCIe expansion board here. This expansion slot supports
expansion boards with a physical connector link widths of up to
2
×16.
For additional hardware capabilities, install a compatible low-profile
PCIe expansion board here. This expansion slot supports
expansion boards with a physical connector link widths of up to
2
×16.
1
1
System board components 85
