Remove the air baffle from the expansion board

Procedure

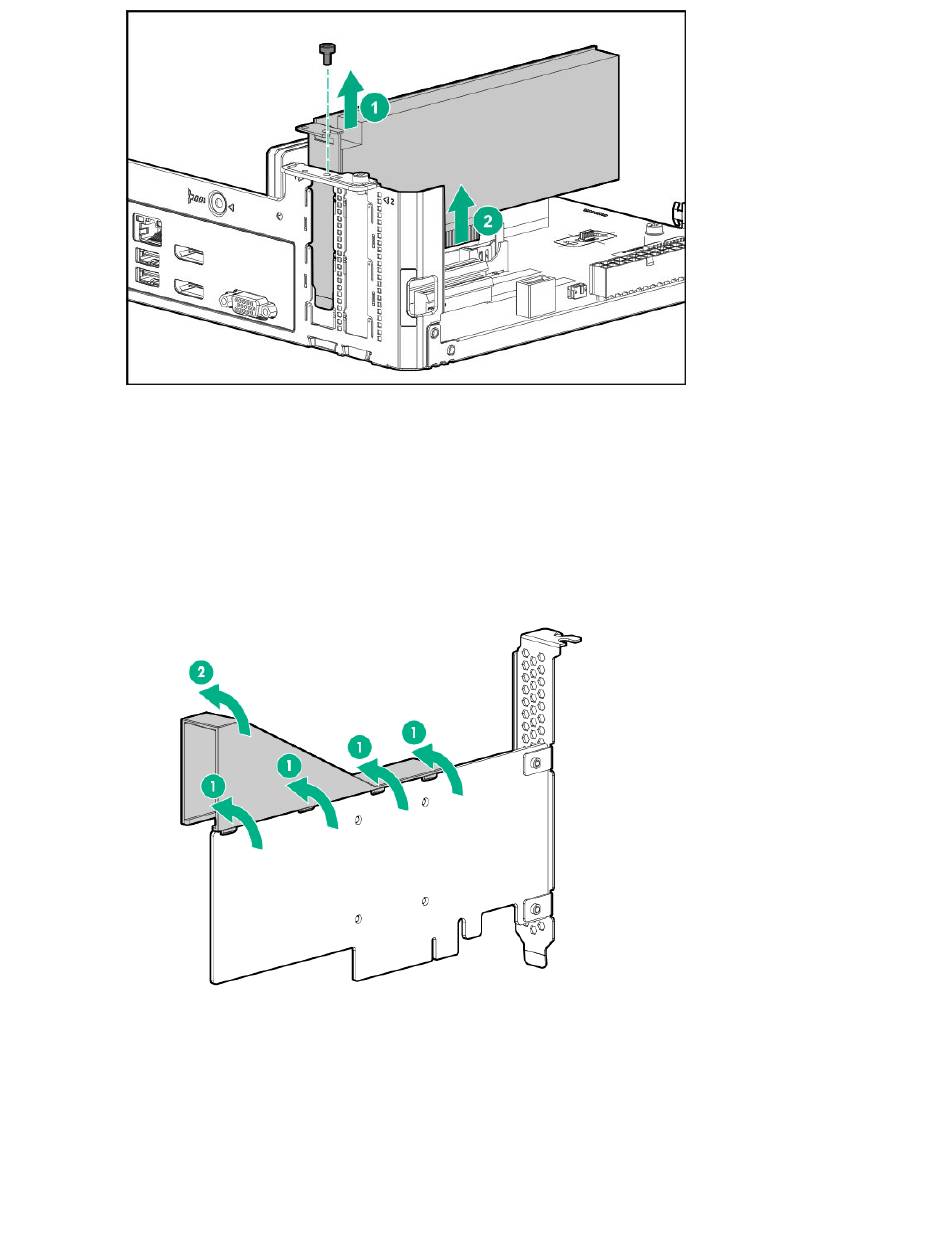

Remove the air baffle from the expansion board.
The number and location of the latches that secure the baffle to the board will vary depending on the
expansion board. The illustration below is an example image only. See the expansion board
documentation for model-specific information.

Install a low-profile bracket on the expansion board

The number and location of the bracket screws will vary depending on the expansion board. The
illustrations below are example images only. See the expansion board documentation for model-specific
information.
