Rear Panel Components - HPE ProLiant MicroServer Gen10 Maintenance And Service Manual

2
If the server does not power on, verify the following items:
• The site power is available.
• The power cord is properly connected to the server power jack and to a working power source.
• The internal power supply cable is properly connected to the system board.

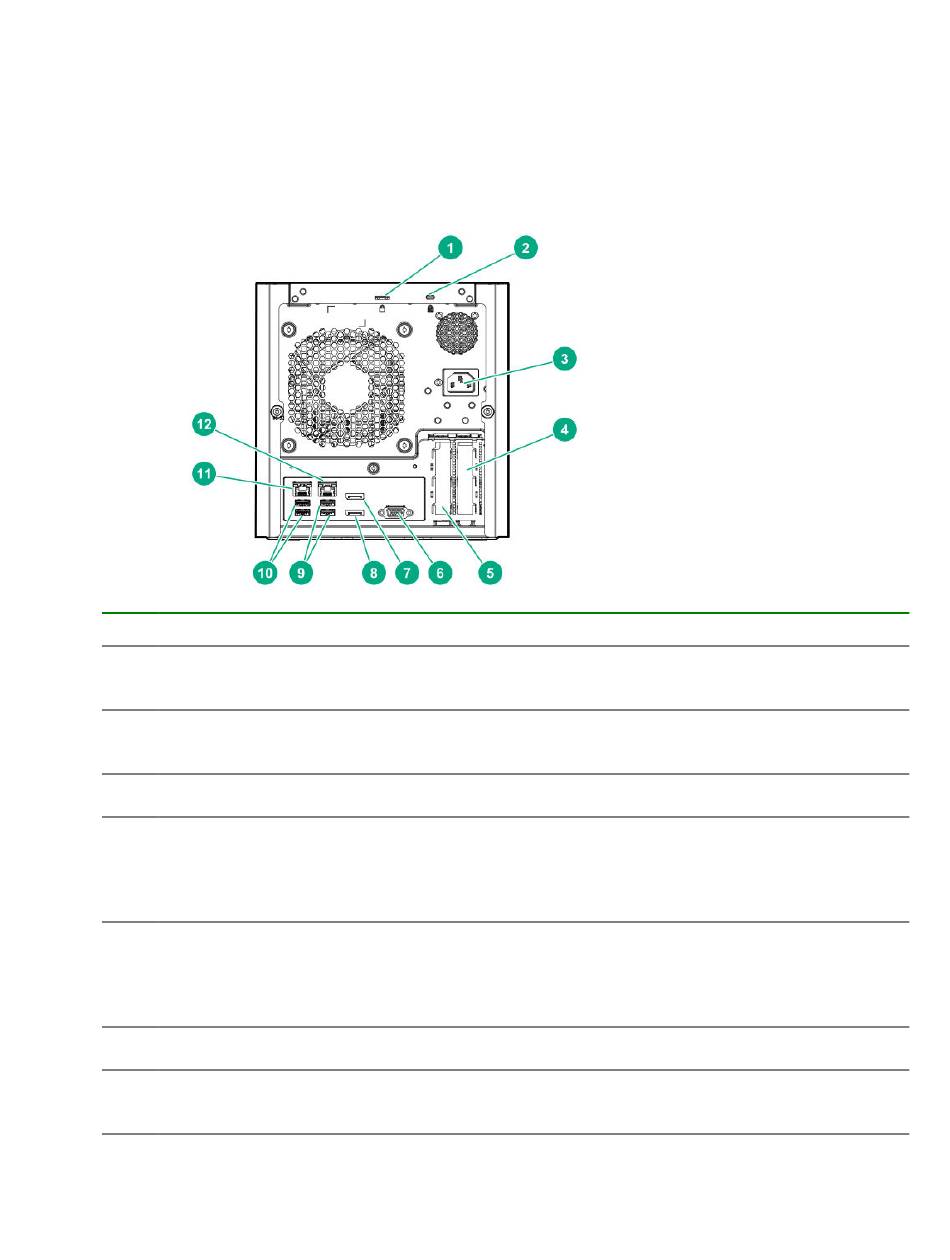

Rear panel components

Item Component
1 Padlock eye
2 Kensington security slot
3 Power jack
4 Expansion slot 2, PCIe3 ×4 (1)
5 Expansion slot 1, PCIe3 ×8 (8, 4,
1)
6 Video port
7 Display port 1
Description
To lock the chassis cover and prevent access to the internal
components, attach a padlock here.
To secure the server to a heavy or immovable object,
connect an anti-theft security cable here.
Connects the power cord.
For additional hardware capabilities, install a compatible
low‑profile PCIe expansion board here. This expansion slot
supports expansion boards with a physical connector link
1
widths of up to ×16.
For additional hardware capabilities, install a compatible
low‑profile PCIe expansion board here. This expansion slot
supports expansion boards with a physical connector link
1
widths of up to ×16.
Connects to an analog VGA monitor or projector.
Connects to a digital display device, such as a high-
resolution set top boxes or TV displays.
2
Table Continued
Rear panel components 83
