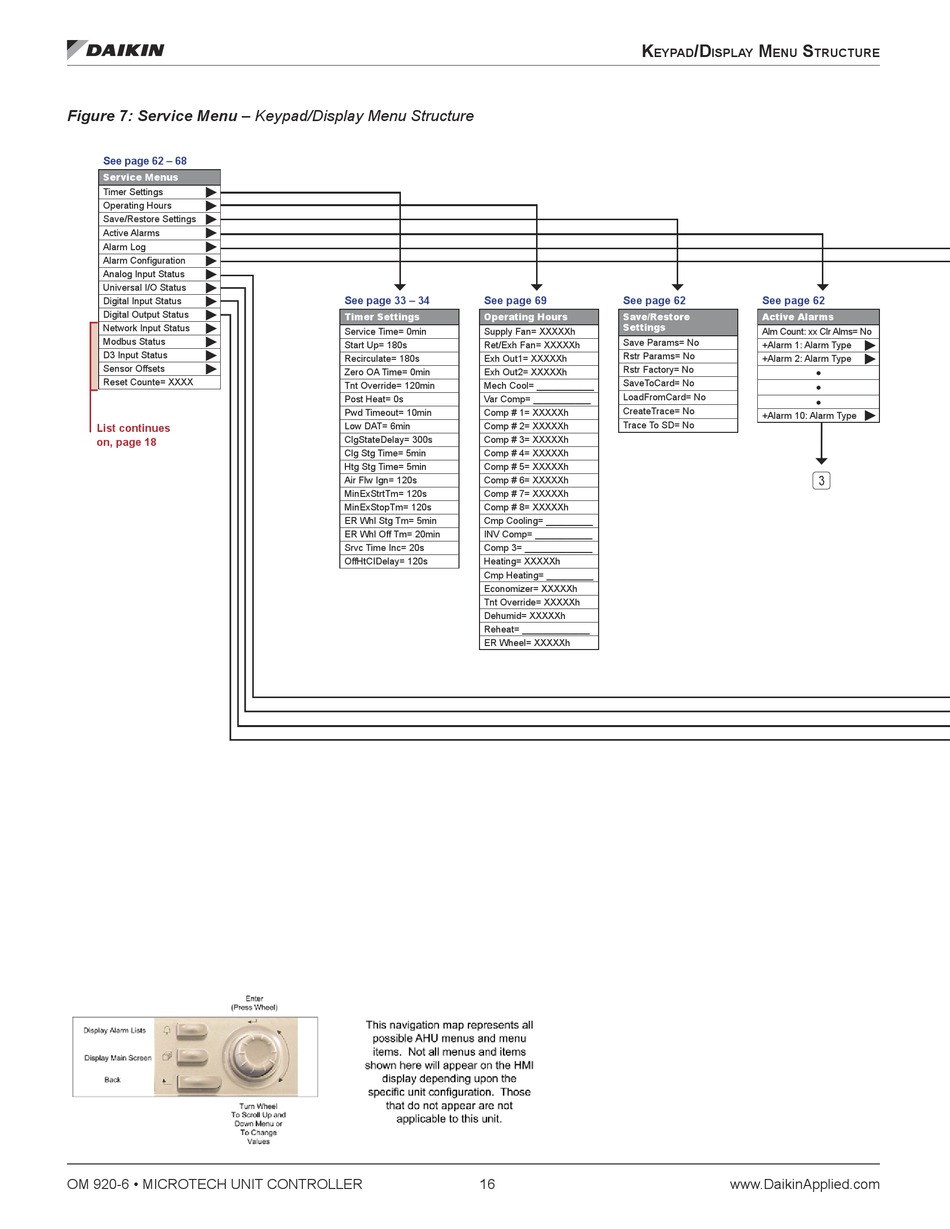

Figure 7: Service Menu – Keypad/Display Menu Structure
See page 62 – 68
Service Menus
►
Timer Settings
►
Operating Hours
►
Save/Restore Settings
►
Active Alarms
►
Alarm Log
►
Alarm Configuration
►
Analog Input Status
►
Universal I/O Status
►
Digital Input Status
►
Digital Output Status
►
Network Input Status
►
Modbus Status
►
D3 Input Status
►
Sensor Offsets
Reset Counte= XXXX
List continues
on, page 18
OM 920-6 • MICROTECH UNIT CONTROLLER
See page 33 – 34 See page 69
Timer Settings Operating Hours
Service Time= 0min Supply Fan= XXXXXh
Start Up= 180s Ret/Exh Fan= XXXXXh
Recirculate= 180s Exh Out1= XXXXXh
Zero OA Time= 0min Exh Out2= XXXXXh
Tnt Override= 120min Mech Cool= ___________
Post Heat= 0s Var Comp= ___________
Pwd Timeout= 10min Comp # 1= XXXXXh
Low DAT= 6min Comp # 2= XXXXXh
ClgStateDelay= 300s Comp # 3= XXXXXh
Clg Stg Time= 5min Comp # 4= XXXXXh
Htg Stg Time= 5min Comp # 5= XXXXXh
Air Flw Ign= 120s Comp # 6= XXXXXh
MinExStrtTm= 120s Comp # 7= XXXXXh
MinExStopTm= 120s Comp # 8= XXXXXh
ER Whl Stg Tm= 5min Cmp Cooling= _________
ER Whl Off Tm= 20min INV Comp= ___________
Srvc Time Inc= 20s Comp 3= _____________
OffHtCIDelay= 120s Heating= XXXXXh
Cmp Heating= _________
Economizer= XXXXXh
Tnt Override= XXXXXh
Dehumid= XXXXXh
Reheat= _____________
ER Wheel= XXXXXh
16
K /d M s
eypad Isplay enu
See page 62 See page 62
Save/Restore Active Alarms
Settings
Alm Count: xx Clr Alms= No
Save Params= No
+Alarm 1: Alarm Type
Rstr Params= No
+Alarm 2: Alarm Type
Rstr Factory= No
SaveToCard= No
LoadFromCard= No
CreateTrace= No
+Alarm 10: Alarm Type
Trace To SD= No
