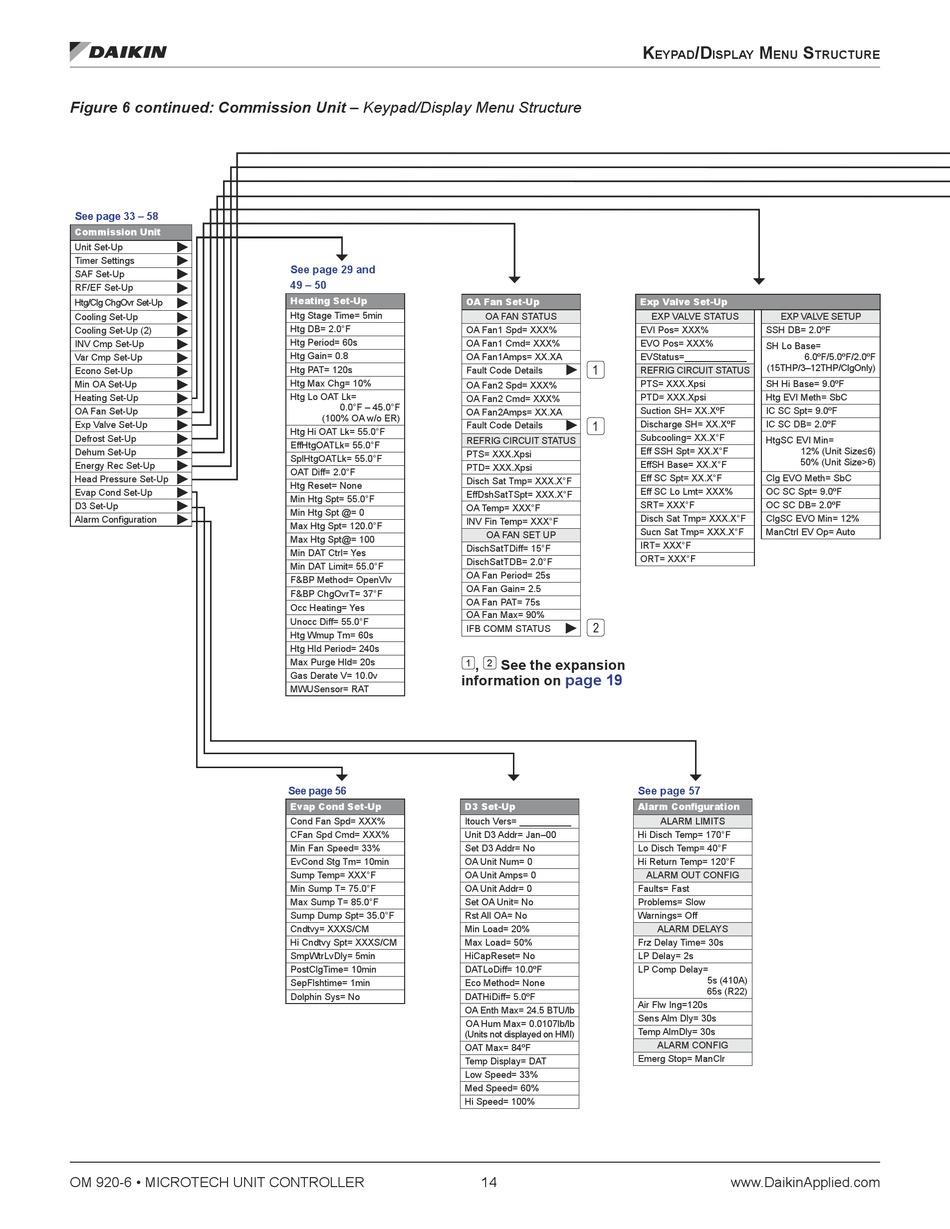

Figure 6 continued: Commission Unit – Keypad/Display Menu Structure
See page 33 – 58
Commission Unit
►
Unit Set-Up
►
Timer Settings
►
SAF Set-Up
►
RF/EF Set-Up
►
Htg/Clg ChgOvr Set-Up
►
Cooling Set-Up
►
Cooling Set-Up (2)
►
INV Cmp Set-Up
►
Var Cmp Set-Up
►
Econo Set-Up
►
Min OA Set-Up
►
Heating Set-Up
►
OA Fan Set-Up
►
Exp Valve Set-Up
►
Defrost Set-Up
►
Dehum Set-Up
►
Energy Rec Set-Up
►
Head Pressure Set-Up
►
Evap Cond Set-Up
►
D3 Set-Up
►
Alarm Configuration
OM 920-6 • MICROTECH UNIT CONTROLLER
See page 29 and
49 – 50
Heating Set-Up
OA Fan Set-Up
Htg Stage Time= 5min
Htg DB= 2 .0°F
OA Fan1 Spd= XXX%
Htg Period= 60s
OA Fan1 Cmd= XXX%
Htg Gain= 0 .8
OA Fan1Amps= XX .XA
Htg PAT= 120s
Fault Code Details
Htg Max Chg= 10%
OA Fan2 Spd= XXX%
Htg Lo OAT Lk=
OA Fan2 Cmd= XXX%
0 .0°F – 45 .0°F
OA Fan2Amps= XX .XA
(100% OA w/o ER)
Fault Code Details
Htg Hi OAT Lk= 55 .0°F
REFRIG CIRCUIT STATUS
EffHtgOATLk= 55 .0°F
PTS= XXX .Xpsi
SplHtgOATLk= 55 .0°F
PTD= XXX .Xpsi
OAT Diff= 2 .0°F
Disch Sat Tmp= XXX .X°F
Htg Reset= None
EffDshSatTSpt= XXX .X°F
Min Htg Spt= 55 .0°F
OA Temp= XXX°F
Min Htg Spt @= 0
INV Fin Temp= XXX°F
Max Htg Spt= 120 .0°F
Max Htg Spt@= 100
DischSatTDiff= 15°F
Min DAT Ctrl= Yes
DischSatTDB= 2 .0°F
Min DAT Limit= 55 .0°F
OA Fan Period= 25s
F&BP Method= OpenVlv
OA Fan Gain= 2 .5
F&BP ChgOvrT= 37°F
OA Fan PAT= 75s
Occ Heating= Yes
OA Fan Max= 90%
Unocc Diff= 55 .0°F
IFB COMM STATUS
Htg Wmup Tm= 60s
Htg Hld Period= 240s
Max Purge Hld= 20s 1, 2 See the expansion
Gas Derate V= 10 .0v
information on
MWUSensor= RAT
See page 56
Evap Cond Set-Up D3 Set-Up
Cond Fan Spd= XXX% Itouch Vers= __________
CFan Spd Cmd= XXX% Unit D3 Addr= Jan–00
Min Fan Speed= 33% Set D3 Addr= No
EvCond Stg Tm= 10min OA Unit Num= 0
Sump Temp= XXX°F OA Unit Amps= 0
Min Sump T= 75 .0°F OA Unit Addr= 0
Max Sump T= 85 .0°F Set OA Unit= No
Sump Dump Spt= 35 .0°F Rst All OA= No
Cndtvy= XXXS/CM Min Load= 20%
Hi Cndtvy Spt= XXXS/CM Max Load= 50%
SmpWtrLvDly= 5min HiCapReset= No
PostClgTime= 10min DATLoDiff= 10 .0ºF
SepFlshtime= 1min Eco Method= None
Dolphin Sys= No DATHiDiff= 5 .0ºF
OA Enth Max= 24 .5 BTU/lb
OA Hum Max= 0 .0107lb/lb
(Units not displayed on HMI)
OAT Max= 84ºF
Temp Display= DAT
Low Speed= 33%
Med Speed= 60%
Hi Speed= 100%
K
eypad
Exp Valve Set-Up
OA FAN STATUS EXP VALVE STATUS
EVI Pos= XXX%
EVO Pos= XXX%
EVStatus=____________
►
1
REFRIG CIRCUIT STATUS
PTS= XXX .Xpsi
PTD= XXX .Xpsi
Suction SH= XX .XºF
►
1
Discharge SH= XX .XºF
Subcooling= XX .X°F
Eff SSH Spt= XX .X°F
EffSH Base= XX .X°F
Eff SC Spt= XX .X°F
Eff SC Lo Lmt= XXX%
SRT= XXX°F
Disch Sat Tmp= XXX .X°F
Sucn Sat Tmp= XXX .X°F
OA FAN SET UP
IRT= XXX°F
ORT= XXX°F
► 2
page 19
See page 57
Alarm Configuration
ALARM LIMITS
Hi Disch Temp= 170°F
Lo Disch Temp= 40°F
Hi Return Temp= 120°F
ALARM OUT CONFIG
Faults= Fast
Problems= Slow
Warnings= Off
ALARM DELAYS
Frz Delay Time= 30s
LP Delay= 2s
LP Comp Delay=
Air Flw Ing=120s
Sens Alm Dly= 30s
Temp AlmDly= 30s
ALARM CONFIG
Emerg Stop= ManClr
14
/d M s
Isplay enu TruCTure
EXP VALVE SETUP
SSH DB= 2 .0ºF
SH Lo Base=
6 .0ºF/5 .0ºF/2 .0ºF
(15THP/3–12THP/ClgOnly)
SH Hi Base= 9 .0ºF
Htg EVI Meth= SbC
IC SC Spt= 9 .0ºF
IC SC DB= 2 .0ºF
HtgSC EVI Min=
12% (Unit Size≤6)
50% (Unit Size>6)
Clg EVO Meth= SbC
OC SC Spt= 9 .0ºF
OC SC DB= 2 .0ºF
ClgSC EVO Min= 12%
ManCtrl EV Op= Auto
5s (410A)
65s (R22)
