1 – Common

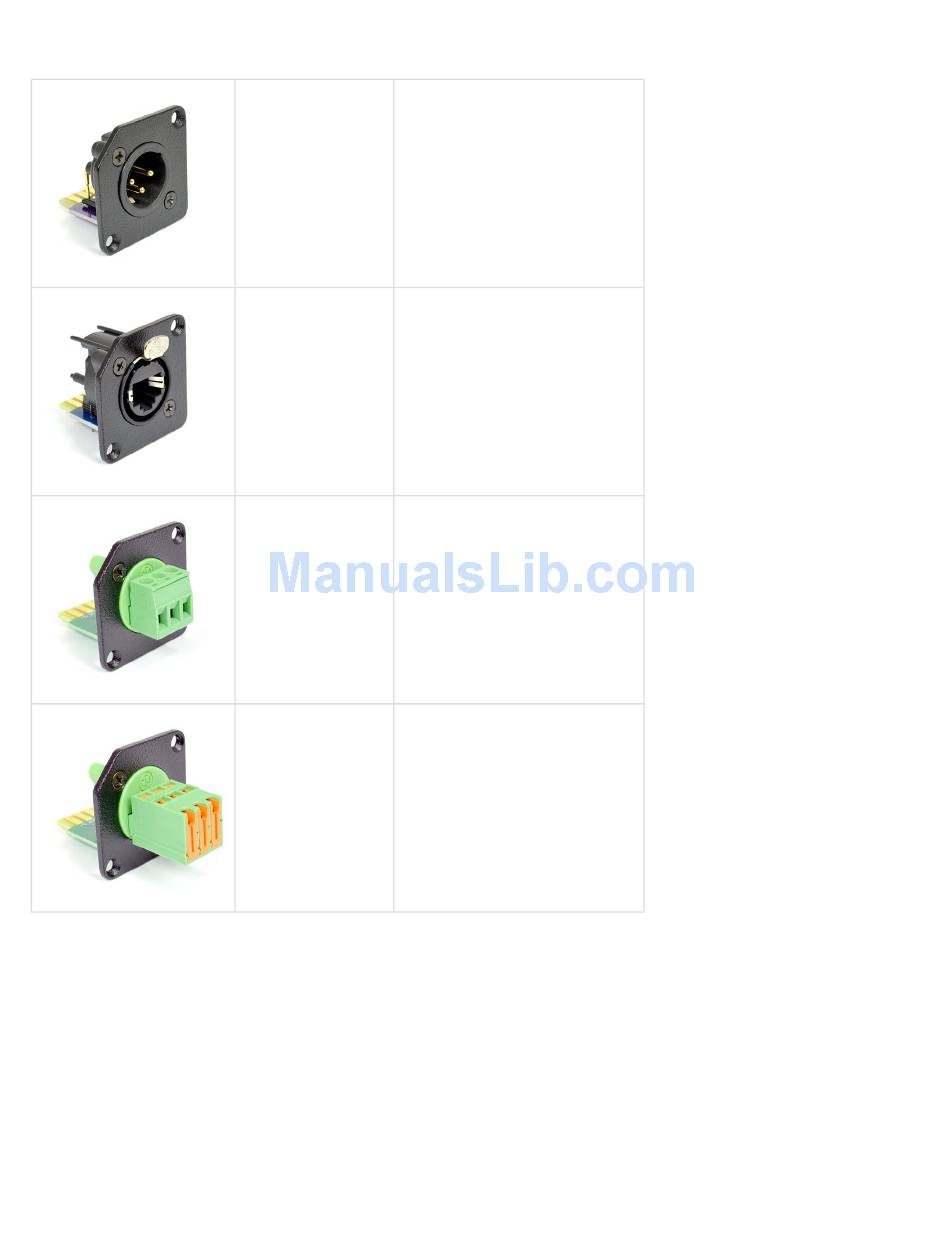

MOD-X5M
2 – Data -
3-Pin Male XLR
3 – Data +
1 – Data + (White/Orange)
2 – Data – (Orange)
3 – NC (White/Green)
4 – NC (Blue)
MOD-RJ45
5 – NC (White/Blue)
Ethercon RJ45
6 – NC (Green)
7 – Common (White/Brown)
8 – Common (Brown)
* Colors use T-568B Standard
1 – Data -
MOD-TB-ST
2 – Data +
Screw Terminals
3 – Common
1 – Data -
MOD-TB-IDC
2 – Data +
IDC Terminals
3 – Common
