Digital Outputs

CueServer 2 provides up to eight low-voltage digital outputs. These outputs are designed for connecting
LED indicators, small relays, buzzers, pilot lights, and most anything that can be powered from a small DC
voltage.
Each digital output can be turned on or off as a response to any of the available CueScript actions and/or
rules.
Each output is a TTL "short-to-ground" output. When the output is "on", its pin shorted-to-ground. When an
output is "off", its pin is an open connection. This means that the output is used to make a complete circuit
through the connected accessory device (like an indicator or relay) to ground; the other side of the
accessory needs to be connected to a positive voltage.
For convenience, an auxiliary 5VDC output is provided with the digital outputs. This voltage source can
optionally be used to provide power to LED indicators, small relays, etc. The maximum current available at
the Aux +5VDC Output is 200mA.

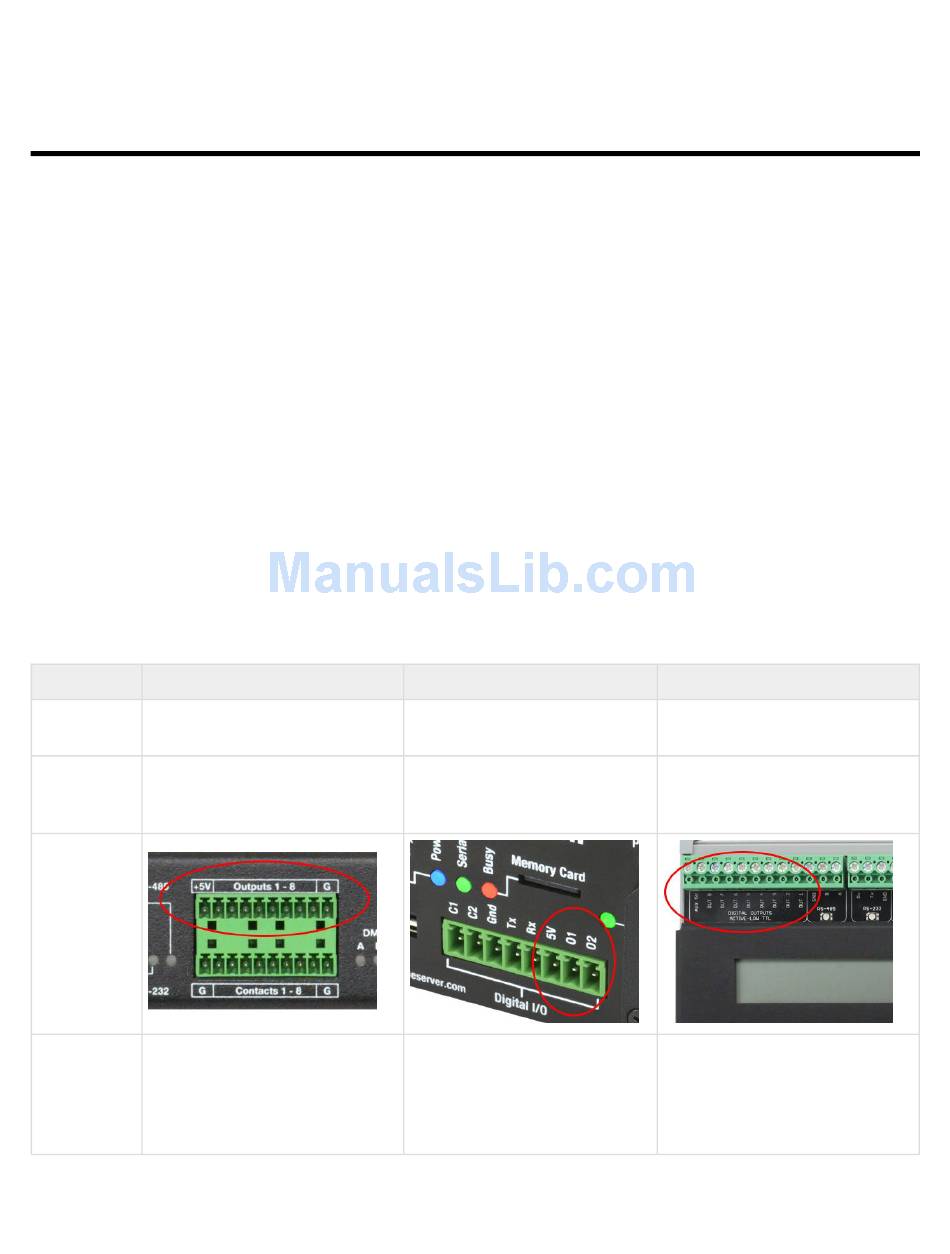

Specifications
CS-900
Digital
8
Outputs
10-Position Pluggable Terminal
Connector
Block
Pinout 1 = Aux +5VDC Output
2 = Output 1
3 = Output 2
4 = Output 3
5 = Output 4
CS-920
2
8-Position Pluggable Terminal
Block
(shared with other I/O)
1 = Contact 1
2 = Contact 2
3 = Common (Ground)
4 = RS-232 Transmit
5 = RS-232 Receive
CueServer 2 User's Manual - 18.5.18
CS-940
8
12-Position Pluggable Terminal
Block
(shared with RS-485 port)
1 = RS-485 "A"
2 = RS-485 "B"
3 = RS-485 Common
4 = Output 1
5 = Output 2
