Power Input

All models of CueServer 2 can be powered by a 12 to 24 VDC Class 2 input.
Although the power requirements are similar for the various models, their connectors and current
requirements are different. The rack-mounted CS-900 and the miniature CS-920 both have a standard DC
power input jack. The surface-mounted CS-940 uses screw terminals that are suitable for hardwire
connections to DC power.

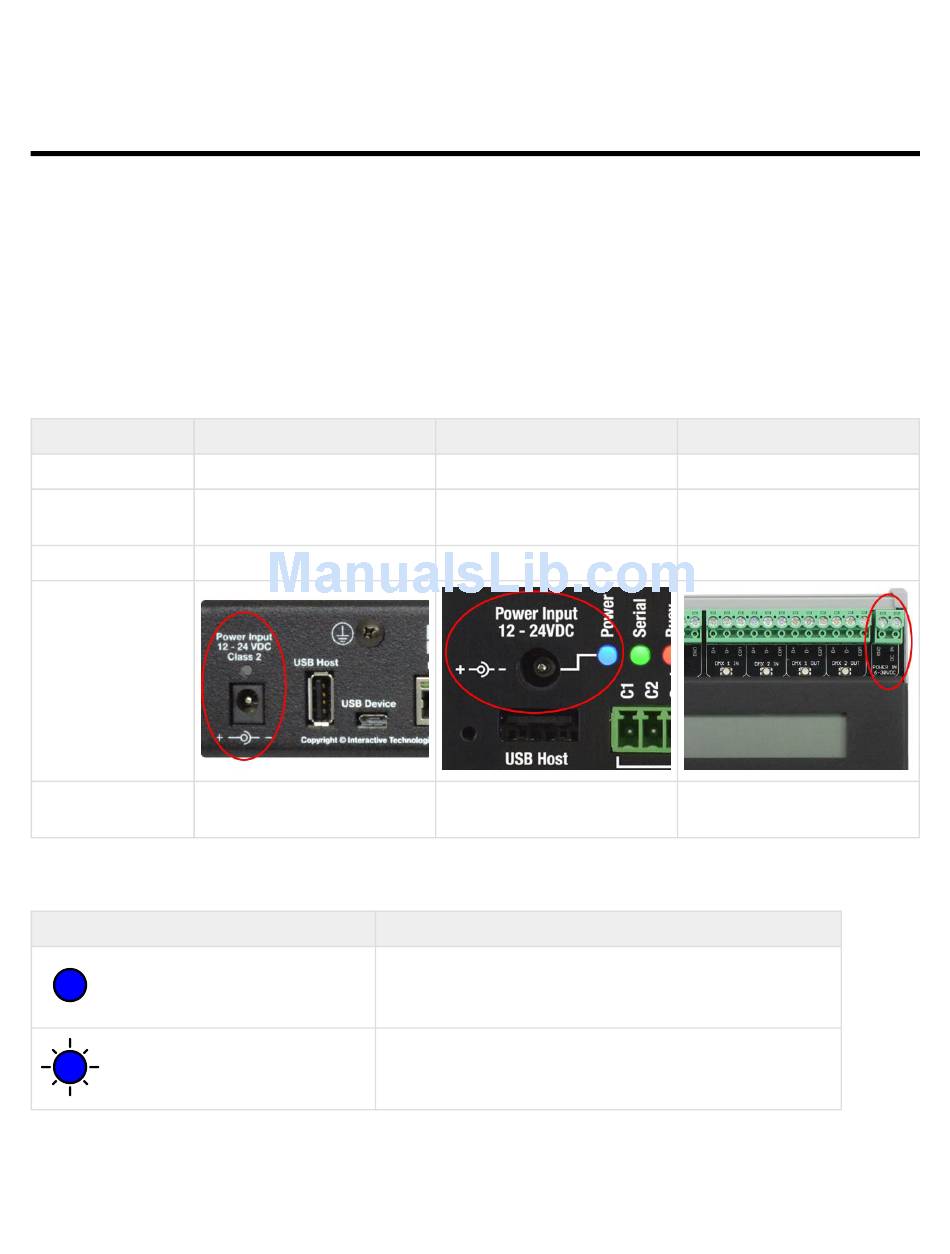

Specifications
CS-900
Power Input 12-24 VDC
Minimum Power
9 Watts
Supply Wattage
Connector 2.1mm DC Power Jack
Center = DC Input (V+)
Pinout
Barrel = Ground
Indicators
Color & Pattern
Solid Blue
Slowly Flashing Blue
CS-920
12-24 VDC
7 Watts
2.1mm DC Power Jack
Center = DC Input (V+)
Barrel = Ground
Description
Power in on, all systems normal
Device is in the process of starting up
CueServer 2 User's Manual - 18.5.18
CS-940
12-24 VDC
8 Watts
Screw Terminals
1 = DC Input (V+)
2 = Ground
