Playbacks

Overview
The Playbacks View shows the current state and properties of the Playback Fader layers of the CueServer.
This view is arranged in a stack of Playbacks. Each Playback has three panes, the left-hand pane shows
what is currently loaded in the Playback, the center pane shows what's coming up next, and the right-hand
pane shows additional properties for the Playback. While cues are running and/or channels are fading, bar
graphs appear that show the progress of the cues, fades, streams, etc.

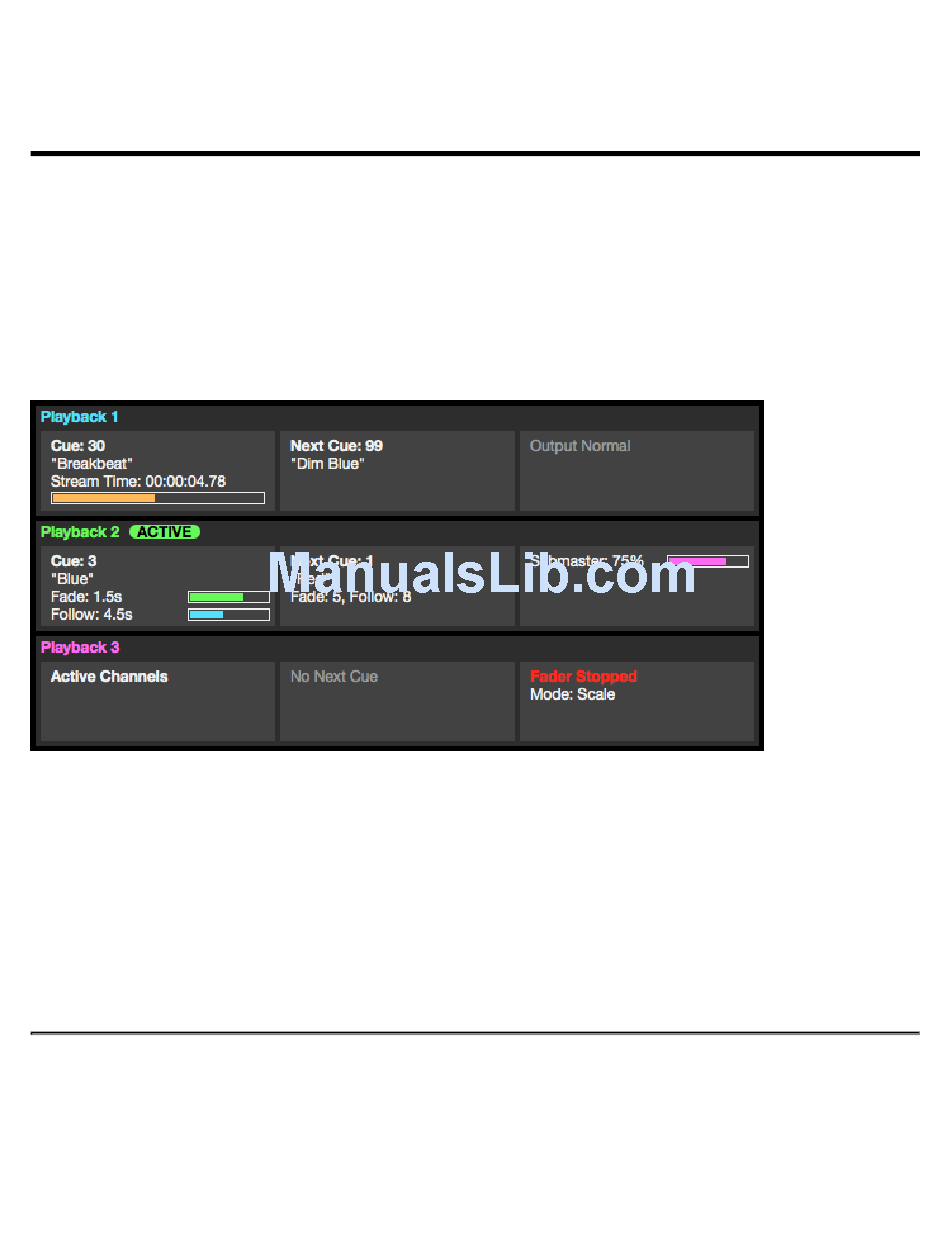

In the example above, Playback 1 is currently playing back Cue 30, which is a streaming cue called
"Breakbeat". It is currently 4.78 seconds into the stream. The next cue in Playback 1 is Cue 99, which is
called "Dim Blue". Playback 2 is the active playback, it is currently fading into Cue 3 "Blue". The fade has
1.5 seconds remaining, and a follow timer is running with 4.5 seconds remaining. The next cue in Playback
2 is Cue 1 "Red", and that cue will have a Fade Time of 5 seconds, and a Follow Timer of 8 seconds. Also,
Playback 2's submaster has been lowered to 75%. Finally, Playback 3 has manually set "active" DMX
channels in it and no next cue. Playback 2 is "stopped", meaning that fade and follow timing is disabled, and
it's layer mode is set to "Scale".
The Current Pane (Left Side)
The pane on the left-hand side of each Playback shows what is currently loaded in the Playback.
