Act on Changes Trigger

When a DMX Trigger is set to the Act on Changes type, any time the incoming DMX value changes, a
CueScript action is executed.
This type of trigger is best used to create custom actions that take the input value of a DMX channel and
perform some kind of operation upon it. For example, a trigger of this type can output a string via a serial
port or by UDP messages that passes the DMX channel value to another device. Another example would be
to control a group of channels from the input of a single channel.

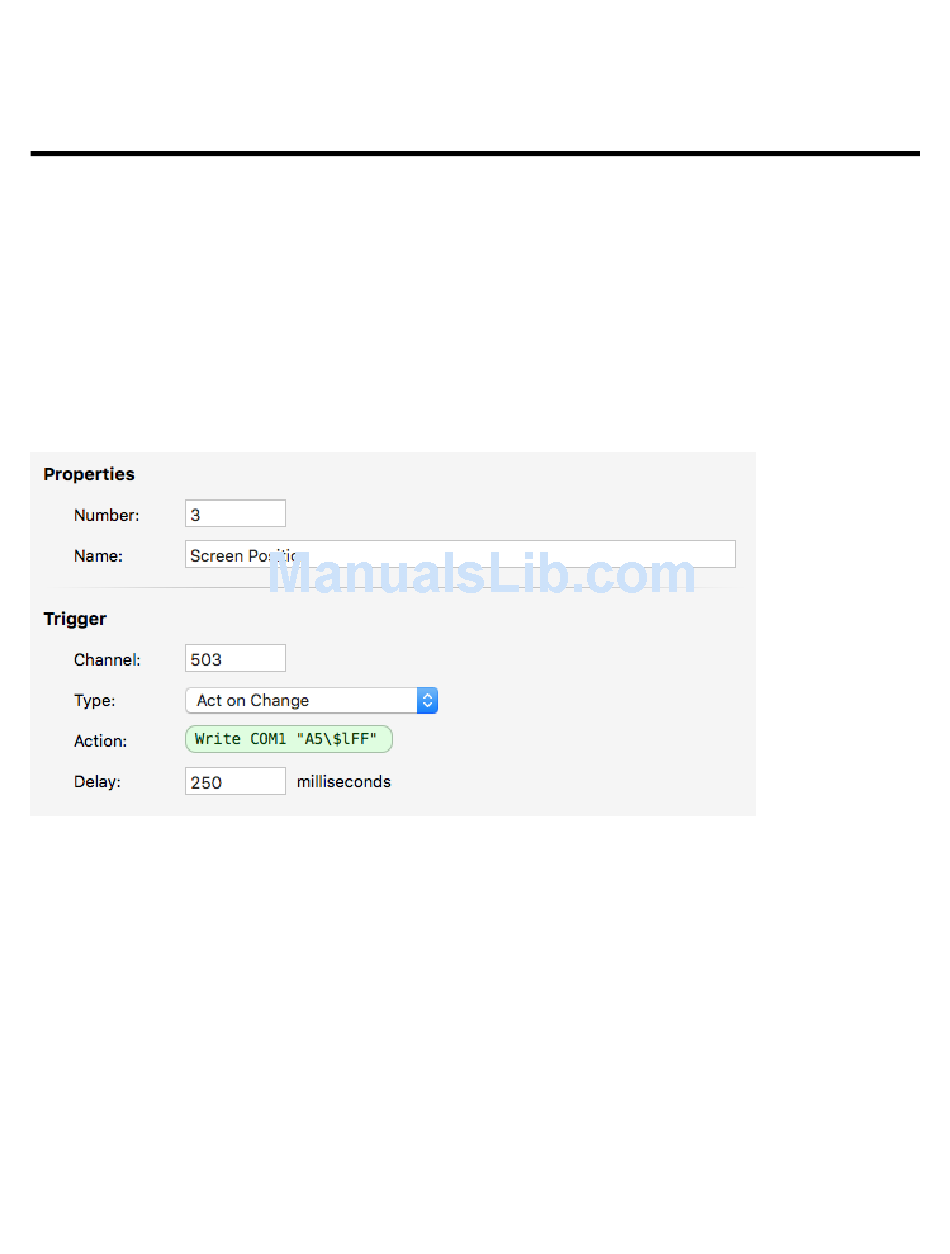

When editing an Act on Changes trigger, the editor panel will appear similar to this example:
The following properties can be set for an Act on Changes trigger:
• Properties
◦ Number – The numerical order of the trigger in the list. This number can be changed to replace
an existing trigger or to organize triggers numerically.
◦ Name – A name for the trigger. This field can be freely set to any text.
• Trigger
◦ Channel – The channel that is being observed for the trigger. A value from
entered into this field. The channel number corresponds to the global channel number within
CueServer, not a local channel number in a single universe.
◦ Type – The type of the DMX Trigger. Set to Act on Changes for this type of trigger.
CueServer 2 User's Manual - 18.5.18
to may be
1 16384
